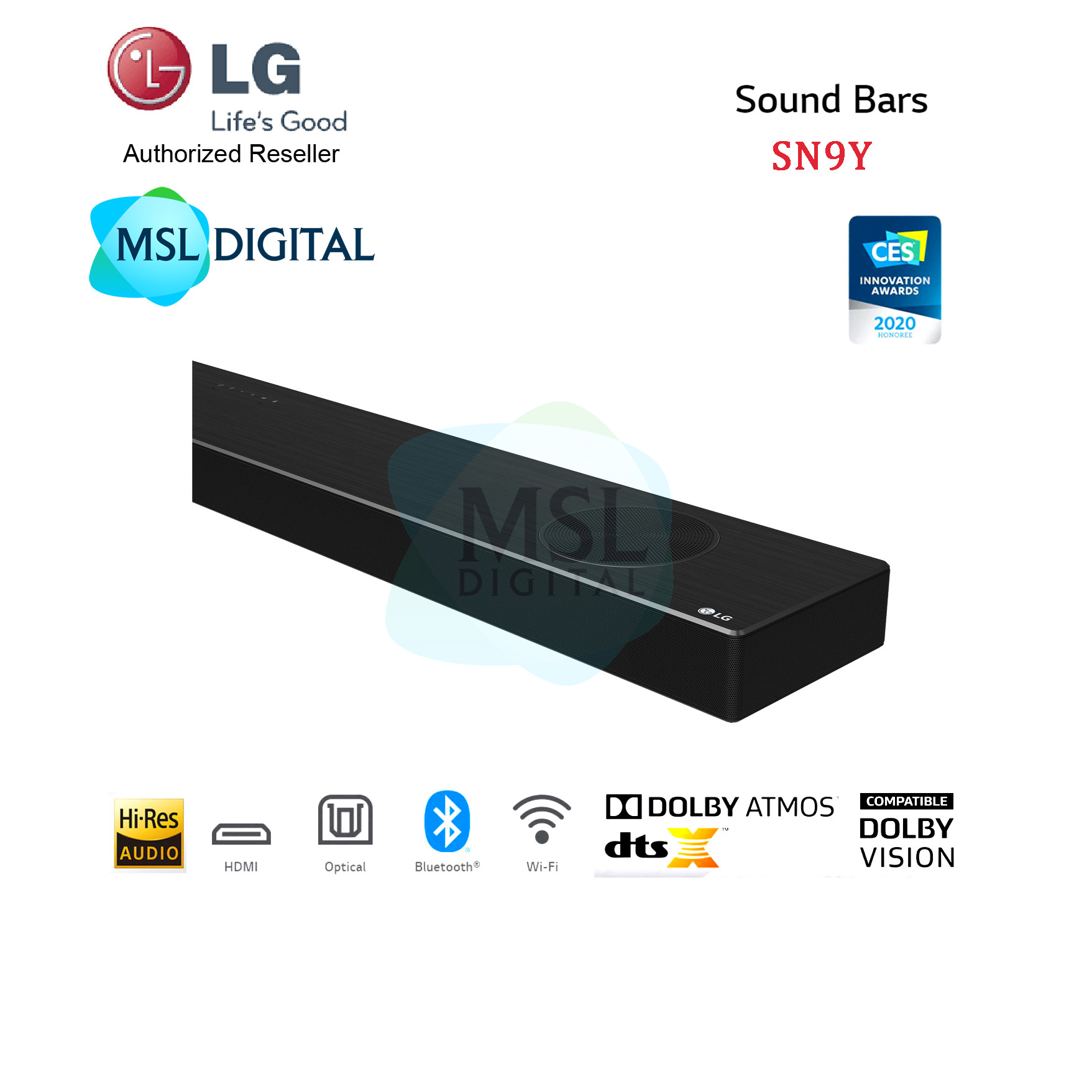

LG SN9Y 520W 5.1.2ch Hi-Res Dolby Atmos Sound Bar

1 Year Official LG Malaysia Warranty

******************************************

Product Highlights:

• with MERIDIAN

• Dolby Atmos

• DTS:X

• 5.1.2 ch

• High Resolution Audio

• eARC

Speciation:

SIZE(W X H X D, MM)

• Main (w/ Foot )

  1220 x 57 x 145

  Matching TV size (`20 New)

  55 inch ↑

• Addtional Foot (H) mm

  No

  Wireless Box

  No

• Rear Speaker

  No

  Subwoofer

  221.0 x 390.0 x 312.8

MATERIAL

• Main – Front / Top / Bottom

  Metal Grille/Mold/Mold

  Wireless Box – Front / Body

  No / No

• Wireless Speaker – Front / Body

  No / No

  Subwoofer – Front / Body

  Jersey / Wood

WEIGHT(KG)

• Main

  6.3Kg

  Wireless Box

  No

• Rear Speaker (2EA)

  No

  Subwoofer

  7.8Kg

• Gross Weight

  18.3Kg

CARTON BOX

• Size (W x H x D) mm

  1286 x 284 x 467

  Type

  TipOn

• Color

  White(1)+Yellow

NUMBER OF CHANNELS

• Number of channels

  5.1.2ch

NO. OF SPEAKER UNIT

• Number of speakers

  11EA

CONNECTIVITY_GENERAL

• Audio Input (3.5Ø)

  No

  Optical

  Yes (1)

• HDMI 1.4 (HDCP 1.4) – In / Out

  No / No

  HDMI 2.1 (HDCP 2.3) – In / Out

  Yes (1) / Yes (1)

• HDR10 / HDR10+

  Yes / No

  Dolby Vision

  Yes

• USB

  Yes

  FM Radio

  No

CONNECTIVITY_WIRELESS

• Bluetooth Version

  5.0

  Bluetooth Codec – SBC / AAC

  Yes / No

• Wi-Fi (2.4G / 5G)

  Yes

  Wireless Rear ready

  Yes (1:1)

DISPLAY INFORMATION

• Display Type

  LCD (5 char.)

  LED Indicator Color

  No

• AI Indicatior

  No

HI-RESOLUTION AUDIO

• Sampling – "24bit/192kHz" / "24bit/96kHz"

  Yes / Yes

  Upbit/upsampling – "24bit/192kHz" / "24bit/96kHz"

  Yes / No

SOUND EFFECT

• AI Sound Pro

  Yes

  Standard

  Yes (w/ Meridian)

• Music

  Yes

  Bass Blast / Bass Blast +

  Yes

• Movie (Dolby Surround)

  Yes

  Dolby ATMOS

  Yes

• DTS:X

  Yes

  DTS Virtual:X

  No

SOUND CONTROL

• User EQ – RCU / App

  Yes / Yes

  Night Time On/Off – RCU / App

  No / Yes

• Dynamic Rage On/Off – RCU / App

  No / Yes

  Auto Volume Leveler On/Off – RCU / App

  No / Yes

• Auto Sound Engine (Default)

  No

  SFX (Default)

  No

• AI Room Calibration (2 MIC In) – App

  Yes

FM RADIO SUPPORTED

• Type

  No

  FM / RDS

  No

• Frequency Range

  No

  Station Preset

  No

• Preset Memory / Erase

  No

  Information Display (RDS – PTY, PS, CT, RT)

  No

GOOGLE SUPPORTED

• Google Assistant Built In (Controller, 2 MIC In)

  No

  Works with the Google Assistant (Controllee)

  Yes

• Chromecast

  Yes

  Google Multi Zone (One Source → Multi Speaker)

  Yes

• Google Fast Pairing

  No

CONVENIENCE

• Remote App – iOS / Adroid OS

  Yes / Yes

  Smart Phone File Playback

  Yes

• EZ setup (BLE)

  Yes

  NSU / FOTA

  Yes / No

• Control with your TV Remote (Vol+/-, Mute)

  Yes

  Sound Sync – Bluetooth(LG TV) / Optical

  No / Yes

• Auto Power On/Off – Bluetooth (LGTV) / Optical

  No / Yes

  A/V Sunc (0~300ms) – RCU / APP

  No / Yes

• HDMI SIMPLINK

  Yes

  HDMI Audio Return Channel (ARC)

  Yes

• HDMI Audio Return Channel (e-ARC)

  Yes

  Woofer Level (-15 ~ 6dB, 1dB/Step)

  Yes

• Channel Level (-6 ~ 6dB, 1dB/Step) – Top / Center / Surround / Rear / Rear Top

  Yes / Yes / Yes / Yes / No

  Mute

  Yes

• Auto Dimmer

  Yes

  Sleep Timer – RCU / App

  No / Yes

• USB Host / Charge

  Yes / No

  Built-in Music

  Yes (2)

• Bluetooth Stand-By

  No

  Auto Detect (Bluetooth)

  Yes

AUDIO FORMAT(BITSTREAM)

• LPCM

  Yes

  Dolby Atmos

  Yes

• Dolby TrueHD

  Yes

  Dolby Digital Plus

  Yes

• Dolby Digital

  Yes

  DTS:X

  Yes

• DTS-HD Master Audio

  Yes

  DTS-HD High Resolution

  Yes

• DTS Digital Surround

  Yes

  AAC / AAC+

  Yes

FILE FORMAT

• FLAC – C4A / USB

  Yes / Yes

  OGG – C4A / USB

  Yes / Yes

• WAV – C4A / USB

  Yes / Yes

  MP3 – C4A / USB

  Yes / Yes

• WMA – C4A / USB

  No / No

  AAC – C4A / USB

  Yes / Yes

POWER_MAIN

• SMPS

  100~240V, 50/60Hz

  Power Off Consumption

  0.5W ↓

• Power Consumption

  70W

POWER_REAR SPEAKER/WIRELESS BOX

• Type (SMPS)

  No

  Power Off Consumption

  No

• Power Consumption

  No

  Wireless Frequency

  No

POWER_SUBWOOFER

• Type (SMPS)

  100~240V, 50/60Hz

  Power Off Consumption

  0.5W ↓

• Power Consumption

  38W

  Wireless Frequency

  5GHz

ACCESSORY_MANUAL

• Web Manual (File)

  Yes (Full)

  Built-in Manual (Book) (Simple or Full)

  Yes (Simple)

• Wall Mount Guide

  Yes

  Wireless Speaker Reset Guide

  No

• Open Source – Yes (Full or Simple) / No

  Yes (Full)

  Warranty Card

  Yes

ACCESSORY_REMOTE CONTROL

• Model Name

  MA7 (`19 Modify)

  Battery (Size)

  AAA x 2

• Battery Built-in

  Yes

ACCESSORY_OTHERS

• Rear Speaker Cable

  No

  Optical Cable

  Yes

• Wall Mount Bracket

  Yes

  Cable Management (Tie)

  No

• Additioanl Foot

  No

  FM Antenna

  No

In The Box :

1 X Power Adapter Cable

1 X Remote Controller

1 X Information Book
