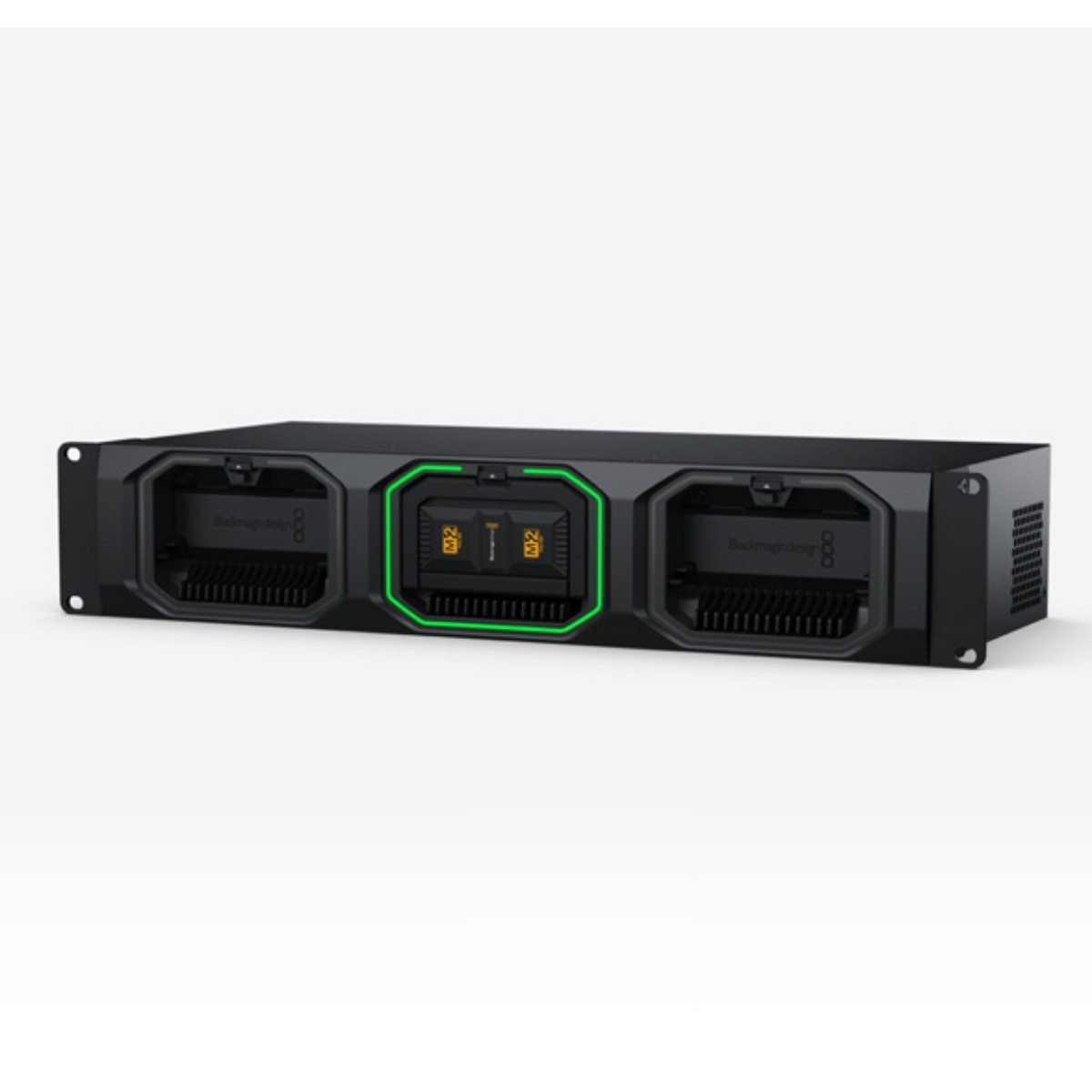

Blackmagic Design Media Dock for URSA Cine 12K

RM11,269.00

  • Mounts up to 3 Media Modules

  • Offload from Multiple URSA Cine Cameras

  • 4 High-Speed 10G Ethernet Ports

  • USB-C Computer Connection

  • HDMI Output for Monitoring

5 in stock

SKU: BMD-URSA-MediaDock Category: Tag:
Blackmagic Design

1-Year Official Warranty by Blackmagic Design Malaysia

***************************************************************

Blackmagic Design Media Dock for URSA Cine 12K



Description

Blackmagic Media Dock accelerates your post production workflow by enabling high speed network sharing and upload from up to 3 Blackmagic Media Modules from Blackmagic URSA Cine cameras. 4 x 10G Ethernet ports allow 4 separate edit stations to connect and edit directly. Blackmagic Media dock also has Ethernet over USB-C, dual AC power inputs for redundancy and an HDMI output for live monitoring of media in real time on a TV or monitor.



Connections

Interface: 3 x removable and hot-swappable Blackmagic Media Modules.

10G Ethernet Ports: 4 x 10G BASE-T

USB-C Port: 1 x USB 3.0 (up to 5Gb/s). Supports Ethernet Over USB

HDMI Monitor Outputs: 1

Computer Interface: USB-C or Ethernet for shared file access, configuration and software updates.



File Sharing Protocol

Protocol: SMB

Computer Connections: 50 max.



Cloud Synchronization

Compatible Services: Dropbox, Google Drive



Storage

Storage Type: Up to 3 Blackmagic Media Modules.

External Storage Format: Blackmagic (formatted in camera)



Displays

HDMI Monitor Out Standards: 1080p50, 1080p59.94, 1080p60

Monitor Out Displays :Device Name, storage capacity and use, Cloud Sync status, User Activity, Hardware Status, storage map, network data rate graph.

Status Indicator: LED bezel indicator lights around media module bays.



Device Control

External Control: USB-C or Ethernet for configuration and software updates.



Software

Software Included: Blackmagic Cloud Setup Utility, Blackmagic Proxy Generator Lite, Internal software upgrade via Blackmagic Cloud Setup using USB-C port



Operating Systems

Mac 14.3 Sonoma or later.

Windows 10, 64-bit.
Windows 11.



Power Requirements

Power Supply: Internal 100 – 240V AC 50/60Hz with IEC C14 mains input.

Power Usage: TBA



Physical Installation

2 rack units.



Environmental Specifications

Operating Temperature: 0° to 40° C (32°to 104° F)

Storage Temperature: -20° to 60° C (-4° to 140° F)

Relative Humidity: 0% to 90% non-condensing



What's Included

Blackmagic Media Dock

Welcome wallet with QR code for software download
