1-Year Official Warranty by Yololiv Malaysia
*********************************
Yololiv Yolobox Extreme
[ DESCRIPTION ]

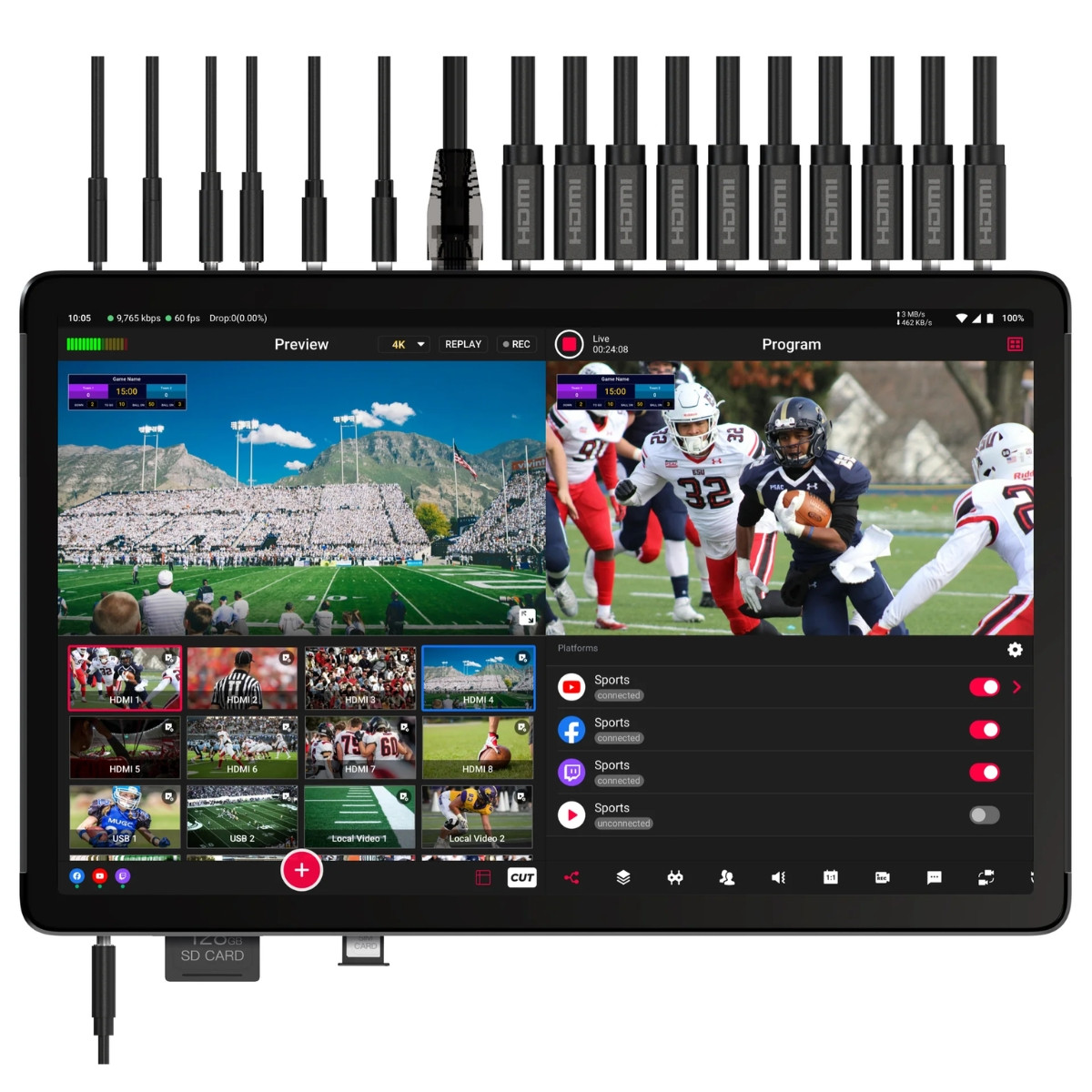

The YoloBox Extreme is here to revolutionize live streaming and video production.
Designed for videographers, professionals and creators who demand the best-in-class performance, this next-generation device combines industry-leading upgrades with YoloLiv’s signature all-in-one convenience.
From its 8 HDMI inputs, 2 assignable HDMI output to its 11.2-inch OLED touchscreen(800-1,000 nits of brightness), 4K streaming, 4K ISO recording, Qualcomm 8 Gen2 processor, up to 10-hour battery power, up to 8 NDI-HX inputs, YoloBox Extreme delivers unmatched power, flexibility, and ease of use for any production scenario.
[ TECH SPECS ]
- Input Power: 9V / 12V / 15V⎓3A
- Power Consumption: 45W
- Power Supply: USB Type-C
- USB Rated Output: USB-A:5V/1A
- Battery Capacity: 10000mAh
- Dimensions: 264*167*29mm
- Power Consumption: ＜45W
- Monitor Screen Size: 11.2inch 2K OLED; Resolution: 2560×1530; Brightness: 450nits ( ≈ LCD 800-1000nits); Frequency: Fre =120Hz; Contrast ratio (1500:1); Viewing Angle (full viewing Angle); NTSC 108%
- Local Video Inputs: HDMI USB-A
- Video Over Ethernet: RTMP/RTMPS/SRT/NDI/RTSP

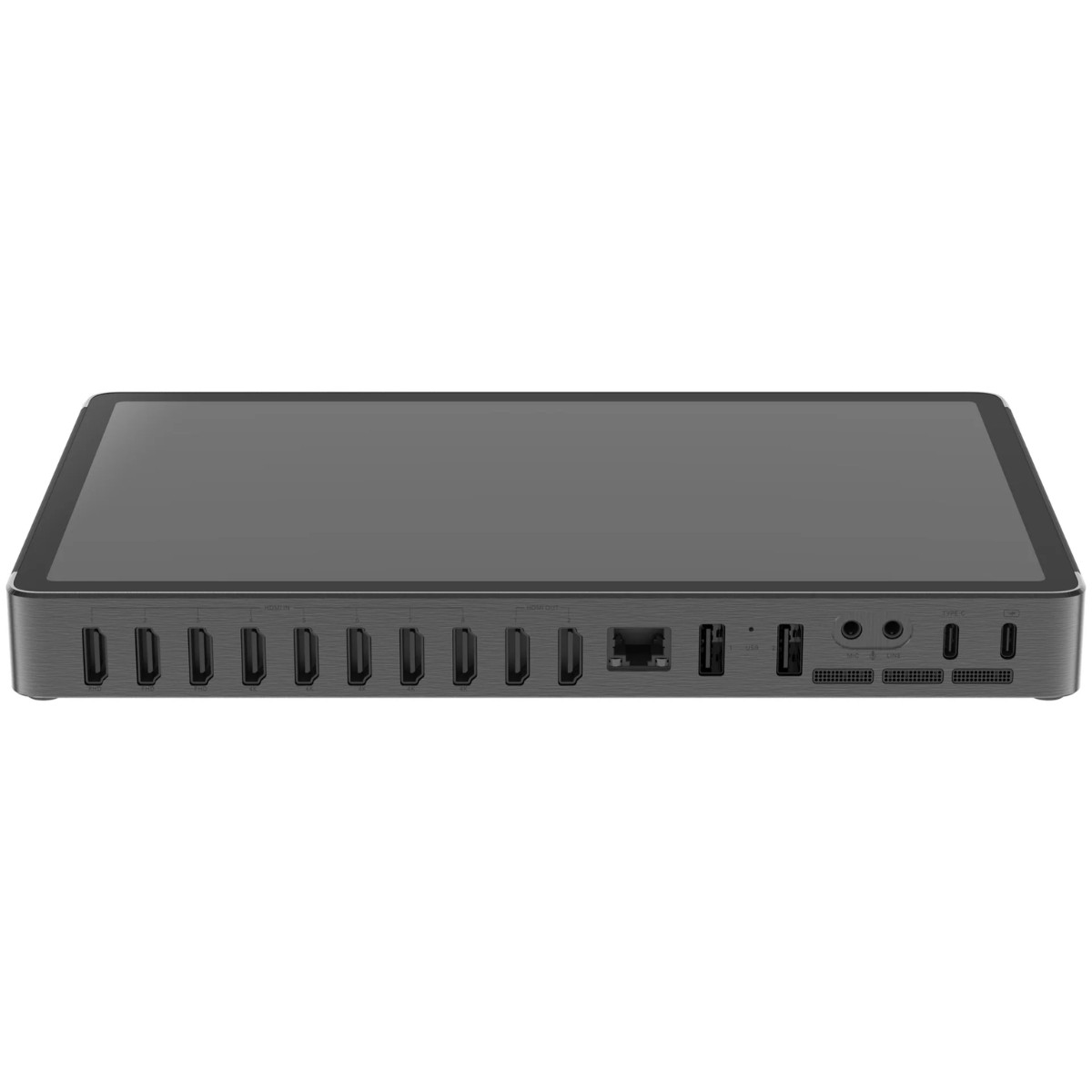

- Video Input Connectors: HDMI, USB-A, RJ-45, USB Type-C
- Video Input Aspect Ratios: 16:9, 4:3, 1:1
- Video Input Deinterlacing: No
- Live Broadcast Video Input Resolution: 480p/720p/1080p(up to 60fps)/4Kp60
- Video Encoded Format: H.264 H.265
- Video Processing Bitrate Control: CQ, VBR, CBR
- Hardware-accelerated Video Encoding: Optional
- Video Output Signal Types: FLV-RTMP, HDMI, UVC
- Video Output Connectors: HDMI OUT, USB-C
- Video Output Streaming Protocols: RTMP, RTMPS, MJPEG, SRT
- Live Broadcast Video Output Resolution: 480p/720p/1080p(Up to 60fps)/4Kp60
- Analog Audio Input Connectors: Line In; Mic In; 3.5mm
- Digital Audio Outputs: USB; HDMI; RTMP (From internet); Local video (From SD card)
- Digital Audio Input Connectors: USB-A, HDMI, USB-C
- Audio Input Mute: Yes
- Audio Input Format: 32KHZ/44.1KHZ/48KHZ :16bit
- Audio Encoded Format: (AAC)44.1K/48KHZ 2Ch 16bit
- Analog Audio Output: 3.5mm Headphone Jack
- Digital Audio Outputs: HDMI Audio (Embedded); USB Audio (Embedded)
- Record Formats: MP4
- Wi-Fi: 2.4G/ 5G (Support WiFi6/WiFi7)
- USB Communication Standard: USB 2.0 and USB 3.0
- Ethernet Data Rate: 10/100/1000m, Half/full Duplex With Autodetect
- SIM Card Size: Nano-SIM Card
- 4G Network: 4G Network Countries & Frequency Band For Users: (EU：Variant for EMEA/India/Korea/Taiwan/SouthAsia/Latin/America/Australia/New Zealand)Users:B1//B3/B7/(B8) Notes：Thailand B1/B3
- Please note that the certification of Yolobox Extreme is in line with the mainstream open 4G band requirements of operators in this country or region. For details, please refer to the approval report of this country or region.
- SD Card Format: FAT32(Under 128G); NTFS; EX-FAT
- Operating Temperature: 0℃-40℃
- Operating Humidity: 15%-85%; No Condensation
- Country of Origin: Made in China
