Saramonic K9 Dual-Channel Digital UHF Wireless Audio System for Filmmakers

RM5,199.00

  • Digital UHF
  • Industry-Leading Dynamic Range
  • Hidden Buttons

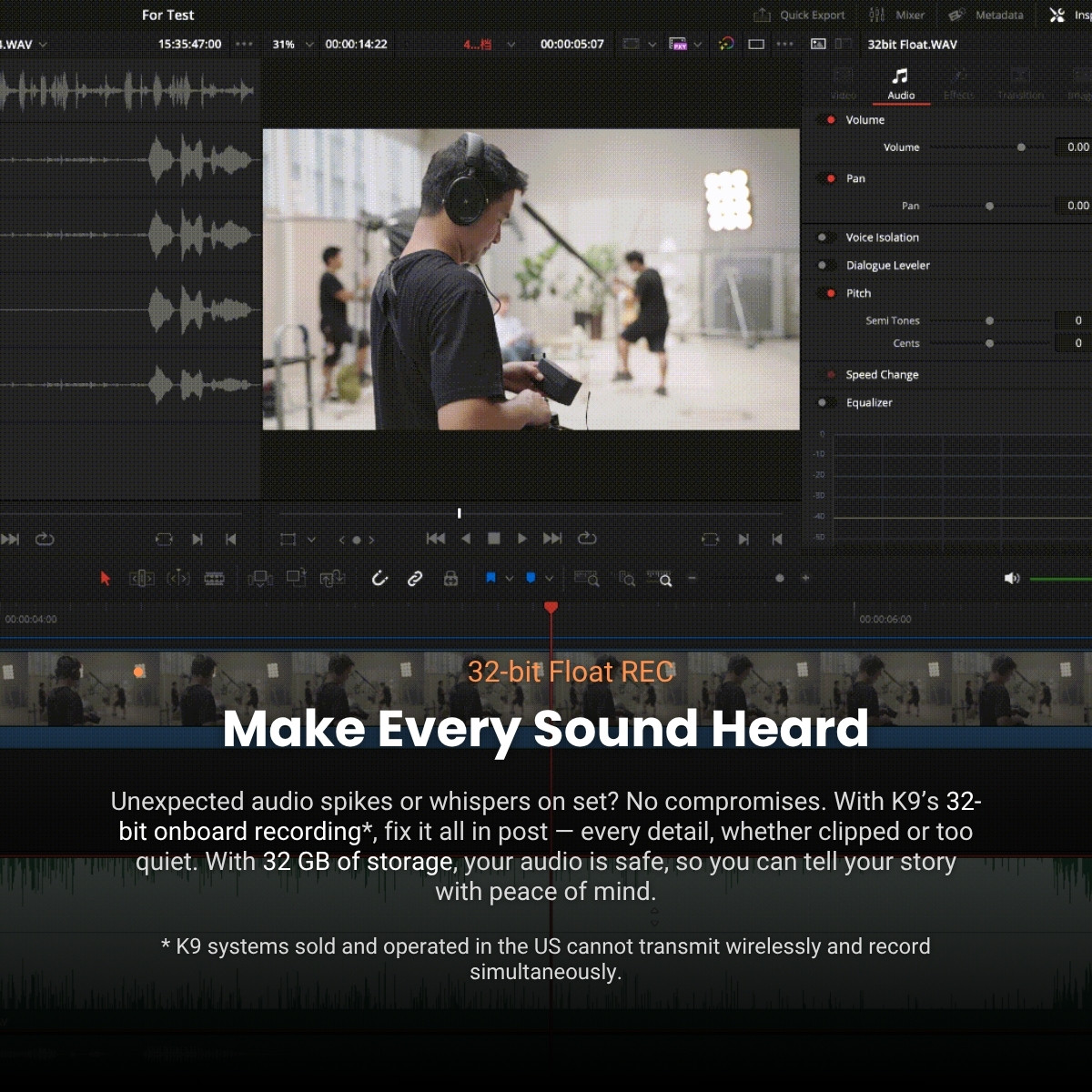

  • Onboard REC

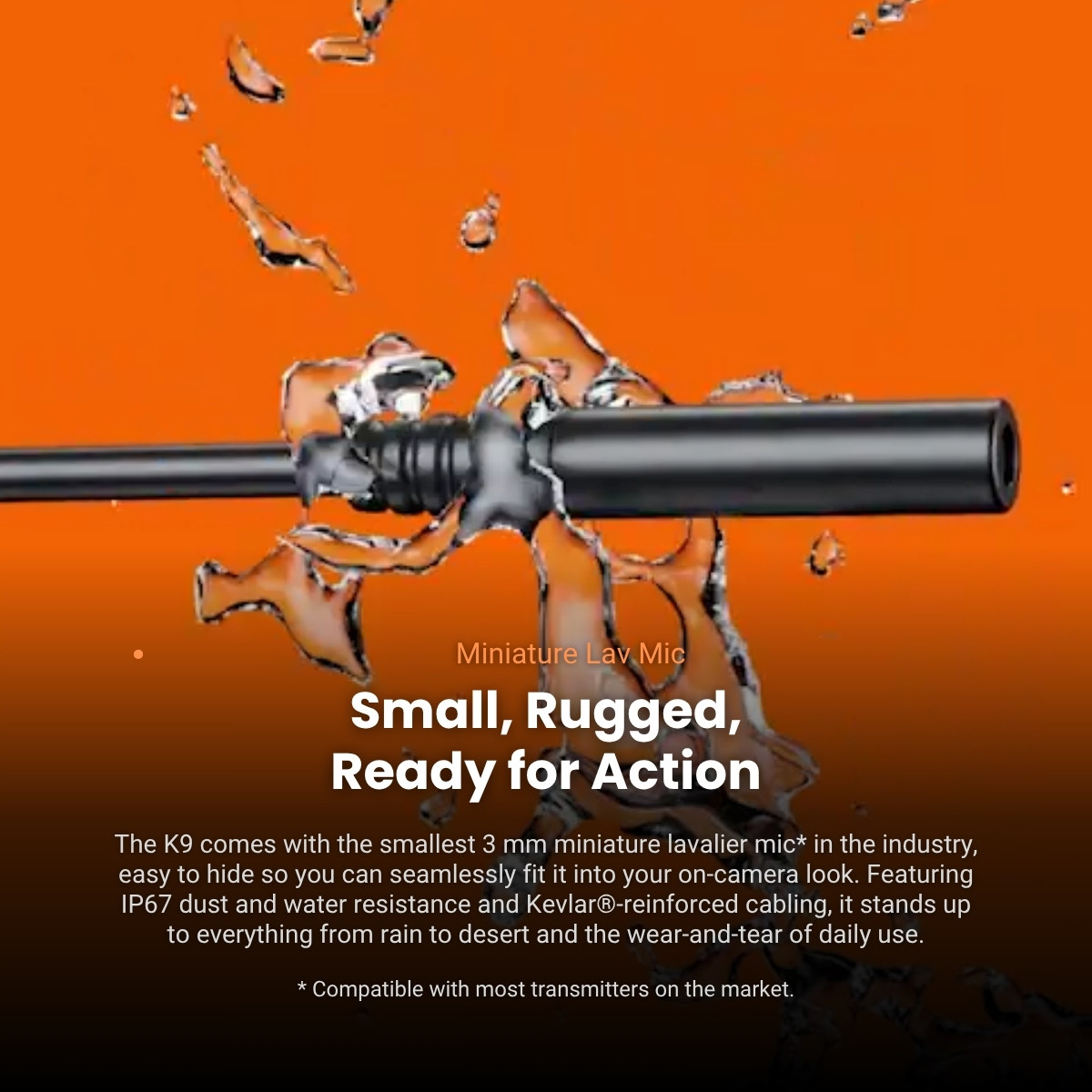

  • Miniature Lav Mic
  • Dual Displays

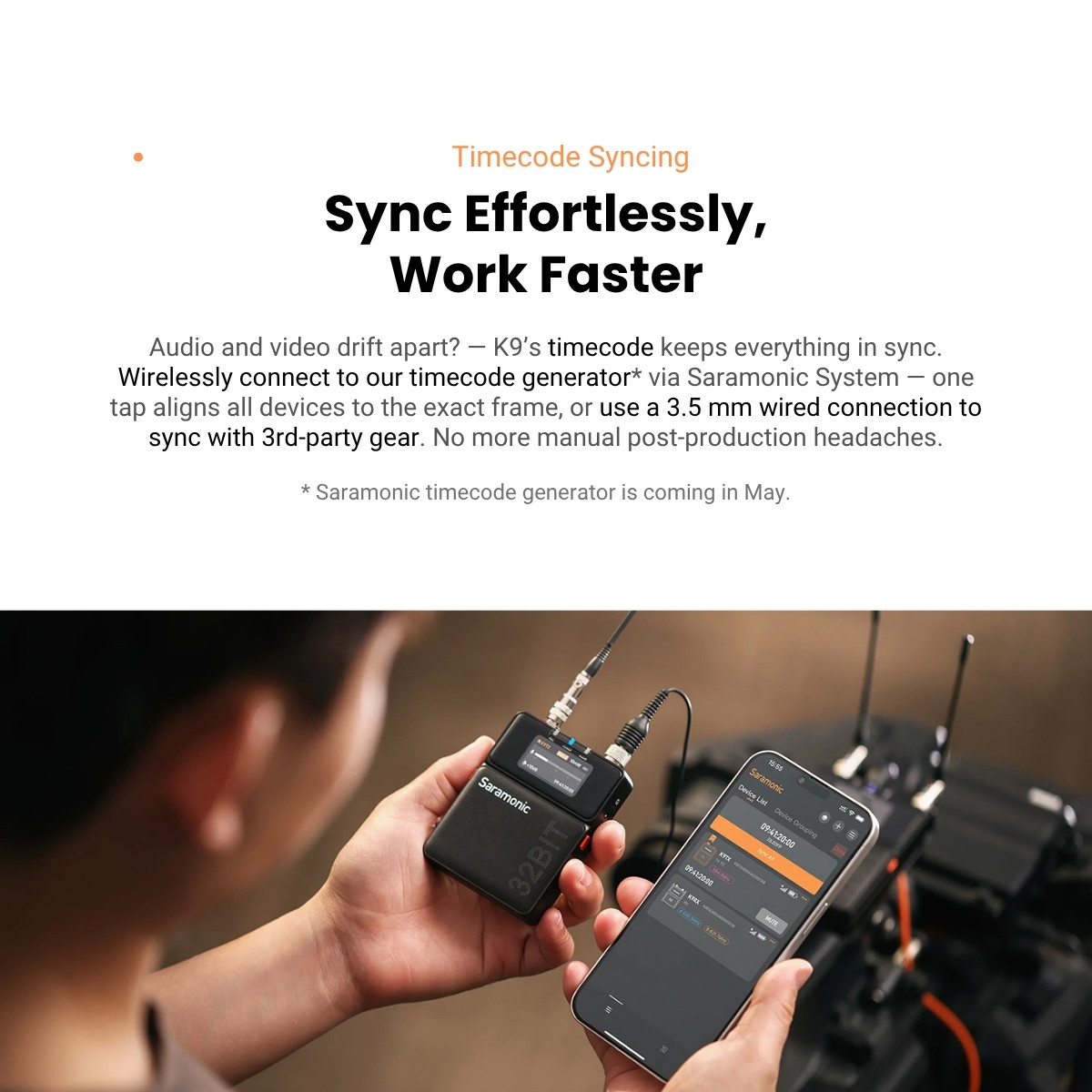

  • Timecode

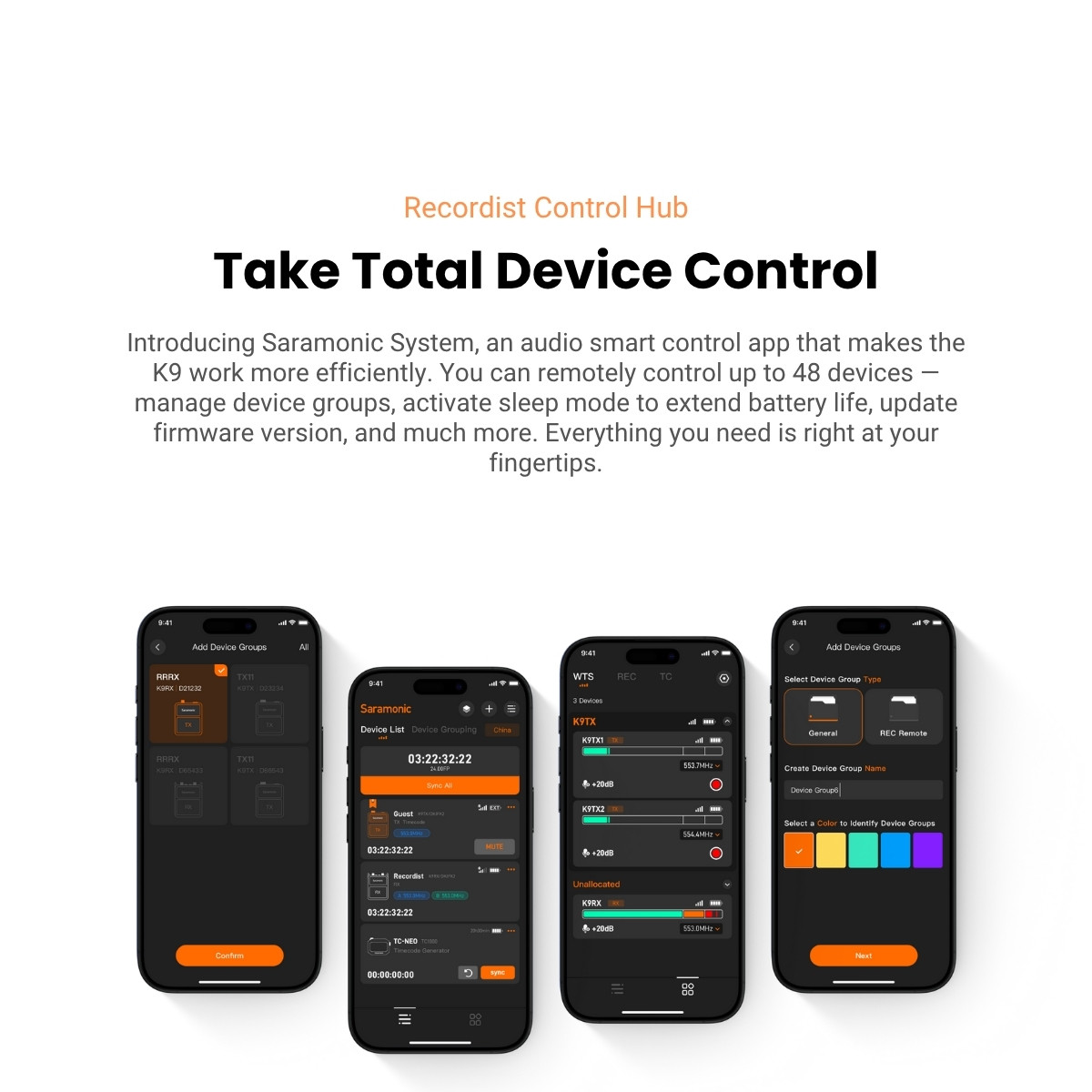

  • Recordist Control Hub
  • Universal Compatibility
  • 8 Colored Tags

3 in stock

SKU: SARAM-K9 Categories: , Tag:

1-Year Official Warranty by Saramonic Malaysia

*********************************

Saramonic K9 Dual-Channel Digital UHF Wireless Audio System for Filmmakers

[ TECH SPECS ]

Transmission Digital UHF
RF Power 10 mW, 25 mW, 50 mW, 100 mW (US)
RF Step 100 kHz
RF Bandwidth 200 kHz
Channel RF Spacing 700 kHz
Antenna Connector TX: 50 Ω SMA
RX: 2 × 50 Ω SMA
Auto Frequency Scanning Activate via Receiver or Saramonic System
32-bit Float Onboard Recording* Yes
Max Storage 256 GB
Timecode TX: Yes (SMPTE LTC)
RX: No
Timecode Framerate 23.98, 24, 25, 29.97, 29.97DF, 30
Display TX: TFT
RX: TFT (Front) + OLED (Top)
Dynamic Range TX Input: 130 dB
RX Analog Output: 120 dB
Output Mode Mono, Stereo, Headphone
Frequency Response 20 Hz to 20 kHz
Low Cut OFF, 75 Hz, 100 Hz, 150 Hz
Sample Rate / Bit Depth 48 kHz / 24-bit
Lav Mic Dimension Ø 3 × 17.5 mm
Lav Mic IP-Rating IP67
Latency 6.3 ms
Power Supply External Battery / Power
Battery Life TX: 9 hours
RX: 8 hours
Compatible Battery Type 1.5 V Lithium Iron, 1.5 V Alkaline,
1.5 V / 3.7 V Lithium, and 1.2 V NiMH
Dimensions (mm) TX: 80 x 62 x 19 mm
RX: 88.1 x 66.1 x 23.6 mm
Weight (g) Weights include/exclude batteries and antennas.
TX: 85 g (excl.), 120.5 g (incl.)
RX: 112 g (excl.), 157.5 g (incl.)
Operating Temperature -20°C to +45°C
Storage Temperature -30°C to +60°C



Weight 2.20 kg
Dimensions 25.00 × 15.00 × 35.00 cm
