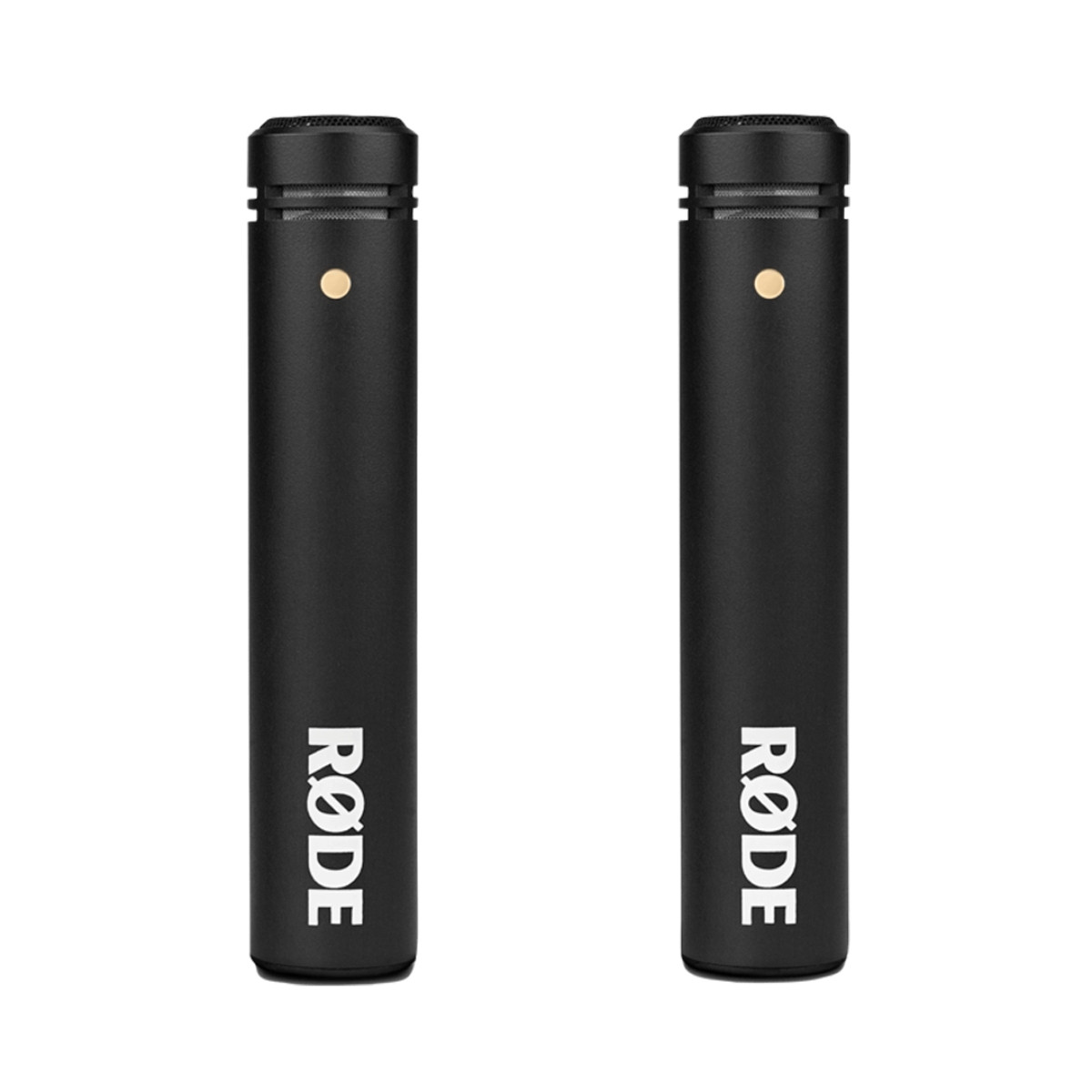

Rode M5 Matched Pair Small-diaphragm Condenser Microphone

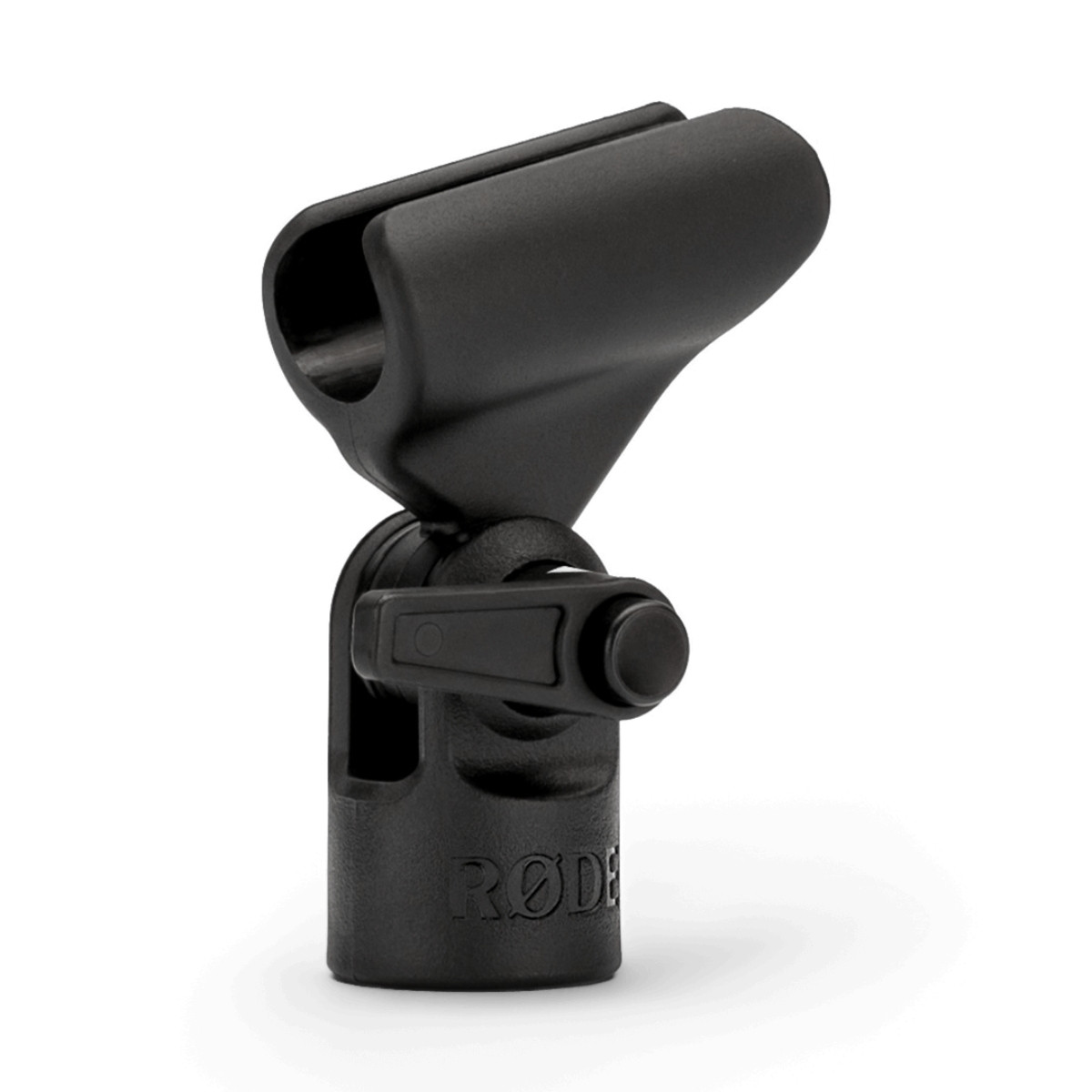

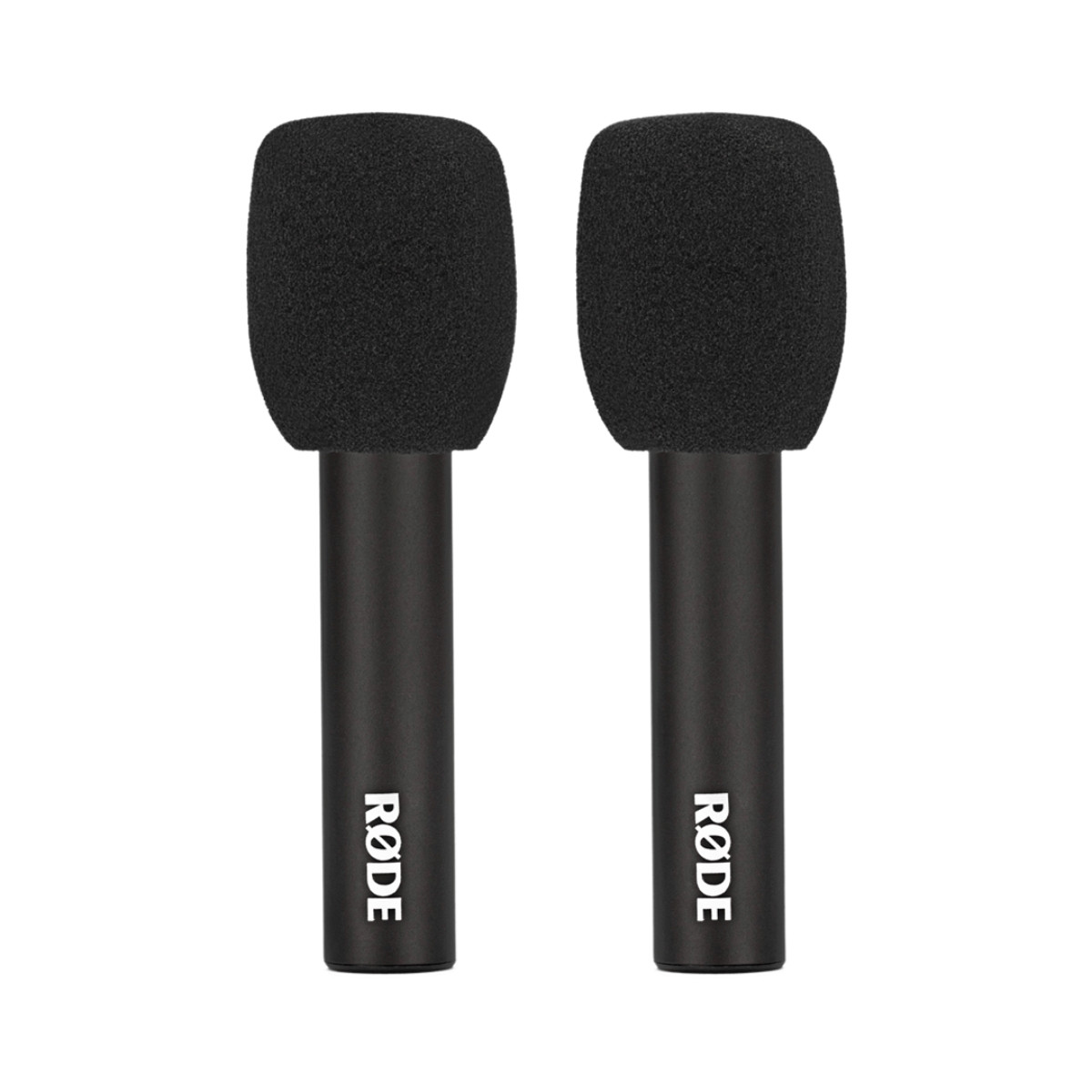

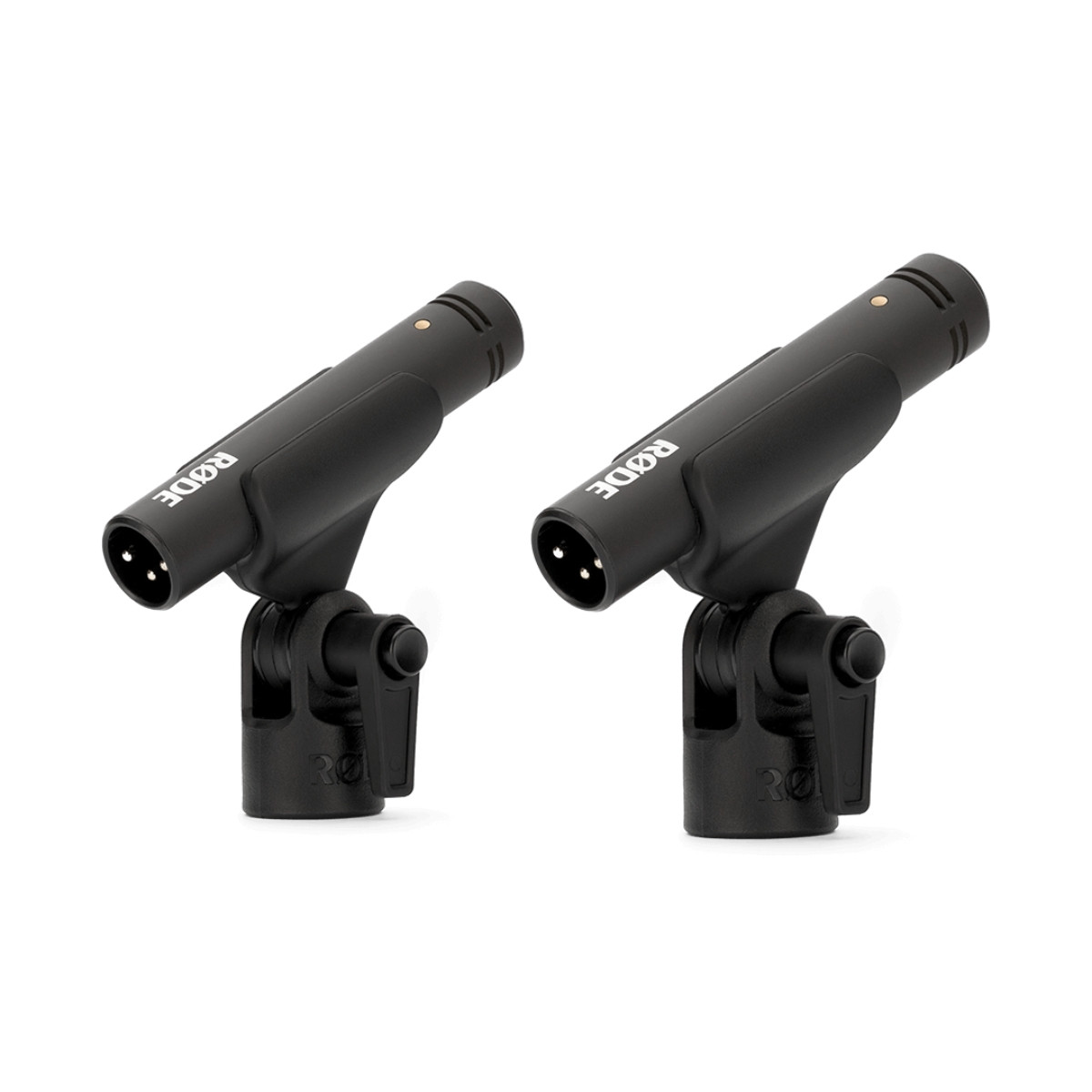

The M5 is a high-quality matched pair of small-diaphragm condenser microphones designed for stunning performance in a wide range of recording applications in the studio or on stage. Featuring a 1/2-inch gold-sputtered cardioid condenser capsule with very low noise and a full frequency response, the M5 is equally at home on a range of acoustic instruments, choirs, or anywhere you would employ a small-diaphragm ('pencil') condenser microphone, either individually or in a stereo array. Each matched pair has been carefully selected to ensure a variation of no more than 1dB sensitivity between the microphones and is supplied with WS5 windshields and RM5 stand mounts.





Specifications



Acoustic Principle: Pressure Gradient

Active Electronics: JFET impedance converter with bipolar output buffer

Polar Pattern: Cardioid

Frequency Range: 20Hz ~ 20kHz

Output Impedance: 200Ω

Equivalent Noise: 19 dBA SPL (as per IEC651)

Maximum Output Level: +13.5 dBu

Sensitivity: -34 dB re 1V/Pa (20mV @ 94 dB SPL) ± 2dB @ 1kHz

Dynamic Range: 121 dB SPL

Maximum SPL: 140 dB SPL

Signal-to-noise Ratio: 75 dBA SPL (as per IEC651)

Power Requirements: P24 and P48

Output Connection: XLR Balanced output between pin 2 (+), pin 3 (-) and pin 1 (ground)

---





What's in the Box:

1 x M5

2 x WS5

2 x RM5
