RGBlink mini-pro v3 The 3rd Generation of mini Streaming Switcher

1 Year Official RGBlink Malaysia Warranty

************************************************

RGBlink mini-pro v3 The 3rd Generation of mini Streaming Switcher

Key Features

• mini and is convenient to carry

• Built-in LCD for video preview and touch menu operation

• Quad HDMI 2.0 inputs (HDCP 1.4 compliance), resolutions up to 4K@60

• Dual HDMI 1.3 outputs for monitoring of multi-view Preview, Program or AUX

• Mix for 4-channel HDMI embedded and 2-channel external audio

• USB 2.0 one-key recording in exFAT or FAT32 format with bitrate up to 16Mbps

• 15 transition effects

• AUTO and WIPE Switch mode available

• USB output supports YUY2 and MJPG format, which can be recognized as webcam for streaming

• 5-direction joystick and toggle for controlling PTZ camera (IP VISCA Protocol supported)

• Save and load PTZ presets. One-click for preset recall

• Support RTMP(S) network streaming up to 2 platforms

• Specify either “green” or “blue” as the key color for Chroma Key

• APP and TAO Cloud control, compatible with mobile devices and desktop

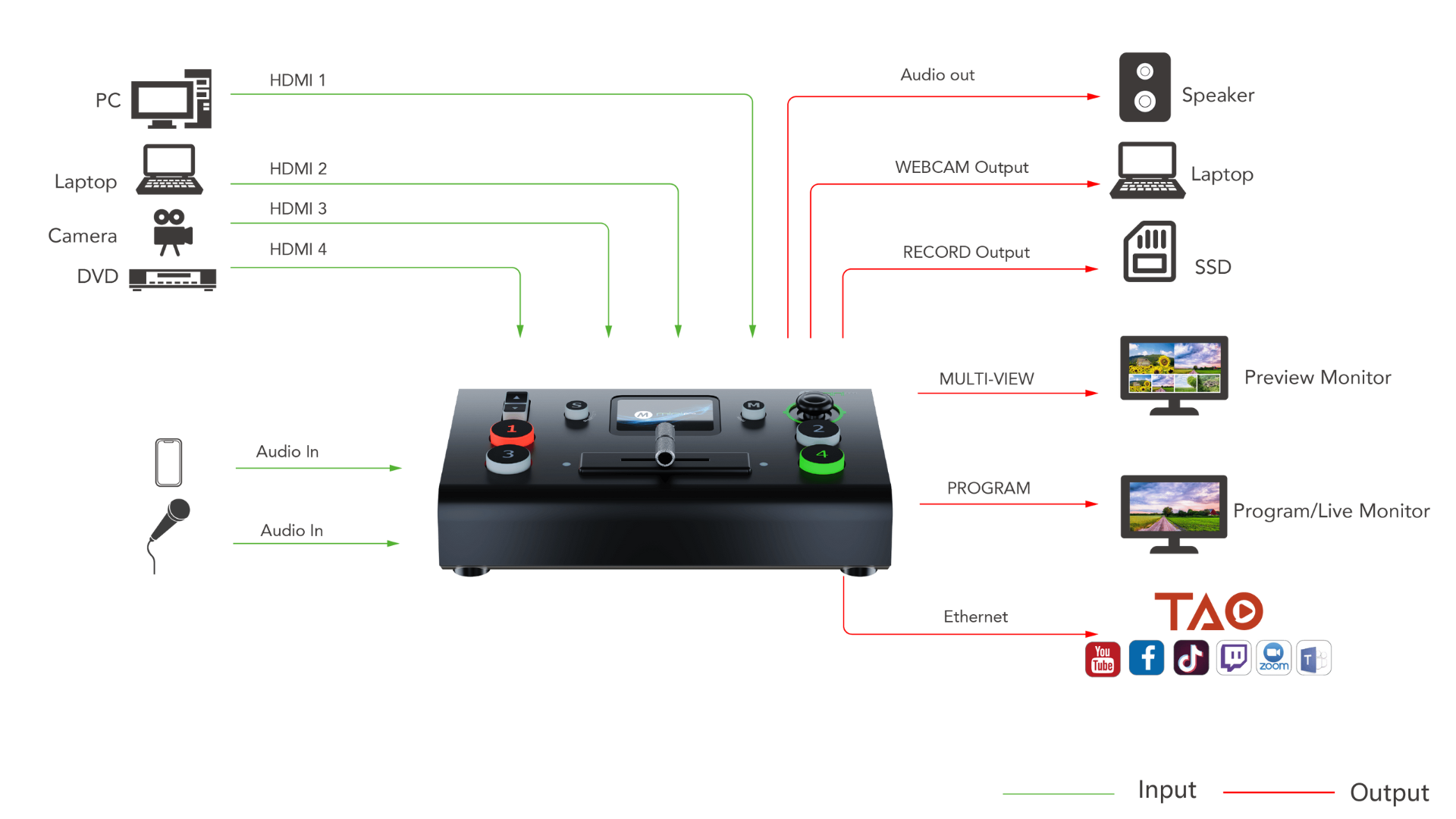

This is the 3rd generation of mini-pro, mini-pro v3 features four 4K HDMI inputs and dual HDMI outputs. Both Line and Mic level audio supported on aboard with variable delay controls to bring audio into sync if needed. USB output supports YUY2, MJPEG and H.264 encoding formats, which can be recognized as webcam for streaming to Facebook, YouTube, ZOOM, etc.

mini-pro is built with LCD touch screen to display video sources. mini-pro supports TAO Cloud integrated control, simultaneous streaming to 4 live streaming platforms via RTMP(S) and 24/7 recording with capacity of hard drive up to 2TB.

mini-pro is packed with features including dynamic output control, multi-view preview, picture in picture, Chroma Key, transitions, on board PTZ camera controls and much more.
