JBL Bar 1300 11.1.4-channel Soundbar with Detachable Surround Speakers, MultiBeam, Dolby Atmos and DTS:X

1-Year Official Warranty by JBL Malaysia

**********************************************

JBL Bar 1300 11.1.4-channel Soundbar with Detachable Surround Speakers, MultiBeam, Dolby Atmos and DTS:X

The ultimate 3D surround experience that will blow you away

You’ve never heard anything like the JBL Bar 1300—in your living room or anywhere else. More than just a great soundbar, it’s a full sound system. It features MultiBeam™ and six up-firing drivers—four in the bar and two in the detachable battery-powered surround speakers—that deliver massive Dolby Atmos® and DTS:X 3D surround sound, centering you in your music, movies, and games. 1170W of total output power and thrilling bass from a 10” subwoofer is more than enough to make the room shake. Though, you’ll never miss a word with due to our PureVoice technology, which makes sure the dialogue is clear even when other sounds are at their loudest. When you want to enjoy your favorite tunes choose streaming via either AirPlay, Alexa Multiroom Music (MRM), or Chromecast built-in™ that give you over 300 music streaming options. But that’s not all. Your choices are as unlimited as you are because you can also pair the soundbar to your Bluetooth device. You can even take one of the detachable speakers (or both for powerful stereo sound) out to your kitchen or patio and enjoy listening to your favorite music or podcast there.



Features

• True Dolby Atmos®, DTS:X, and MultiBeam™ Surround Sound

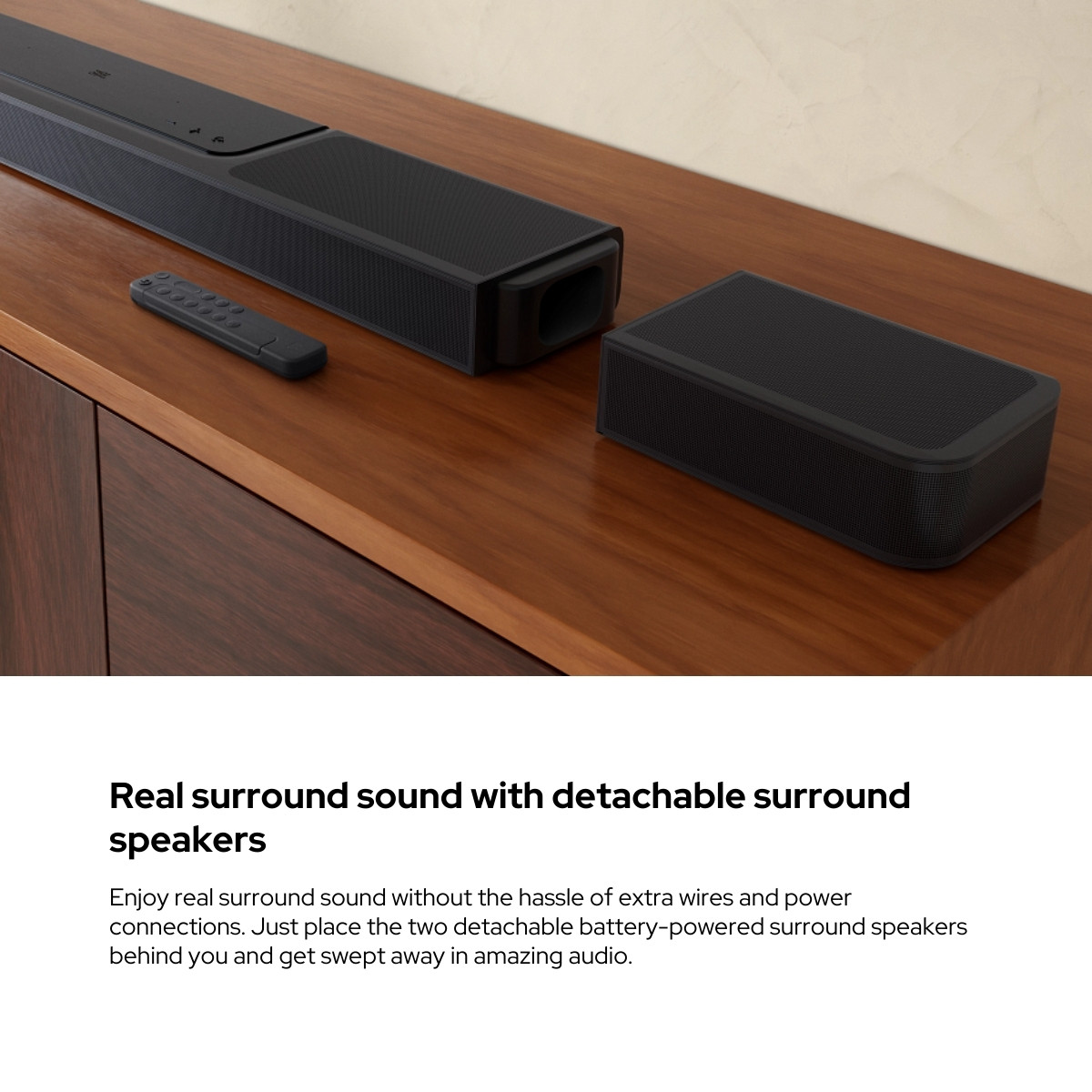

• Real surround sound with detachable surround speakers

• 10” Wireless subwoofer

• PureVoice Dialogue Enhancement Technology

• 1170W output power

• Built-In Wi-Fi with AirPlay, Alexa Multi-Room Music and Chromecast built-in™

• Works with voice assistant-enabled speakers

• HDMI eARC with 4K Dolby Vision passthrough

• Easy sound calibration

• Standalone Bluetooth speaker

• JBL One App



Technical specifications:



General specification

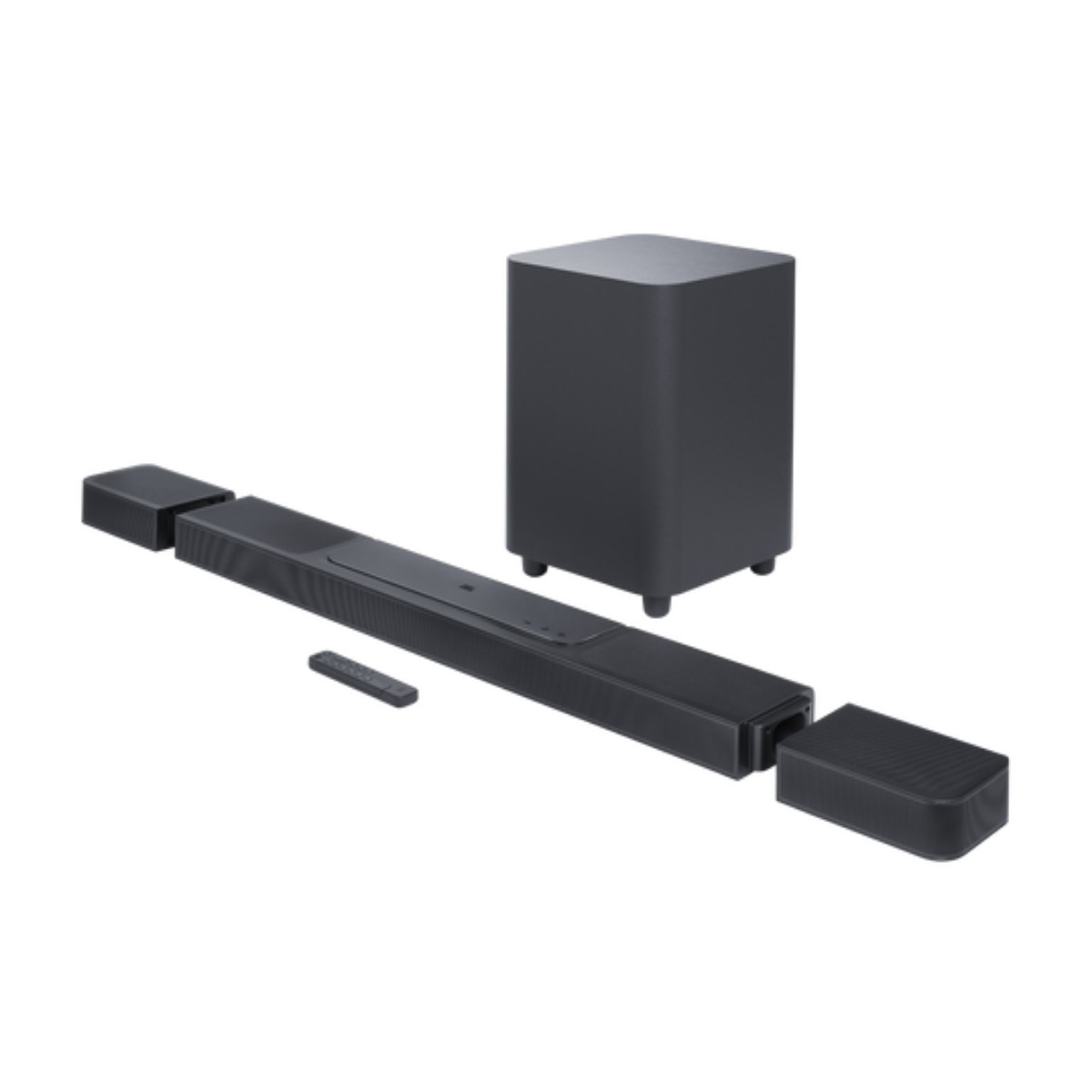

• Model: BAR 1300 (soundbar unit), BAR 1300 SURROUND (detachable speaker) BAR 1300 SUB (subwoofer unit)

• Sound system: 11.1.4 channel

• Power supply: 100 – 240V AC, ~ 50/60Hz

• Total speaker power output (Max @THD 1%): 1170W

• Soundbar output power (Max @THD 1%): 650W

• Surround speaker output power (Max @THD 1%): 2x 110W

• Subwoofer output power (Max. @THD 1%): 300 W

• Soundbar transducer: 6x (46×90)mm racetrack drivers, 5x 0.75” (20mm) tweeters, 4x 2.75” (70mm) up-firing full-range drivers

• Surround speaker transducer: (46×90)mm racetrack driver, 0.75” (20mm) tweeter, 2.75” (70mm) up-firing full-range driver, 2x (48x69mm) rounded rectangle Passive Radiators

• Subwoofer transducer: 10” (260mm)

• Networked standby power: < 2.0W

• Operating temperature: 0°C – 45°C

• Lithium battery: 3.635V, 6600 mAh

• Detachable surround speaker playtime: up to 10 Hours (may vary according to content type and volume level)



HDMI Specification

• HDMI video input: 3

• HDMI video output (with Enhanced Audio Return Channel, eARC): 1

• HDMI HDCP version: 2.3

• HDR pass through: HDR10, Dolby Vision



Audio Specification

• Frequency response: 33Hz – 20kHz (-6dB)

• Audio inputs: 1 Optical, Bluetooth, USB (USB playback is available in US and APAC version. For other versions, USB is for Service only.)



USB Specification (Audio playback is for US version only):

• USB port: Type A

• USB rating: 5V DC, 0.5A

• Supporting file format: MP3

• MP3 codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3

• MP3 sampling rate: 16 – 48 kHz

• MP3 bitrate: 80 – 320 kpbs



Wireless specification

• Bluetooth version: Main bar – 5.0, Detachable surround speaker – 5.2

• Bluetooth profile: Main bar – A2DP 1.2 and AVRCP 1.5, Detachable surround speaker – A2DP 1.3 and AVRCP 1.6

• Bluetooth transmitter frequency range: 2400MHz – 2483.5MHz

• Bluetooth transmitter power: <15dBm (EIRP)

• Wi-Fi network: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)

• 2.4G Wi-Fi transmitter frequency range: 2412 – 2472MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 channels)

• 2.4G Wi-Fi transmitter power: < 20dBm (EIRP)

• 5G Wi-Fi transmitter frequency range: 5.15 – 5.35GHz, 5.470-5.725GHz, 5.725 – 5.825GHz

• 5G Wi-Fi transmitter power: 5.15-5.25GHz <23dBm, 5.25-5.35GHz & 5.47-5.725GHz <20dBm, 5.725-5.825GHz <14dBm (EIRP)

• 2.4G wireless frequency range: 2406 – 2474MHz

• 2.4G wireless power: <10dBm (EIRP)



Dimensions

• Total soundbar dimensions (W x H x D): 1376 x 60 x 139 mm / 54.2” x 2.4” x 5.5”

• Main soundbar dimensions (W x H x D): 1000 x 60 x 139 mm / 39.4” x 2.4” x 5.5”

• Detachable surround speaker dimensions (each) (W x H x D): 202 x 60 x 139 mm / 8” x 2.4” x 5.5”

• Subwoofer dimensions (W x H x D): 305 x 440.4 x 305 mm / 12” x 17.3” x 12”

• Soundbar weight: 4.3kg / 9.5 lbs

• Detachable surround speaker weight (each): 1.17 kg / 2.57 lbs

• Subwoofer weight: 10 kg / 22 lbs

• Packaging dimensions (W x H x D): 381 x 1107 x 477 mm/ 15” x 43.6” x 18.8””

• Packaging Weight: 21.45 kg / 47.2 lbs



What’s in the box:

• 1x Main soundbar

• 2x Detachable wireless surround speakers

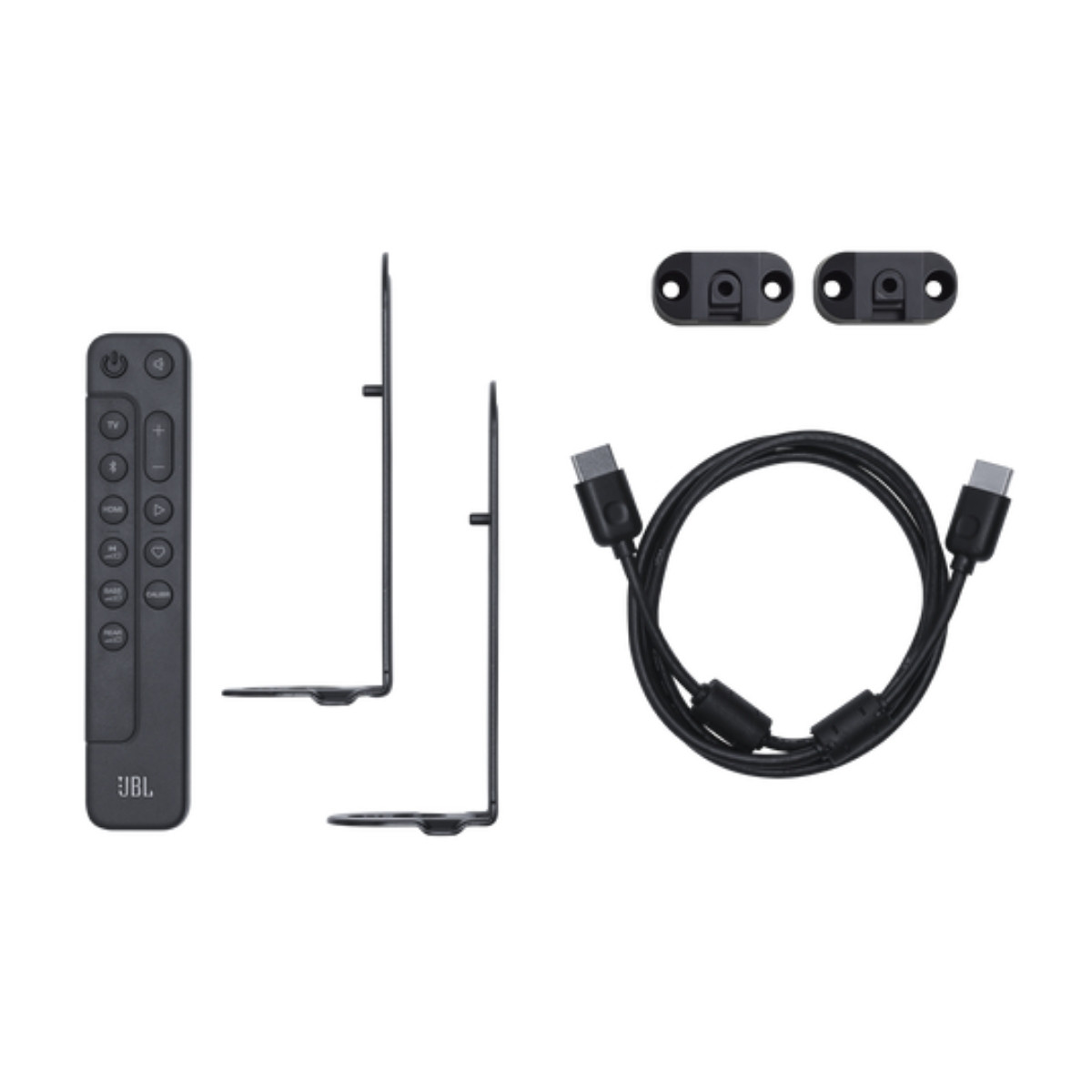

• 1x Wireless subwoofer Remote control with 2 x batteries Power cords (up to 8pcs depending on region SKUs)

• 1 x HDMI cable

• 2 x L-shape wall-mount bracket (main bar) + 2 x U-shape wall-mount bracket (for surround speakers) kit with screws

• 2 x Side caps

• Quick start guide

• Safety instruction and Warranty card

• Wall mount template



Disclaimer: Some features require subscriptions or services not available in all countries
