J5create ScreenCast Wireless Display Adapter – JVAW56

2 YearsOfficial j5create Malaysia Warranty

*******************************************

J5create ScreenCast Wireless Display Adapter – JVAW56



Turn Your TV into a Smart TV

Wirelessly display content from your mobile devices onto a high-definition TV. No apps needed!



Experience the Visual Rush of HD Video

Supporting 1080p full HD video and HD audio.

Dual Band to Ensure a Stable Connection

Built-in dual band (2.4 GHz and 5 GHz) connects to the Internet through your wireless network for higher stability and smoother streaming.

Works with Various Cast-Compatible Devices

With its support of multiple wireless display standards (M-i-r-a-c-a-s-t, A-i-r-P-l-a-y, and C-h-r-o-m-e-c-a-s-t), the ScreenCast is compatible with devices and TVs you already own, including W-i-n-d-o-w-s, m-a-c-O-S-, i-O-S, A-n-d-r-o-i-d and cast compatible laptops, tablets and mobile phones.





Quick and Easy Setup:



1. Quick and Easy Setup

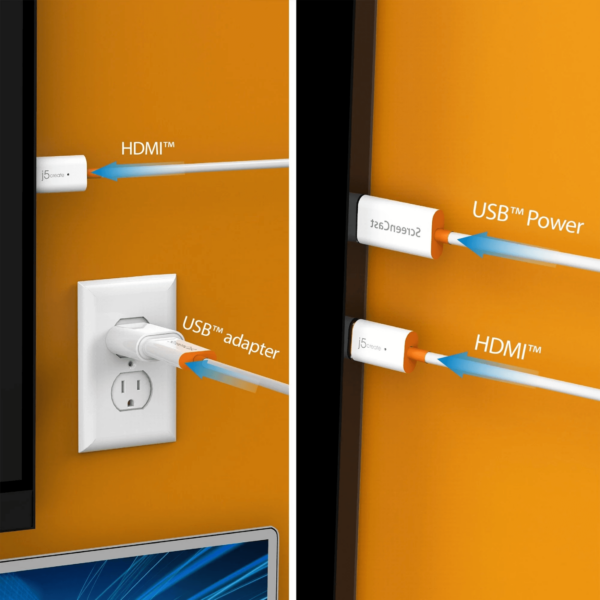

2. Plug the USB™ into the built-in USB™ port on your TV or a USB™ power adapter (USB™ extension cable included.)

3. Connect to the ScreenCast and share





Dual Band to Ensure a Stable Connection

Built-in dual band (2.4 GHz and 5 GHz) connects to the Internet through your wireless network for higher stability and smoother streaming.





Hardware

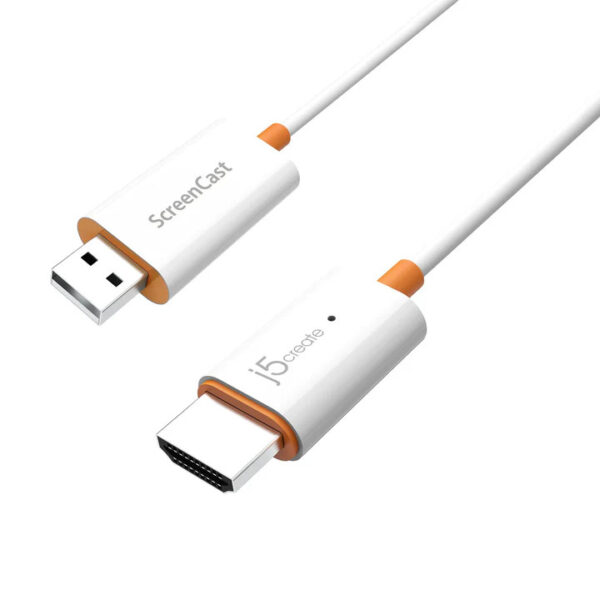

Host Connector: HDMI™ male

Power Source: USB™ Type-A male



Performance



Audio Channel: 2.1 via HDMI™

Hdmi Compliance: HDMI™ v1.3

Security – Encryption: WPA2

Supported Resolution – Output

1920 × 1080

1280 × 720

720 x 480



Physical Specifications



Cable Length: 23.6 in. (60 cm)

Color: White

Enclosure Type: Plastic

Operating Humidity: < 85% non-condensing

Operating Temperature: +14 to +104°F (-10 to +40°C)

Product Depth: 0.41 in. (10.5 mm)

Product Height: 2.2 in. (57 mm)

Product Weight: 2.8 oz (31.5g)

Product Width: 0.95 in. (24 mm)

Storage Humidity: < 85% non-condensing

Storage Temperature: -4 to +122°F (-20 to +50°C)



Wireless Protocols



Antenna Type: Internal antenna

Channel Width: 20 MHz, 40 MHz

Frequency: 2.4 GHz, 5 GHz

Range: Up to 10-15 meters

Standard: IEEE 802.11ac









Package Contents



1 – JVAW56 ScreenCast Wireless Display Adapter

1 – USB™ Type-A extension cable (23.6")

1 – Quick Installation Guide (QIG)
