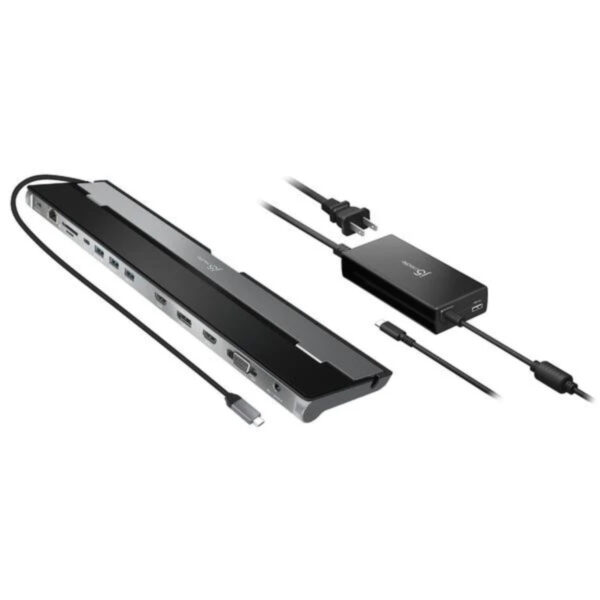

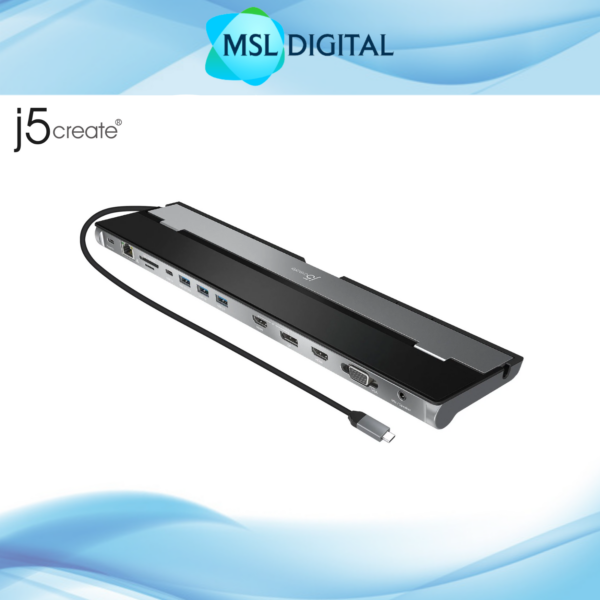

[PRE-ORDER 30 Days] J5create JCD543P USB-C™ Triple Display Docking Station with 100W PD Adapter

• TRIPLE DISPLAY FLEXIBILITY & ADAPTABILITY

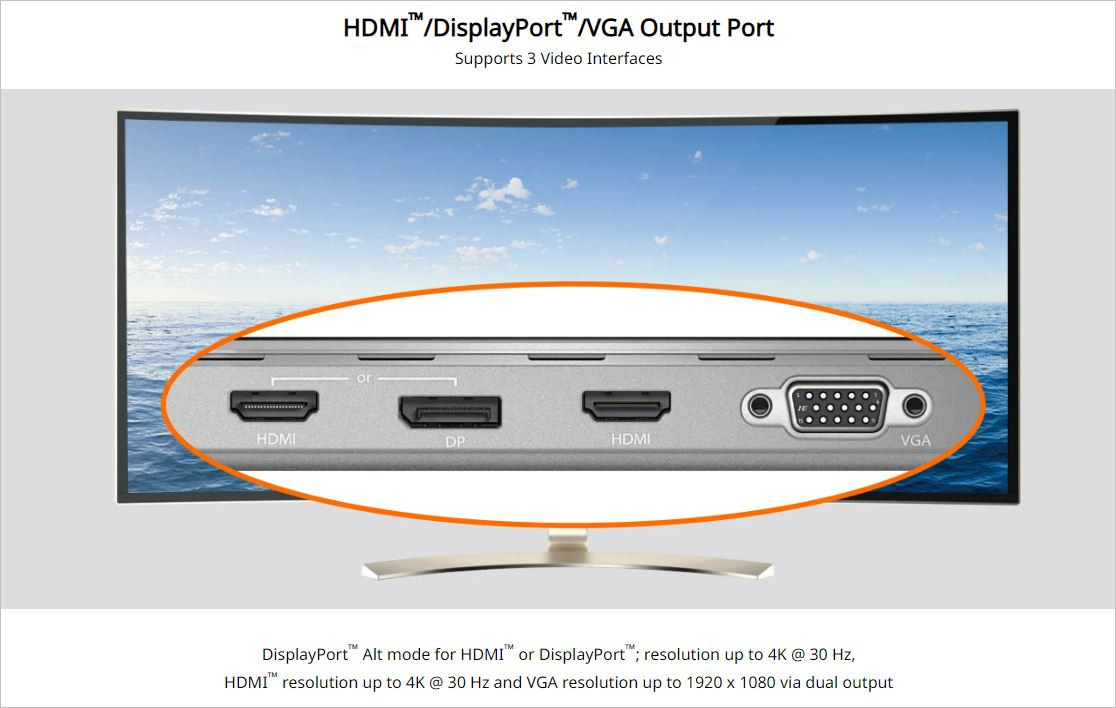

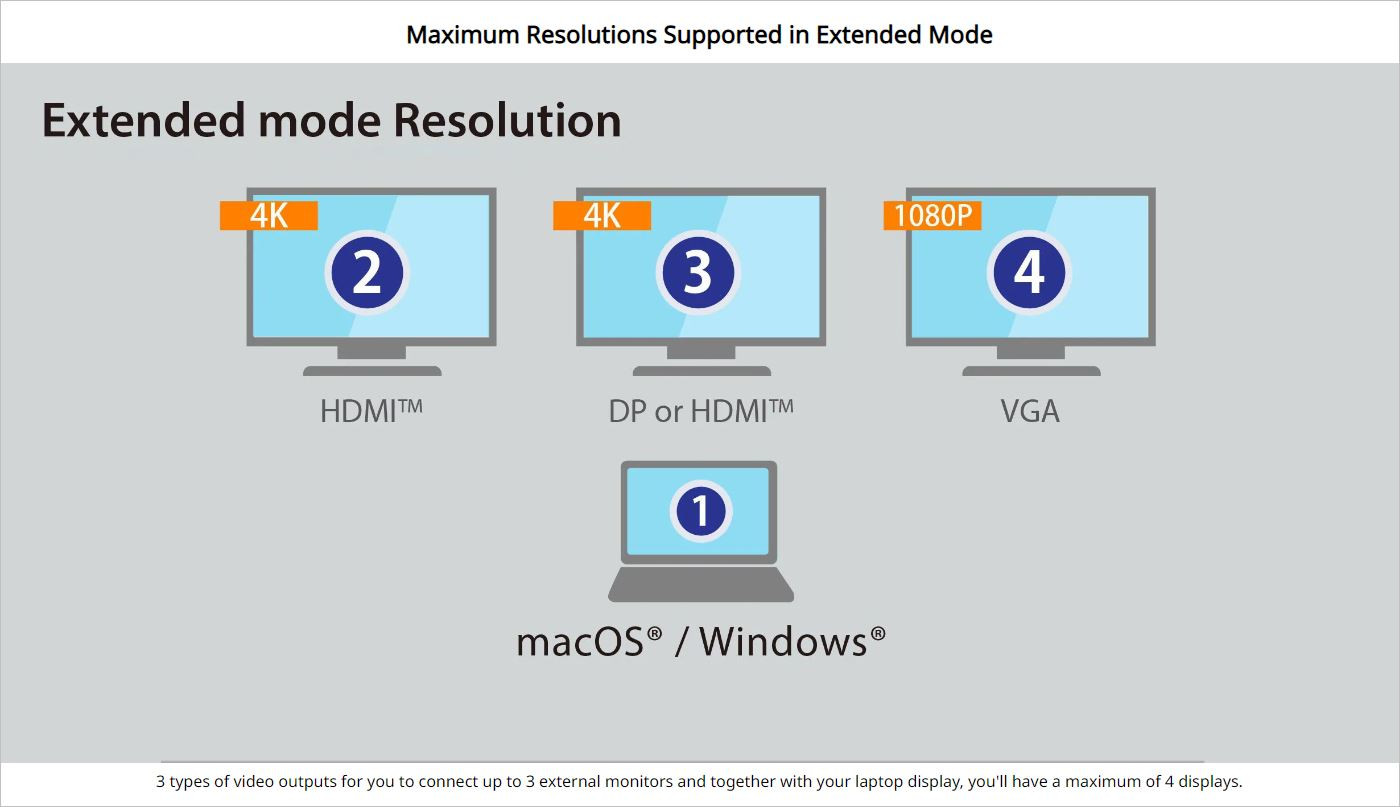

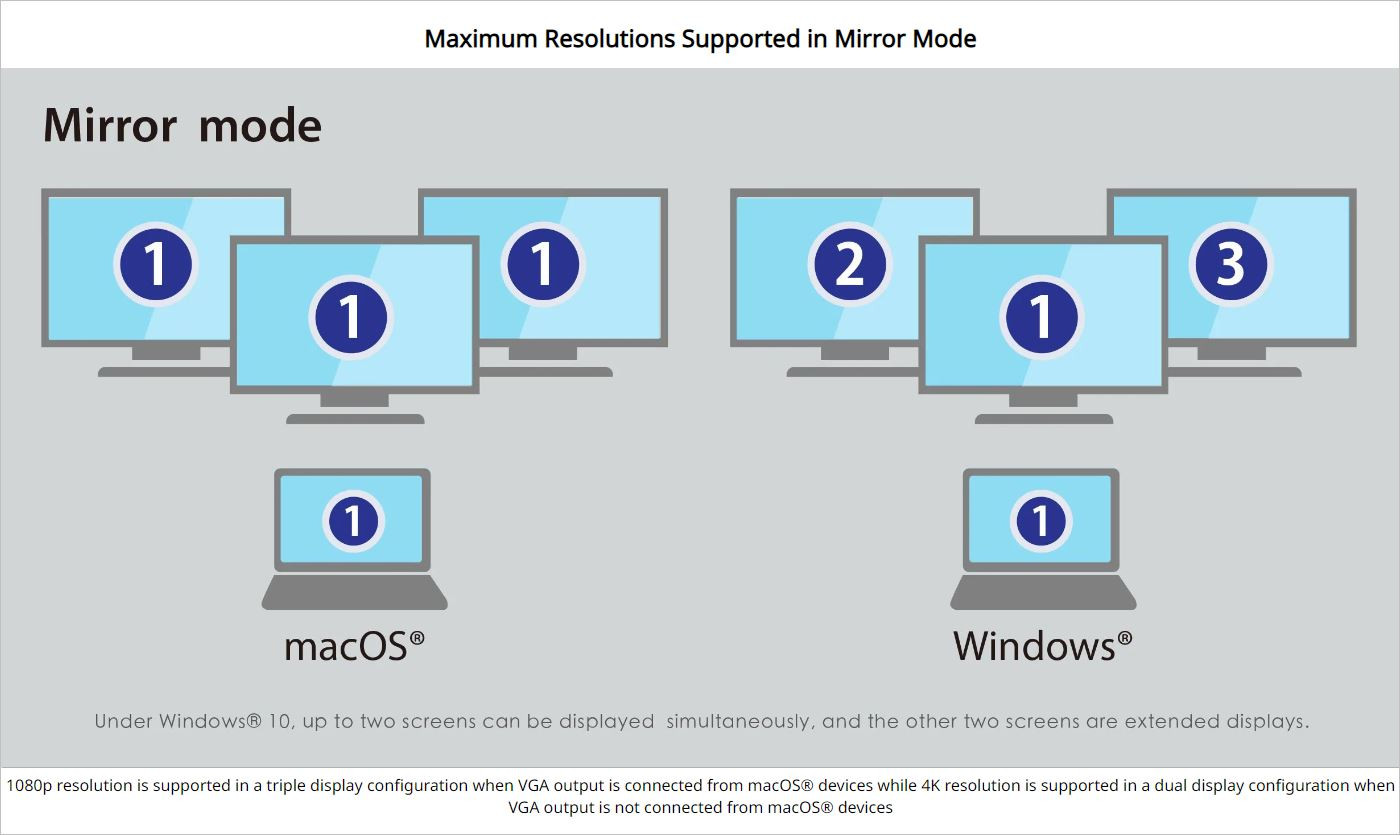

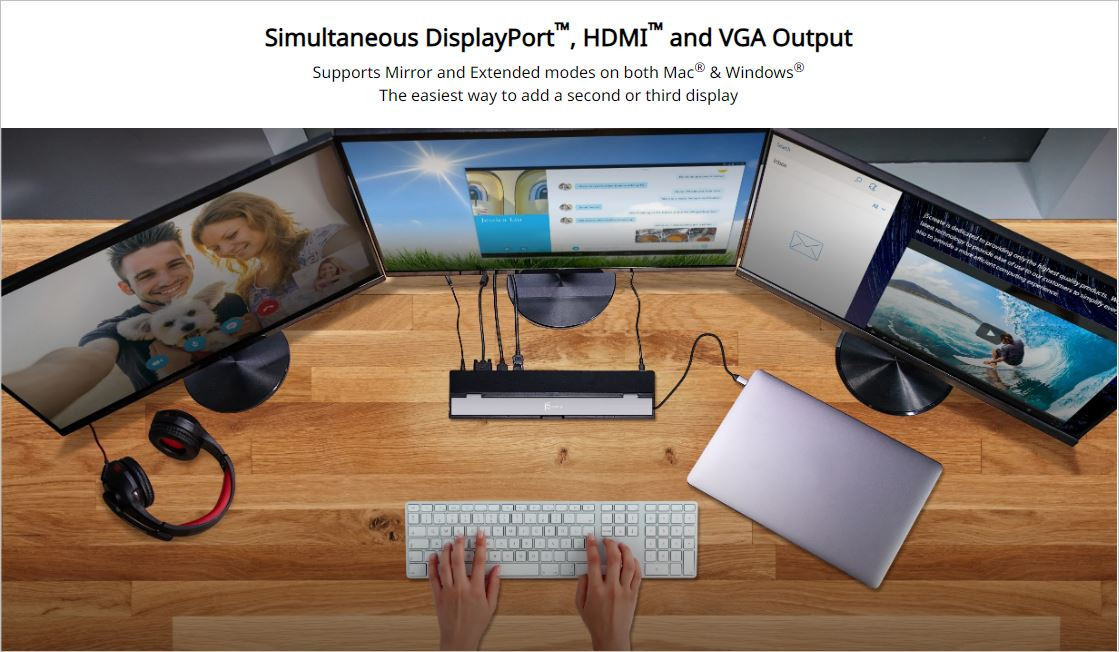

Create a triple-monitor setup with 4K HDMI, 1080p VGA, and 4K DisplayPort outputs and together with your laptop display, you can have a maximum of 4 displays. Available display combinations:
o HDMI + VGA + DisplayPort
o HDMI + VGA + HDMI

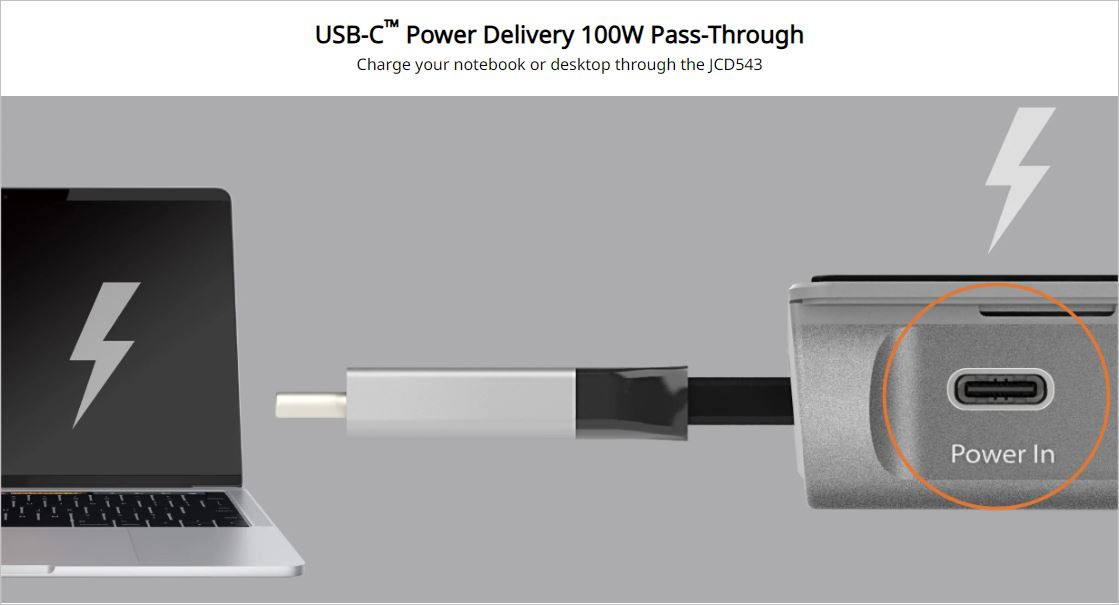

• USB-C 100W POWER DELIVERY
With the attached USB-C cable, the dock will power and charge power-hungry laptops, with up to 100W Power Delivery and power your connected peripherals when it’s used with the USB-CT power adapter.

• MULTIPLE CONNECTIONS

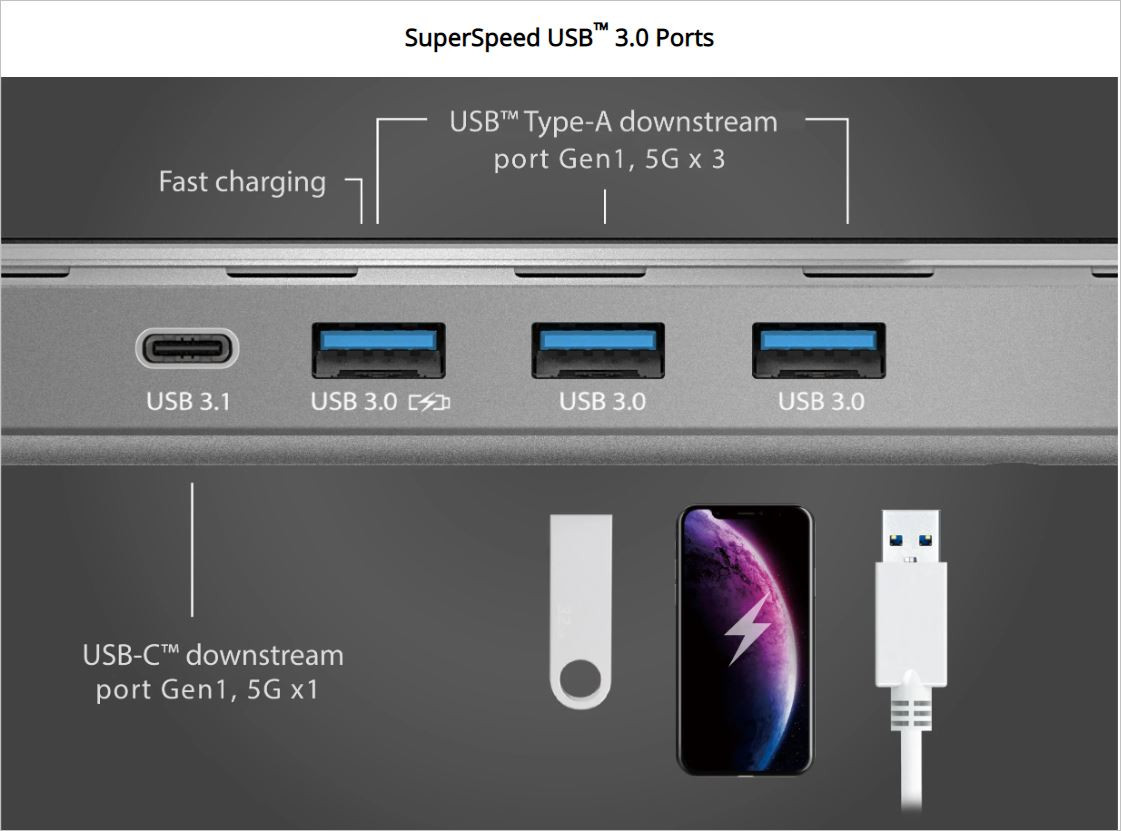

To support all of your USB peripherals, the dock provides a total of four USB 3.0 ports (1 USB-C and 3 USB Type-A ports), a Gigabit Ethernet port, SD/microSD card slots and a combo audio jack.

• BC 1.2 FAST CHARGING
One of the USB 3.0 Type-A ports is a fast-charge port, so you can charge your mobile devices faster than you can from a standard USB port.

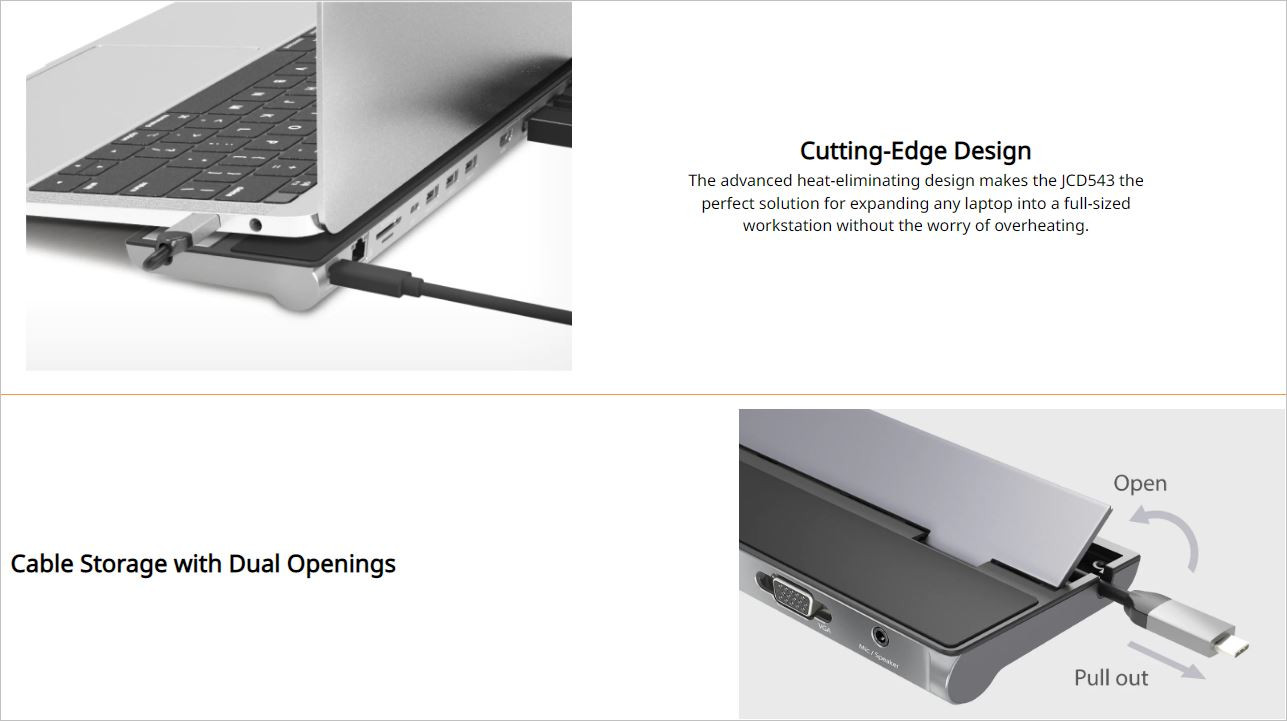

• CUTTING-EDGE DESIGN

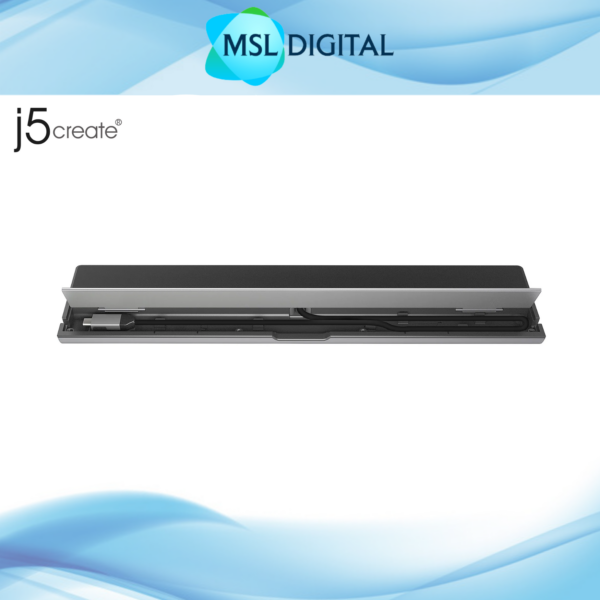

Advanced heat-eliminating design is the perfect solution to expand your laptop into a full-sized workstation without the worry of overheating and with the double-sided cable storage compartment, you can place the cable any way you like.

This USBTM 3.0 docking station is also equipped with a RJ45 Gigabit Ethernet port, memory card reader/writer, and combo audio jack for maximum productivity. The elevated design assists with heat dissipation and, with its double-sided cable storage compartment, ensures an easy connection regardless of your USB-C port’s location.

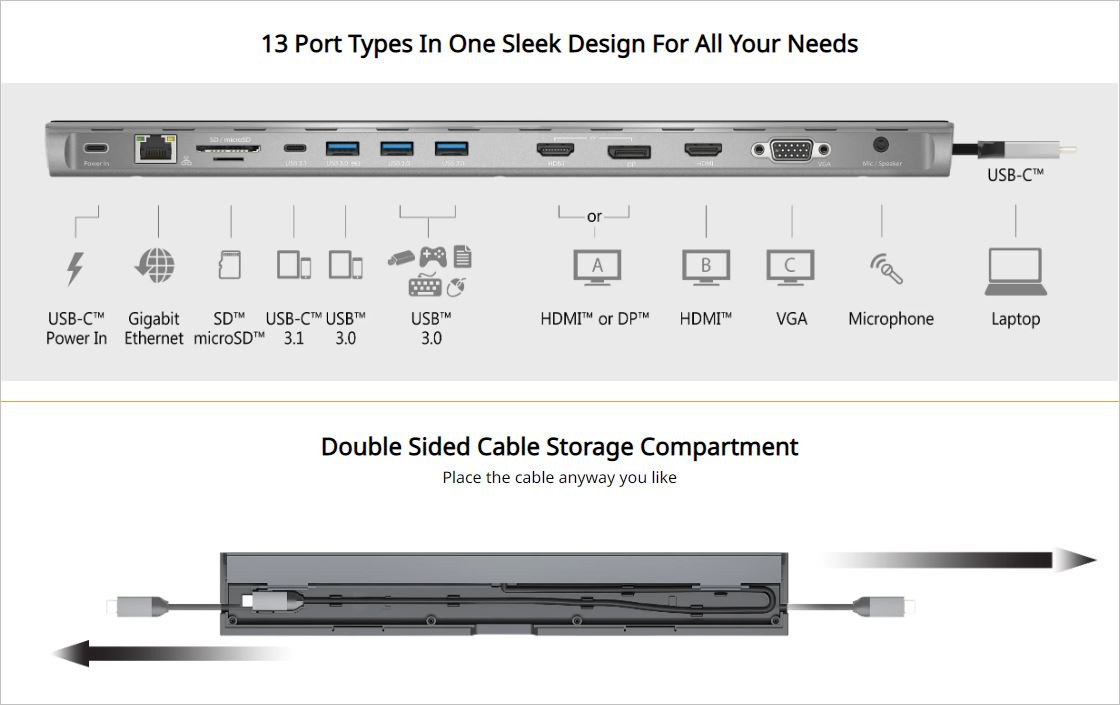

All 13 ports are combined into one slim docking station, so you’ll have all the connections you need to stay productive!

FEATURES

• TRIPLE DISPLAY FLEXIBILITY & ADAPTABILITY
Create a triple-monitor setup with 4K HDMITM, 1080p VGA, and 4K DisplayPort outputs and together with your laptop display, you can have a maximum of 4 displays. Available display combinations:
o HDMI + VGA + DisplayPort
o HDMI + VGA + HDMI

• USB-CTM 100W POWER DELIVERY
With the attached USB-C cable, the dock will power and charge power-hungry laptops, with up to 100W
Power Delivery and power your connected peripherals when it’s used with a USB-C power adapter.

• MULTIPLE CONNECTIONS
To support all of your USB peripherals, the dock provides a total of four USBTM 3.0 ports (1 USB-C and 3 USB Type-A ports), a Gigabit Ethernet port, SD/microSD card slots and a combo audio jack.

• BC 1.2 FAST CHARGING
One of the USB 3.0 Type-A ports is a fast-charge port, so you can charge your mobile devices faster
than you can from a standard USB port.

• CUTTING-EDGE DESIGN
Advanced heat-eliminating design is the perfect solution to expand your laptop into a full-sized workstation without the worry of overheating and with the double-sided cable storage compartment, you can place the cable any way you like.

SYSTEM REQUIREMENTS

• Microsoft® Windows® 10 / macOS® 10.11 or later
• Intel® HD Graphics 505 / AMD Radeon R5
• Available USB-C port that supports DisplayPort Alt Mode and USB Power Delivery 2.0 or 3.0
Please refer to the manufacturer of your hardware for more information on your device
• Extended Monitor System Requirements: (Higher processor recommended for multiple displays)
o One 2K (2048 x 1152 @ 60 Hz) full-screen video playback
CPU: Intel® Core i5 Quad Core
RAM: 4 GB memory or higher
o Two 2K (2048 x 1152 @ 60 Hz) full-screen video playback
CPU: Intel® Core i7 Quad Core
RAM: 8 GB memory or higher

HARDWARE SPECIFICATIONS

Warranty: 2 Year Limited
Host Connector: USB-C Male

Video Output:
2 – HDMI Female
1 – DisplayPort Female
1 – VGA Female

Power Source: Bus-powered or Self-powered
Network Interface: RJ45 (Gigabit Ethernet)
Audio Supported: Yes
USB-C Pass-Through: Yes

Ports
2 – USB 3.0 Type-A
1 – USB 3.0 Type-A fast charge
1 – USB-C 3.1 Gen 1
1 – USB-C Power Delivery 3.0
2 – 4K HDMI
1 – DisplayPort
1 – VGA

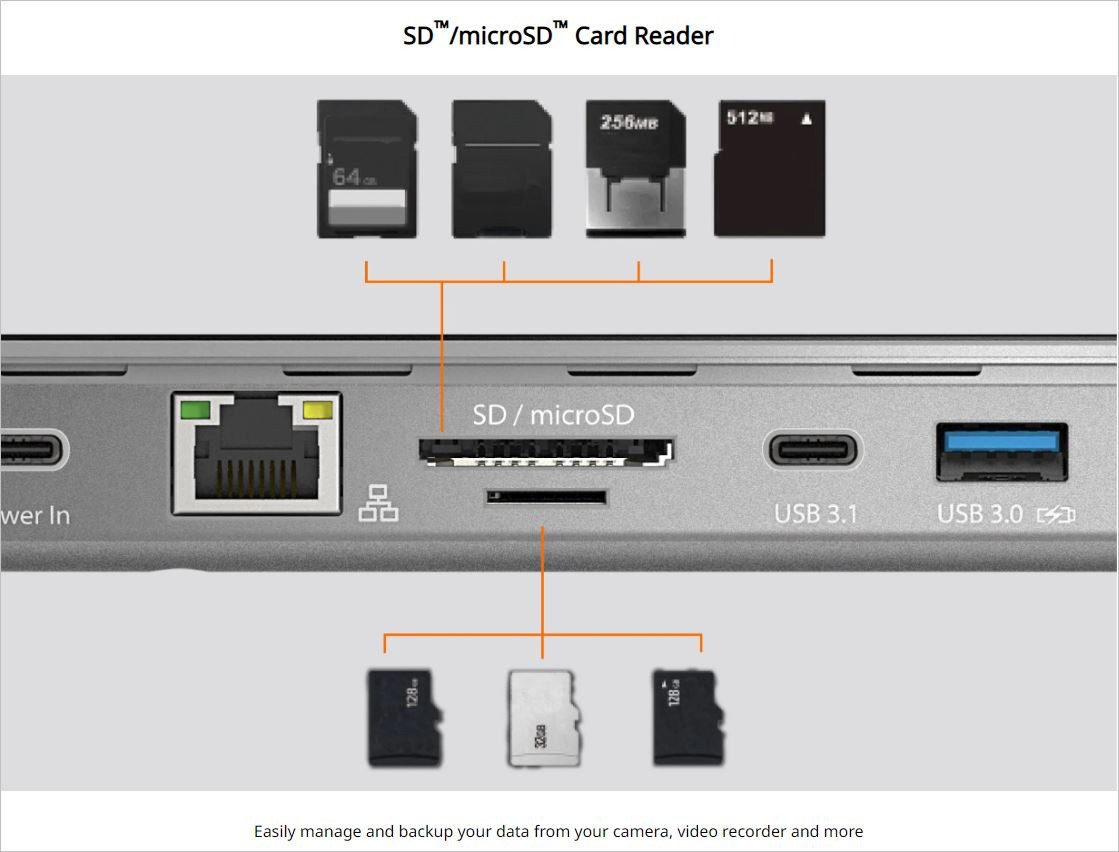

1 – SD & microSD memory card reader/writer
1 – RJ45 Gigabit Ethernet
1 – 3.5 mm combo audio jack

PERFORMANCE
Maximum Display Resolution:
HDMI/DisplayPort 3840 x 2160
VGA: 1920 x 1080

Maximum Display Refresh Rate:
HDMI/DisplayPort 4K: 30 Hz
HDMI/DisplayPort 1080p: 60 Hz
VGA: 60 Hz

Maximum Data Transfer Rate: 5 Gbps
Displays Supported: 3 (HDMI, VGA and DisplayPort or HDMI)
Compatible Networks: 10/100/1000 Mbps
Audio Channel: 2.1 via HDMI/DisplayPort/3.5 mm Aux


POWER
Power Delivery: Up to 100W via USB-C
Power Consumption: ≤ 900 mA
Input Current: Up to 5A
Input Voltage: Up to 20V
Output Current: Up to 4.75A
Output Voltage: Up to 20V

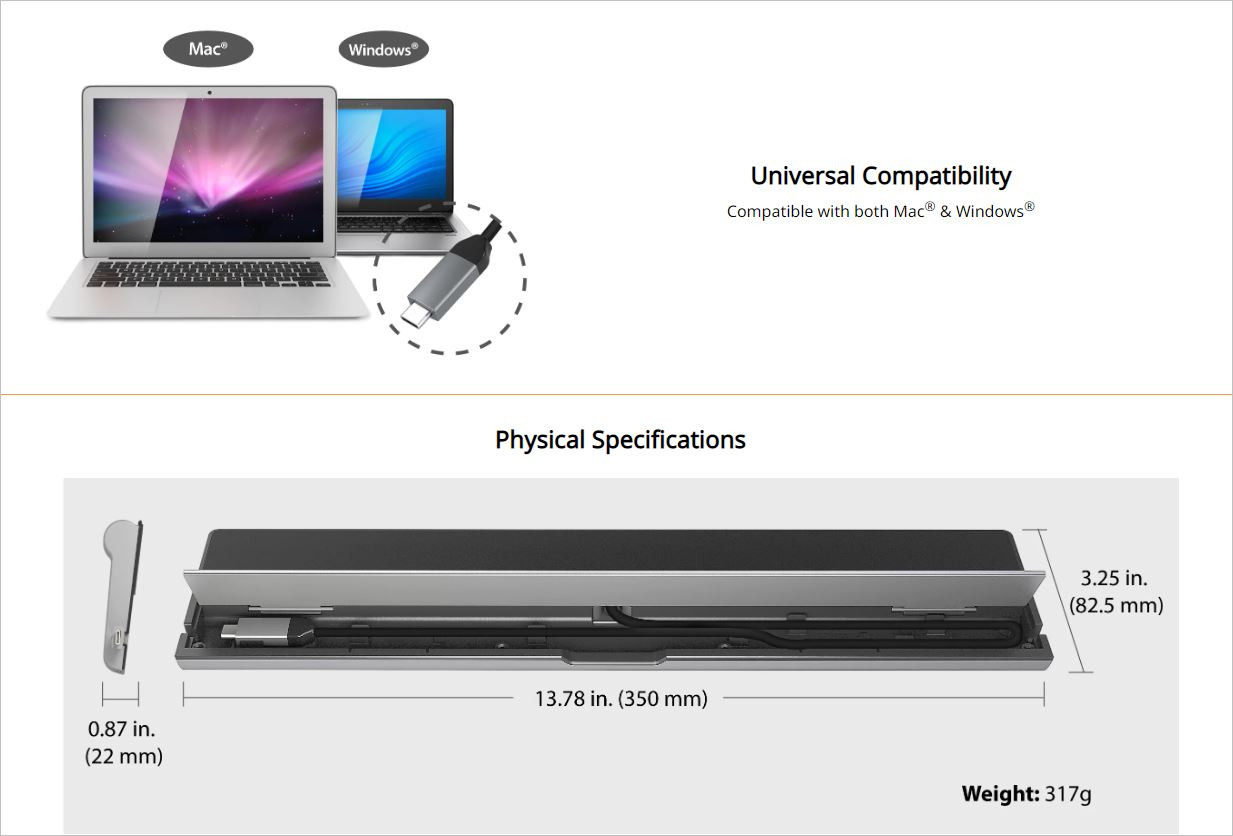

PHYSICAL SPECIFICATIONS

Color: Silver, Black
Enclosure Type: Aluminum
Cable Length: 1.48 ft (45 cm)
Product Height: 0.92 in. (23.37 mm)
Product Width: 3.25 in. (82.5 mm)
Product Depth: 13.78 in. (350 mm)
Product Weight: 10.58 oz (300g)
Storage Temperature: 14 to 149°F (-10 to 65°C)
Storage Humidity: < 85% non-condensing
Operating Temperature: 32 to 118°F (0 to 48°C)
Operating Humidity: < 85% non-condensing
