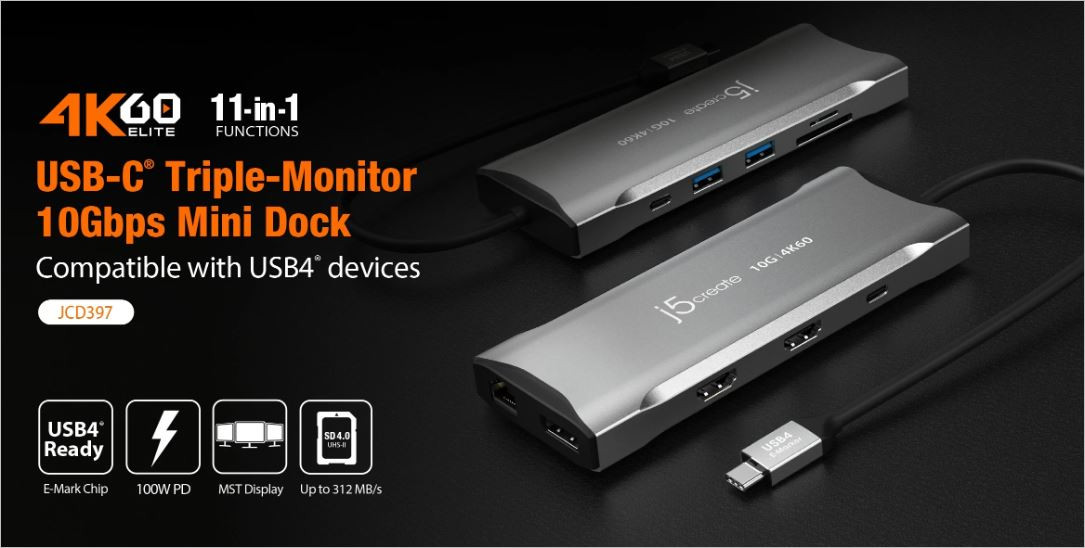

J5create JCD397 4K60 Elite USB-C® Triple-Monitor 10Gbps Mini Dock

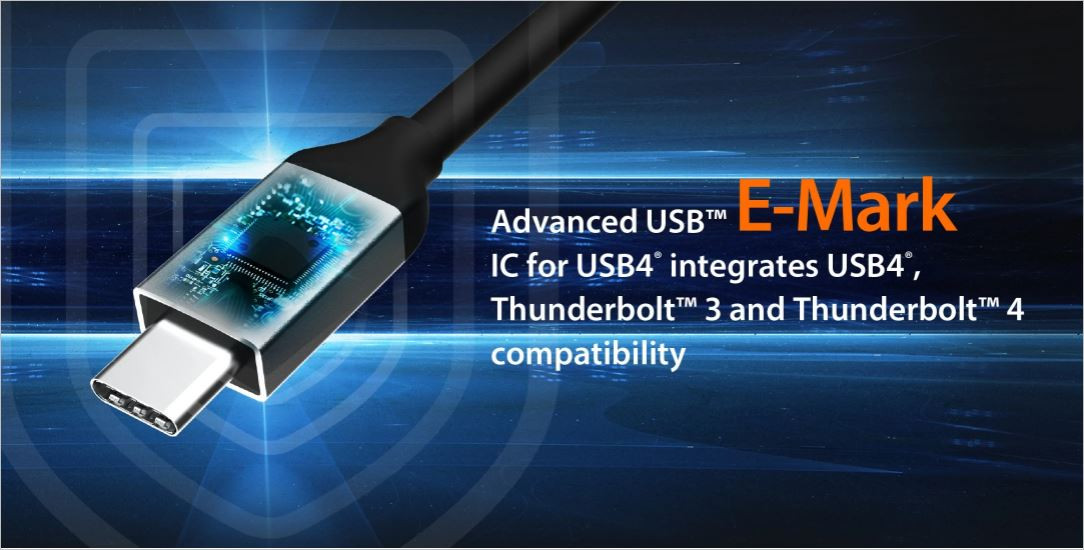

Equipped with an advanced USB-C® E-Mark chip, this multi-monitor mini dock is compatible with USB4® hosts and devices, featuring everything you need, from triple video outputs to 10Gbps USB ports, as well as 100W Power Delivery pass-through charging.

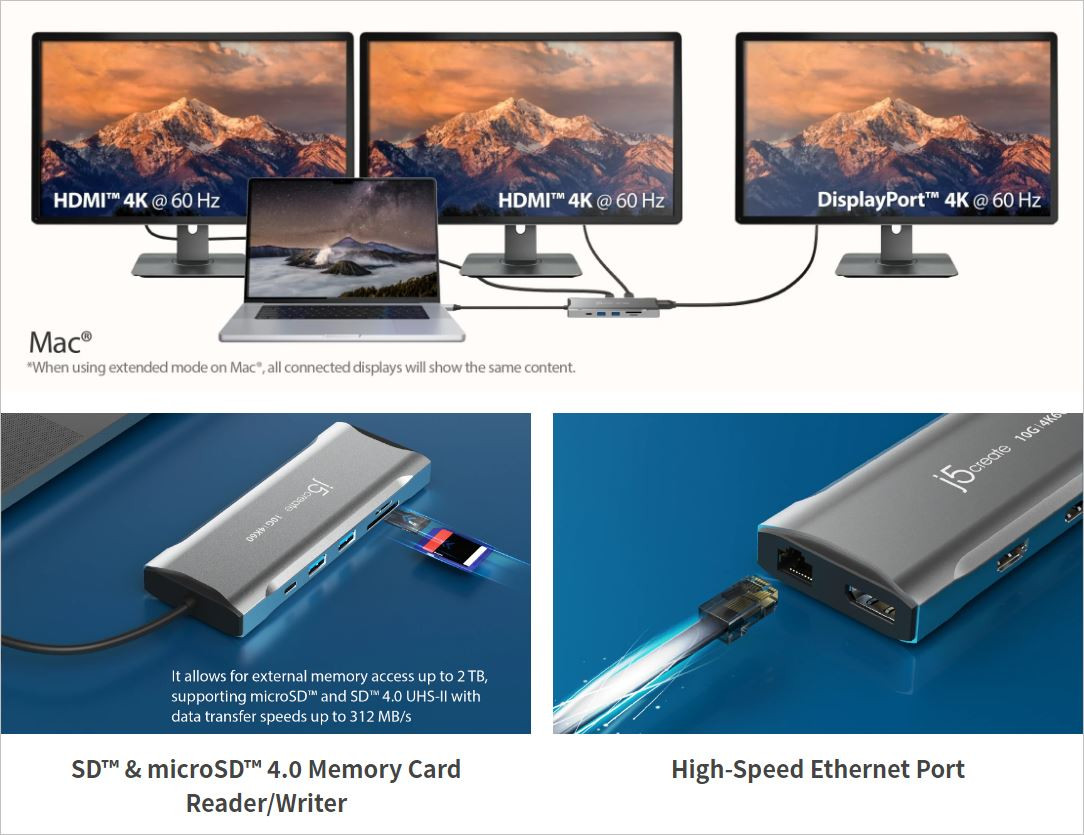

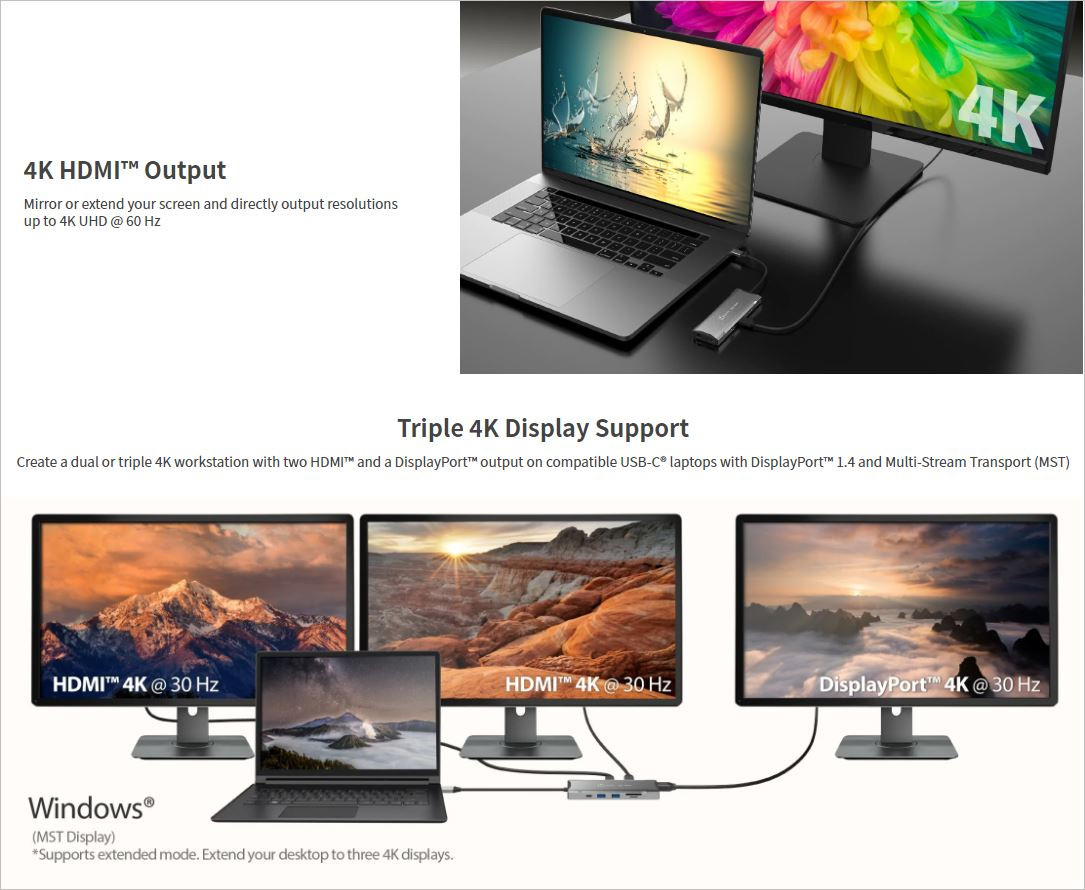

This USB-C® mini dock supports DisplayPort 1.4 and Multi-Stream Transport (MST), giving you the ability to create a dual or triple 4K workstation with two HDMITM and a DisplayPort output. It provides three USBTM SuperSpeed 10 Gbps ports (2 USB-C® and 1 USB Type-A) for peripheral connectivity or downstream charging, an SD & microSD 4.0 memory card reader/writer to manage your media files, and a Gigabit Ethernet port to access a wired network. It also supports Power Delivery 3.0, providing up to 100W pass-through charging to power the connected peripherals and charge your host laptop with a USB-C® power adapter.


SYSTEM REQUIREMENTS

• Available USB-C® port that supports DisplayPort alternate mode and USB Power Delivery 2.0 or 3.0
• Please refer to the manufacturer of your computer for more information about your device
• The host device must support Multi-Stream Transport (MST) and DisplayPort 1.4 to achieve triple-
• monitor configuration
• The host device must support DisplayPort 1.4 to achieve 4K resolution at 60 Hz, main
• DisplayPort 1.4 devices are listed as follows:
  • MacBook Air® 13" 2019 or later
  • MacBook Pro® 15" 2017 or later
  • MacBook Pro® 16"
  • iPad Pro® 11"/12" 2018 or later
  • SurfaceTM Pro 7
  • SurfaceTM laptop 3


HARDWARE
Warranty: 2 Year Limited
Host Connector: 1 – USB-C®  Male
Video Output: 2 – HDMI Female, 1 – DisplayPort Female
Power Source: Bus-powered or self-powered
Network Interface: RJ45 (Gigabit Ethernet)
Audio Supported: Yes

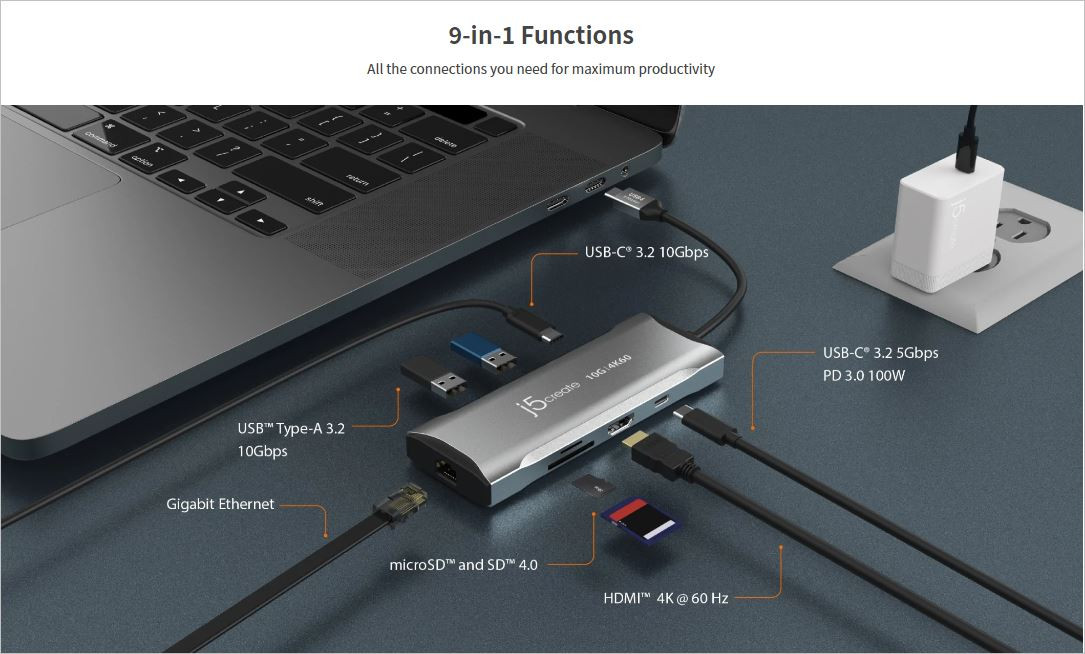

Ports

• 1 – USB-C® 10Gbps
• 1 – USB-C® 5Gbps with Power Delivery 3.0
• 2 – USBTM Type-A 10Gbps
• 1 – USB-C® Power Delivery 3.0
• 2 – 4K HDMI
• 1 – DisplayPort
• 1 – SDTM & microSD 4.0 memory card reader/writer
• 1 – RJ45 Gigabit Ethernet


PERFORMANCE
Maximum Display Resolution: 3840 x 2160

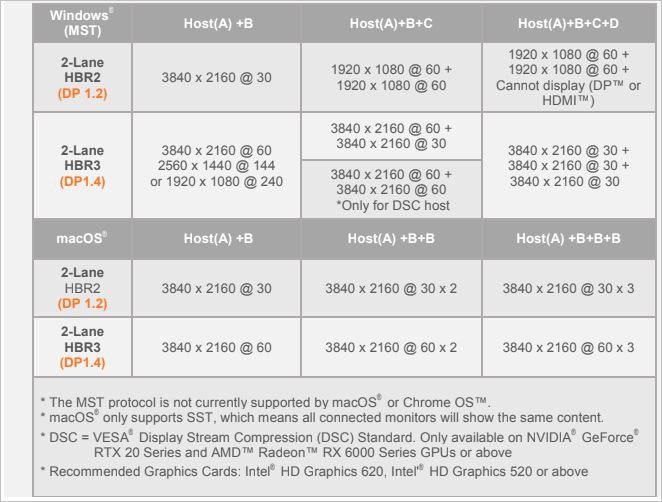

Maximum Display Refresh Rate:
Windows® (MST)
– 3840 x 2160 @ 60
– 2560 x 1440 @ 144 via HDMI
– 1920 x 1080 @ 240 via DP

Maximum Data Transfer Rate: 10Gbps
Displays Supported: 3
Compatible Networks: 10/100/1000 Mbps
Audio Channel: 2.1 via HDMI

POWER
Power Delivery: Up to 100W via USB-C®
Power Consumption: 650 mA
Input Current: Up to 5A
Input Voltage: Up to 20V
Output Current: Up to 4.25A
Output Voltage: Up to 20V

PHYSICAL SPECIFICATIONS
Color: Space Grey
Enclosure Type: Aluminum
Cable Length: 7.87 in. (20 cm)
Product Height: 5.8 in. (148 mm)
Product Width: 2.17 in. (55 mm)
Product Depth: 0.67 in. (17 mm)
Product Weight: 4.36 oz (123.5g)
Storage Temperature: 0 to 155°F (-17 to 68°C)
Storage Humidity: < 85% non-condensing
Operating Temperature: 30 to 116°F (-1 to 41°C)
Operating Humidity: < 85% non-condensing
