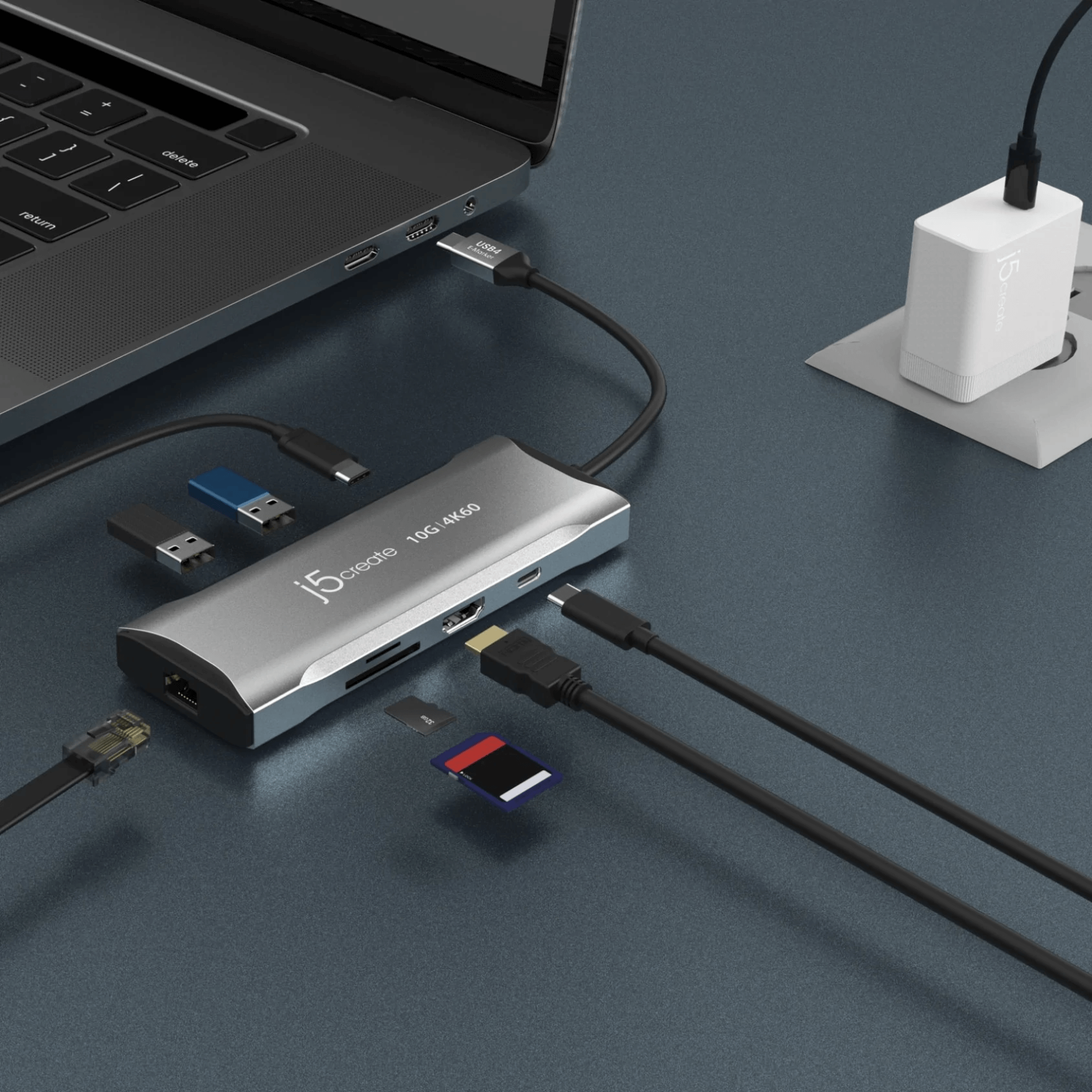

J5create JCD393 4K60 Elite USB-C® 10Gbps Mini Dock

RM343.00

  • Built-in advanced USB-C® E-Mark integrates USB4, Thunderbolt 3 and Thunderbolt 4 compatibility
  • Backward compatible with USB 3.2/3.1
  • Features a 4K HDMI output, supporting video resolutions up to 3840 x 2160 at 60 Hz
  • Maximize your gaming experience with 1920 x 1080 @ 144 Hz refresh rate
  • Extending one display up to 3840 x 2160 @ 60 Hz, easily switch to a higher refresh rate of 2560 x 1440 @ 120 Hz via HDMI port to enjoy your gaming under Windows® OS
  • Three SuperSpeed USB 10Gbps downstream ports (1 USB-C® and 2 Type-A) to connect peripherals
  • Charge and power connected laptop and peripherals with 100W Power Delivery
  • SD & microSD 4.0 memory card reader/writer for media storage and transfer
  • Easily add a wired network connectivity with the Gigabit Ethernet port
  • Plug-and-play, no driver installation required

10 in stock

SKU: JCD393 Category: Tag:
J5create

Featuring all the ports you need, the 4K60 Elite USB-C® 10Gbps Mini Dock is equipped with an advanced USB-C® E-Mark chip for compatibility with USB4TM, Thunderbolt 3, and Thunderbolt 4 hosts and devices.

This USB-C® 10Gbps mini dock with DisplayPort 1.4 support lets you easily connect a 4K 60Hz display. It includes three USB SuperSpeed 10Gbps ports (1 USB-C® and 2 USBTM Type-A) for peripheral connectivity or downstream charging, an SDTM & microSD 4.0 memory card reader/writer to manage your media files, and a Gigabit Ethernet port to access a wired
network.

The adapter also supports Power Delivery 3.0, which provides up to 100W pass-through charging to power the connected peripherals and charge your host laptop with a USB-C® power adapter.


SYSTEM REQUIREMENTS

  • Available USB-C® port that supports DisplayPort alternate mode and USB Power Delivery 2.0 or 3.0 Please refer to the manufacturer of your computer for more information about your device
  • The host device must support DisplayPort 1.4 to achieve 4K resolution at 60 Hz. Example DisplayPort 1.4 devices are listed as follows, but not limited to:

• Macbook Air® 13" 2019 or later
• Macbook Pro® 15" 2017 or later
• Macbook Pro® 16"
• iPad Pro® 11"/12" 2018 or later
• SurfaceTM Pro 7
• SurfaceTM laptop 3

HARDWARE
Warranty: 2 Year Limited
Host Connector: 1 – USB-C® Male
Video Output: 1 – HDMITM Female
Power Source: Bus-powered or self-powered
Network Interface: RJ45 (Gigabit Ethernet)
Audio Supported: Yes

Ports

  • 1 – USB-C® SuperSpeed 10Gbps
  • 2 – USBTM Type-A SuperSpeed 10Gbps
  • 1-USB-C® Power Delivery 3.0 & USBTM 5Gbps data transfer
  • 1 – 4K HDMITM
  • 1 – SDTM & microSD 4.0 memory card reader/writer
  • 1 – RJ45 Gigabit Ethernet


PERFORMANCE
Maximum Display Resolution: 3840 x 2160
Maximum Display Refresh Rate:

  • 3840 x 2160 @ 60 Hz
  • 2560 x 1440 @ 120 Hz
  • 1920 x 1080 @ 144 Hz
  • (Windows®)

Maximum Data Transfer Rate: 10Gbps
Displays Supported: 1
Compatible Networks: 10/100/1000 Mbps
Audio Channel: 2.1 via HDMI

POWER
Power Delivery: Up to 100W via USB-C®
Power Consumption: 400 mA
Input Current: Up to 5A
Input Voltage: Up to 20V
Output Current: Up to 4.25A
Output Voltage: Up to 20V


Weight 0.2 kg
Dimensions 17 × 4 × 11 cm
