The JCD371 provides extra connectivity for your MacBook®, or other USB-C® laptop. This pocket-sized multi-adapter with two USB 3.0 Type-A ports allow you to connect an external keyboard, mouse, or USB flash drive. With up to
5Gbps of high-speed transmission, data transfer is quick and easy.
The HDMI port allows you to mirror or extend your screen and directly stream 4K UHD or Full HD 1080p video to an HDTV, monitor, or projector. The USB-C® power delivery port allows you to connect a USB-C® power adapter for charging your personal laptop.
SYSTEM REQUIREMENTS
Available DisplayPort Alt Mode over USB-C® port
Available USBTM Power Delivery over USB-C® to support upstream charging
HARDWARE SPECIFICATIONS
Warranty: 2 Year Limited
Host Connector: 1 – USB-C® Male
Video Output: 1 – HDMITM Female
Power Source: Bus-powered or self-powered
Network Interface: N/A
Audio Supported: Yes

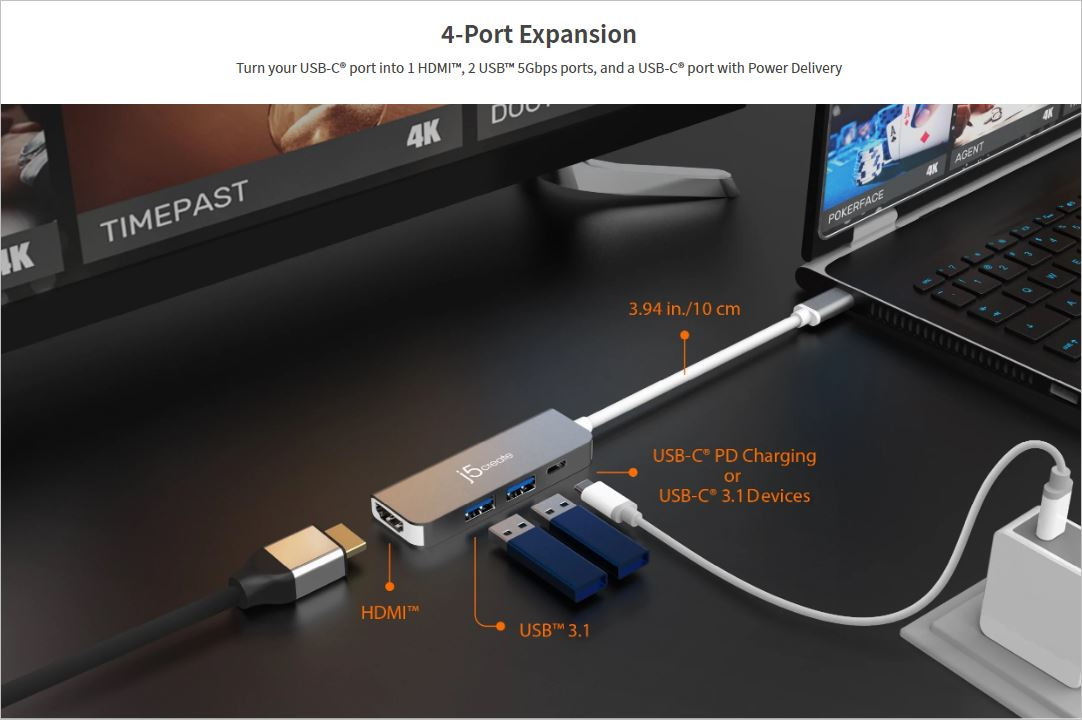

Ports
2 – USBTM Type-A 3.1 Gen 2
1 – USB-C® power delivery 2.0
1 – 4K HDMI
PERFORMANCE
Maximum Display Resolution: 3840 x 2160 @ 30 Hz
Maximum Display Refresh Rate: 30 Hz
Maximum Data Transfer Rate: 5Gbps
Displays Supported: 1
Compatible Networks: N/A
Audio Channel: 2.1 via HDMI
POWER
Power Delivery: Up to 60W via USB-C®
Power Consumption: 500 mA

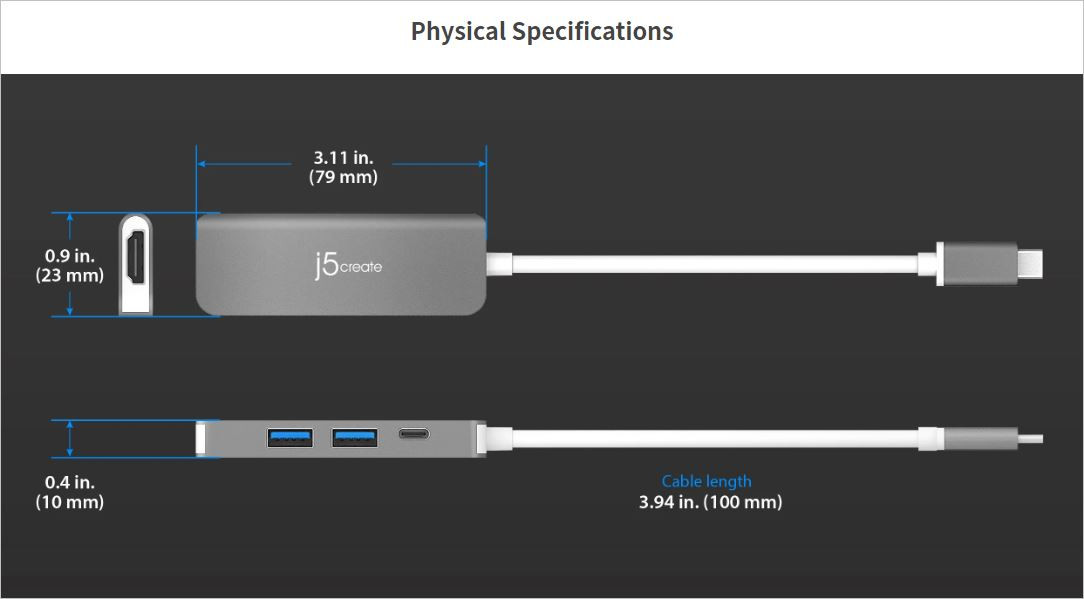

PHYSICAL SPECIFICATIONS
Color: Space Grey
Enclosure Type: Aluminum, ABS Plastic
Cable Length: 3.94 in. (100 mm)
Product Height: 3.11 in. (79 mm)
Product Width: 0.9 in. (23 mm)
Product Depth: 0.4 in. (10 mm)
Product Weight: 1.13 oz (32g)
Storage Temperature: 0 to 155°F (-17 to 68°C)
Storage Humidity: < 85% non-condensing
Operating Temperature: 30 to 106°F (-1 to 41°C)
Operating Humidity: < 85% non-condensing
SPECIAL NOTES
- A 4K-capable display is required for obtaining the 3840 x 2160 resolution
- The adapter can connect to a USB 3.1 Gen 1 or USBTM 3.0 port that supports DisplayPort Alt mode but it will only provide up to 5Gbps transfer rates
PACKAGE CONTENTS
- 1 – JCD371 USB-C® to HDMI & USB 3.1 2-Port with Power Delivery
- 1 – Quick Installation Guide (QIG)
