1-Year Official Warranty by Hollyland Malaysia
*****************************************************

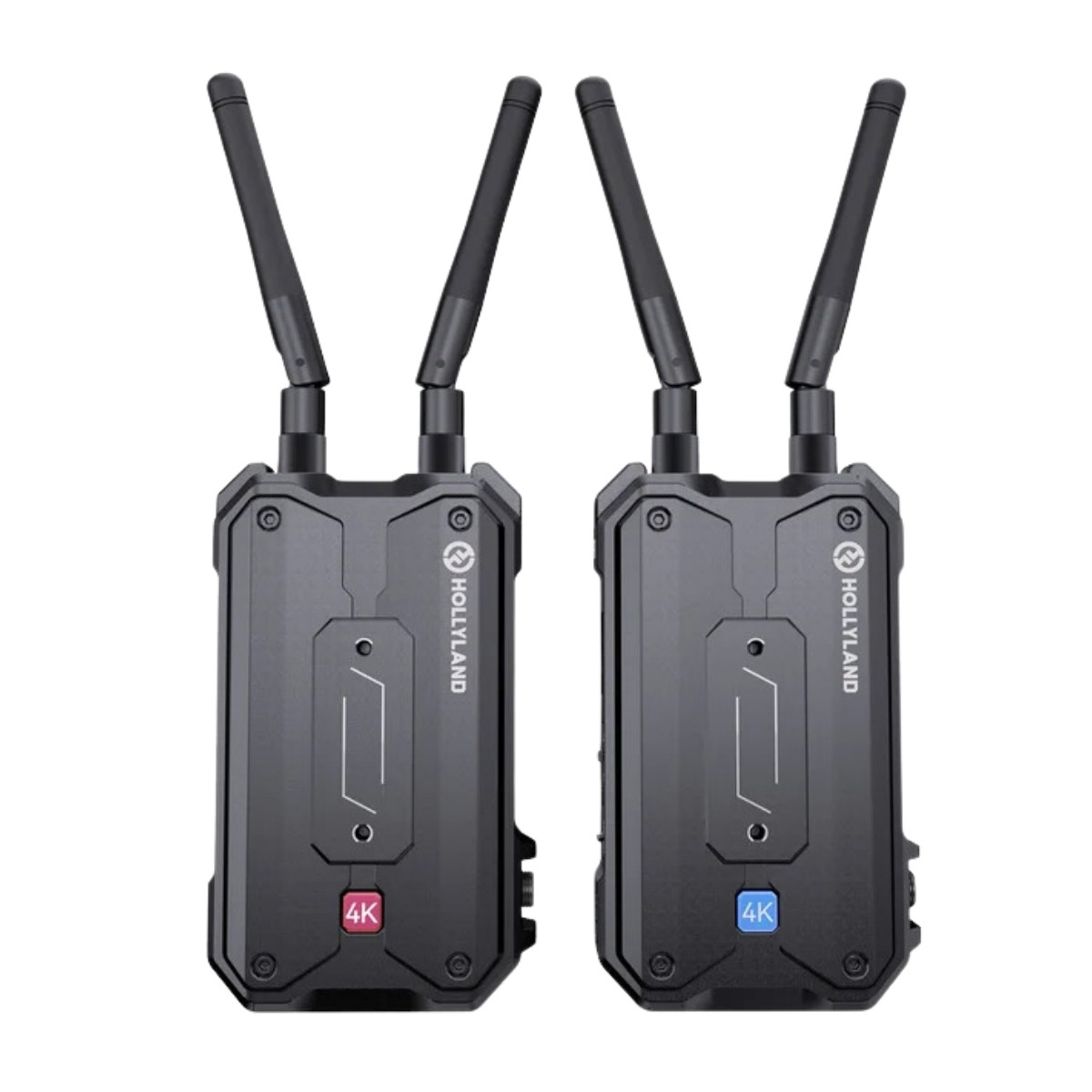

Hollyland Pyro H Wireless Video Transmission System HDMI
Specifications
Transmitter
Port
-
DC Input: 2.0mm Core Socket
-
HDMI Input: HDMI 1.4b
-
HDMI Loopout: HDMI 1.4b
-
USB-C: USB 2.0 OTG
-
Antenna: SMA Male
Power Supply
-
USB-C: 5V/2A (not supported in Broadcast mode)
-
Battery Voltage Range: 6.8 – 8.4V
-
DC Voltage Range: 6 – 16V
Power Consumption
-
<7W
Net Weight
-
192g
Dimensions
-
L × W × H: 109 × 62.3 × 33.4mm (4.3 × 2.45 × 1.3in.)
Input/Output Format
HDMI
-
720p50/59.94/60
-
1080i50/59.94/60
-
1080p23.98/24/25/29.97/30
-
1080p50/59.94/60
-
4K30/25/24
HDMI Loopout
-
720p50/60
-
1080i50/60
-
1080p24/25/30
-
1080p50/60
-
4K30/25/24
Operating Frequency
5 GHz Frequency Band
-
5.150 – 5.250 GHz
-
5.250 – 5.350 GHz
-
5.470 – 5.725 GHz
-
5.725 – 5.850 GHz
2.4 GHz Frequency Band
-
2.412 – 2.484 GHz
Transmit Power
-
< 23 dBm
Receiver Sensitivity
-
/
Latency
-
0.06s (test data when 1080p60 signals are transmitted in a laboratory)
Range
-
1,300ft (400m)(test data in an open, interference-free environment)
Bandwidth
-
20 MHz (Broadcast: 40 MHz)
Receiver
Port
-
DC Input: 2.0mm Core Socket
-
HDMI Loopout: HDMI 1.4b
-
USB-C: USB 2.0 OTG
-
Antenna: SMA Male
Power Supply
-
USB-C: 5V/2A (not supported in Broadcast mode)
-
Battery Voltage Range: 6.8 – 8.4V
-
DC Voltage Range: 6 – 16V
Power Consumption
-
< 4W
Net Weight
-
192g
Dimensions
-
L × W × H: 109 × 62.3 × 33.4mm (4.3 × 2.45 × 1.3in.)
Input/Output Format
HDMI
-
720p50/60
-
1080i50/60
-
1080p24/25/30
-
1080p50/60
-
4K30/25/24
Operating Frequency
5 GHz Frequency Band
-
5.150 – 5.250 GHz
-
5.250 – 5.350 GHz
-
5.470 – 5.725 GHz
-
5.725 – 5.850 GHz
2.4 GHz Frequency Band
-
2.412 – 2.484 GHz
Transmit Power
-
/
Receiver Sensitivity
-
-85 dBm (Broadcast: -80 dBm)
Latency
-
0.06s (test data when 1080p60 signals are transmitted in a laboratory)
Range
-
1,300ft (400m)(test data in an open, interference-free environment)
Bandwidth
-
20 MHz (Broadcast: 40 MHz)
