Hollyland Mars 400S Pro 2 Wireless Transmission – Mars 400 Pro II

1-Year Official Warranty by Hollyland Malaysia

***************************************************

Hollyland Mars 400S Pro 2 Wireless Transmission

Specifications

TRANSMITTER

[Interfaces]

HDMI Input (Type A Female)
SDI Input
2* Antenna Interfaces (RP-SMA Male)
DC Input
USB Type-C

[Supply Interfaces]

DC Power Input: 6-16V
USB Type-C Power Supply: 5V/2A
Battery Power Supply: 6-16V DC

[Power Consumption]

<11W

[Weight]

206g

[Dimension]

(L*W*H): 110*72*33.5mm
(The Battery Plate Exclude)

[Input
Video Format]

HDMI:
720p50/59.94/60
1080i50/59.94/60
1080p23.98/24/25/29.97/30
1080p50/59.94/60

SDI:
1080p60/59.94/50(Level A)
1080p60/59.94/50(Level B)
1080i60/59.94/50
1080p30/29.97/25/24/23.98
1080psf24/23.98
1080psf30/29.97/25
720p60/59.94/50

[Frequency]

5GHz

[Transmission Power]

≤21+/-1.5dBm

[Receiver Sensitive]

/

[Transmission Latency*]

HD Mode: 70ms
Focus: 56ms

[Bandwidth]

20MHz

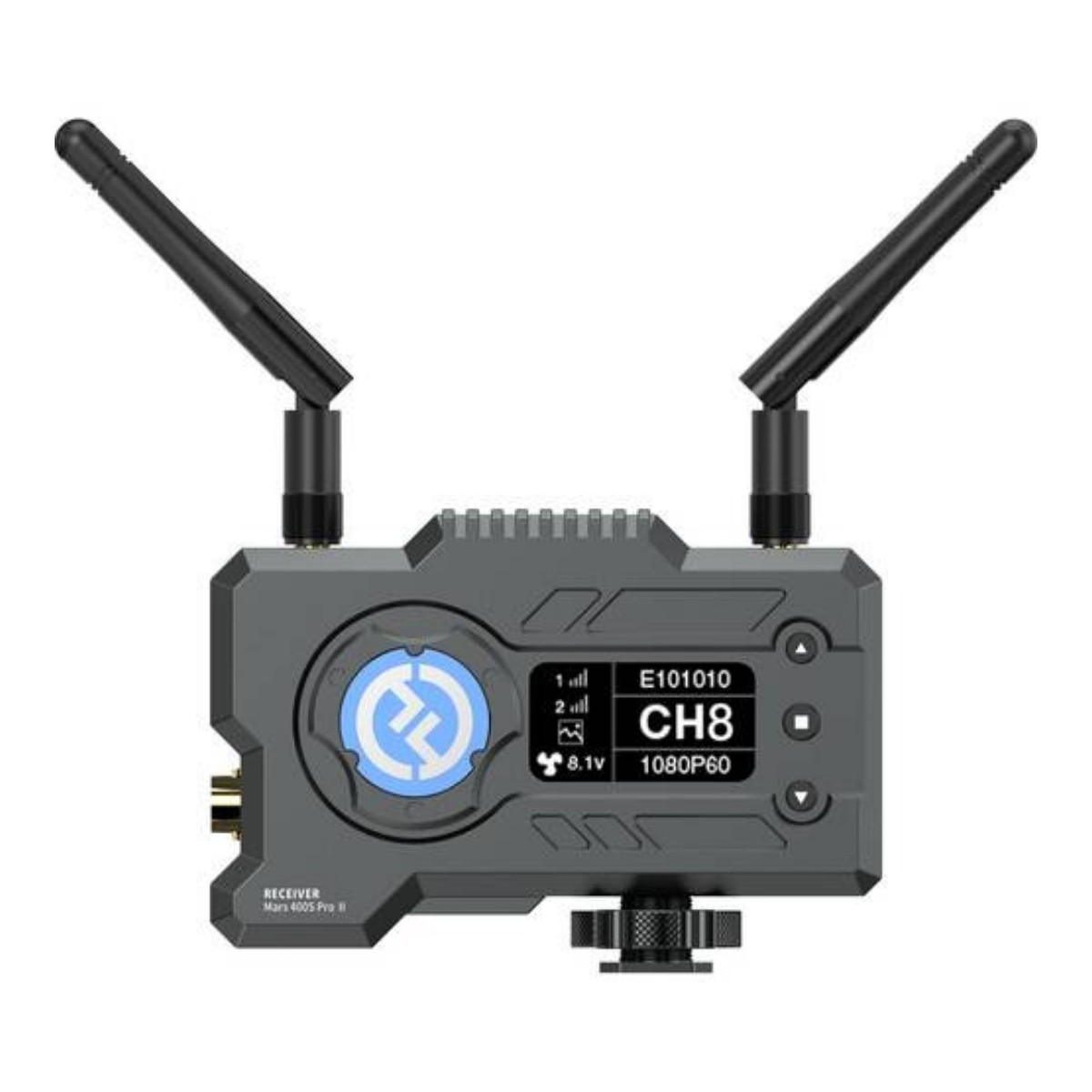

RECEIVER

[Interfaces]

HDMI Output (Type A Female)
SDI Output
2* Antenna Interfaces (RP-SMA Male)
DC Input
USB Type-C

[Supply Interfaces]

DC Power Input: 6-16V
USB Type-C Power Supply: 5V/2A
Battery Power Supply: 6-16V DC

[Power Consumption]

<7W

[Weight]

206g

[Dimension]

(L*W*H): 110*72*33.5mm
(The Battery Plate Exclude)

[Output
Video Format]

HDMI:
720p50/60
1080i50/60
1080p24/25/30
1080p50/60

SDI:
1080p60/50(Level A)
1080i60/50
1080p30/25/24
1080psf24
720p60/50

[Frequency]

5GHz

[Transmission Power]

/

[Receiver Sensitive]

-80dBm

[Transmission Latency*]

HD Mode: 70ms
Focus: 56ms

[Bandwidth]

20MHz
