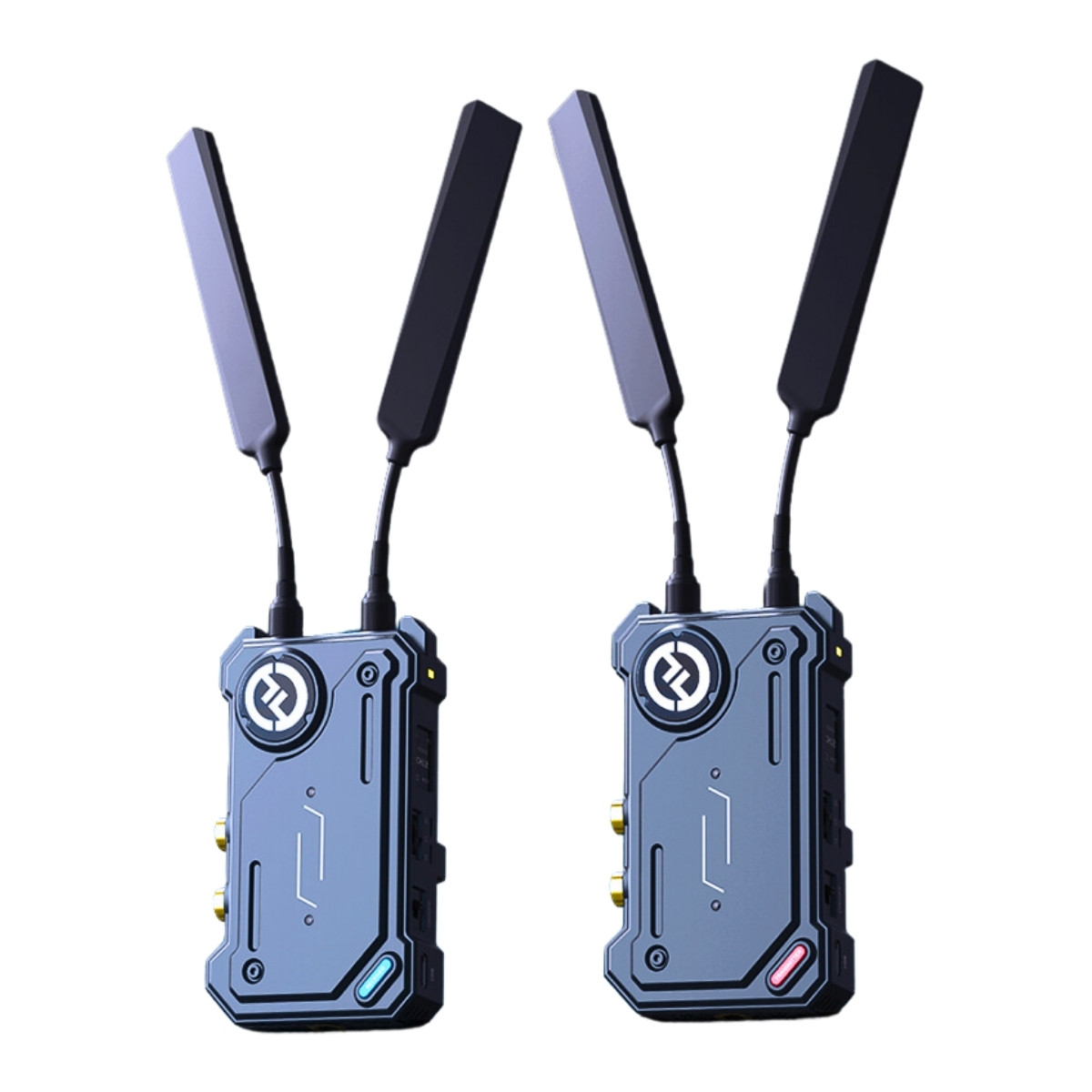

Hollyland Cosmo C1 SDI/HDMI Wireless Video Transmission System

1-Year Official Warranty by Hollyland Malaysia

****************************************************

Hollyland Cosmo C1 SDI/HDMI Wireless Video Transmission System



Specifications

TRANSMITTER

[ Interface ]

Antenna Interface (RP-SMA Male)
HDMI Input (Type A Female)
SDI Input
SDI Loopout
DC Input
USB-C

[ Power Supply ]

DC Power Input: 6–16V
USB-C Power Supply: 5V/2A
Battery Power Supply: 6-16V

[ Power Consumption ]

<9W

[ Weight ]

214g (7.5oz) (Exterior Antenna Excluded)

[ Dimensions ]

(L x W x H) 115mm x 70mm x 32mm (4.5" x 2.7" x 1.3")
(Battery Plate Excluded)

[ Input/Output Video Format ]

HDMI:
480p60
576p50
720p50/59.94/60
1080i50/59.94/60
1080p23.98/24/25/29.9/30
1080p50/59.94/60
SDI:
1080p60/59.94/50 (Level A)
1080p60/59.94/50 (Level B)
1080i60/59.94/50
1080p30/29.97/25/24/23.98
1080psf25
720p60/59.94/50
1080psf24/23.98

[ Frequency ]

5.1GHz–5.8GHz

[ TX Power ]

Maximum 22dBm

[ RX Sensitivity ]

/

[ Transmission Latency ]

0.04s

[ Bandwidth ]

20MHz





RECEIVER

[ Interface ]

Antenna Interface (RP-SMA Male)
HDMI Output (Type A Female)
SDI Output *2
DC Input
USB-C

[ Power Supply ]

DC Power Input: 6–16V
USB-C Power Supply: 5V/2A
Battery Power Supply: 6-16V

[ Power Consumption ]

<9W

[ Weight ]

210g (7.4oz) (Exterior Antenna Excluded)

[ Dimensions ]

(L x W x H) 115mm x 70mm x 32mm (4.5" x 2.7" x 1.3")
(Battery Plate Excluded)

[ Input/Output Video Format ]

HDMI:
480p60
576p50
720p50/60
1080i50/60
1080p24/25/30
1080p50/60
SDI:
1080p60/50 (Level A)
1080i60/50
1080p30/25/24
1080psf25/24
720p60/50

[ Frequency ]

5.1GHz–5.8GHz

[ TX Power ]

/

[ RX Sensitivity ]

–80dBm

[ Transmission Latency ]

0.04s

[ Bandwidth ]

20MHz
