FiiO K13 R2R DAC and Headphone Amplifier

1-Year Official Warranty by FiiO Malaysia

********************************

FiiO K13 R2R DAC and Headphone Amplifier

[ PRODUCT DESCRIPTION ]



Experience true analogue-like sound with the FiiO K13 R2R desktop DAC & headphone amplifier — designed for audiophiles who want musical warmth, detail, and power in one elegant unit.

Built with a fully differential 24-bit R2R resistor ladder DAC architecture, the K13 R2R delivers a rich, natural, and smooth sound signature that stands out from typical delta-sigma DACs. Switch between NOS (Non-Oversampling) mode for a more organic, vintage-style presentation, or Oversampling (OS) mode for cleaner and more precise detail retrieval — the choice is yours.

With high output power (up to 2400mW per channel @ 32Ω balanced), it easily drives demanding headphones while maintaining excellent control and dynamics. Whether you use IEMs or full-size headphones, the K13 R2R provides clean, powerful amplification with low noise performance.

Equipped with USB, optical, and coaxial inputs, plus balanced and single-ended outputs, it fits perfectly into any desktop HiFi setup. You can also fine-tune your sound with built-in PEQ adjustments via the FiiO Control app.

Finished with a premium aluminium chassis, HD display, and customizable RGB lighting, the K13 R2R not only sounds amazing — it looks stunning on your desk too.

Upgrade your listening experience today with the FiiO K13 R2R — where analogue soul meets modern performance.



[ KEY FEATURES ]

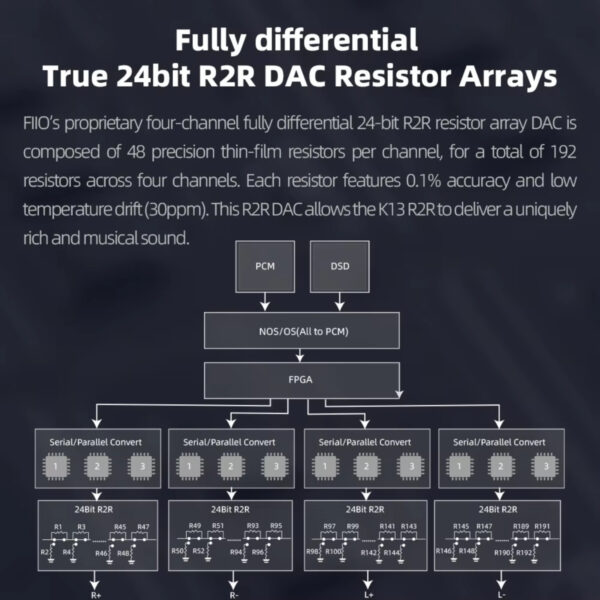

• True 24‑bit Fully Differential R2R DAC – Uses FiiO’s proprietary resistor ladder architecture (192 precision thin‑film resistors) for rich, musical sound with low noise and distortion.

• Dual NOS / Oversampling Modes – Switch between NOS for a natural, analogue‑like presentation and Oversampling (OS) for refined clarity and detail.

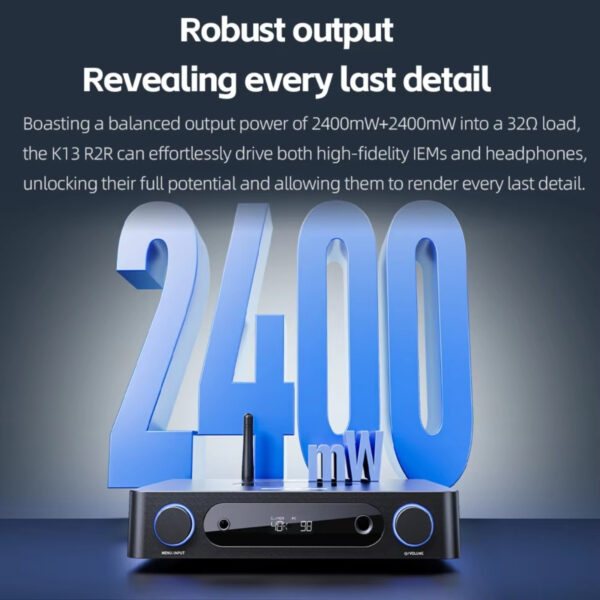

• High‑Power Amplification – Delivers robust output (up to ~2400 mW per channel on balanced at 32 Ω) to drive a wide range of headphones and IEMs.

• Versatile Connectivity & Control – Multiple digital inputs (USB‑C, optical, coaxial), balanced and single‑ended outputs, plus 10‑band PEQ customization via the FiiO Control app.

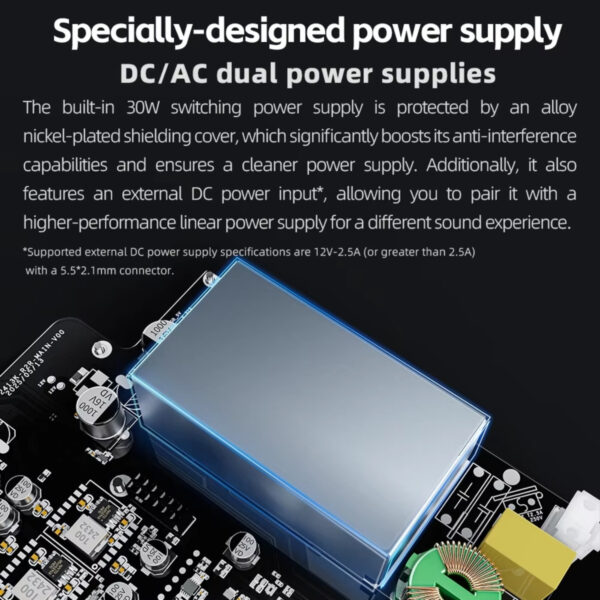

• Premium Power & Build Quality – Dual power supply design with low‑noise regulators, shielded switching PSU, high‑grade capacitors, plus a clear HD display and adjustable RGB lighting.



[ FAQs ]



What type of DAC does the K13 R2R use?
➤ It uses a fully differential 24-bit R2R resistor ladder DAC design for a more natural and analogue-like sound.

What is the difference between NOS and OS mode?
➤ NOS (Non-Oversampling) gives a warmer, smoother sound.

➤ OS (Oversampling) provides clearer detail and sharper resolution.

How powerful is the K13 R2R?
➤ It delivers up to 2400mW per channel (32Ω, balanced), powerful enough for most full-size headphones.

Can it drive high-impedance headphones (300Ω / 600Ω)?
➤ Yes, it can drive high-impedance headphones, but performance depends on the headphone’s sensitivity.

Does it support balanced output?
➤ Yes. It supports balanced and single-ended headphone outputs.

What input connections are available?
➤ USB, Optical, and Coaxial digital inputs are supported.

Can I use it with my phone?
➤ Yes, via USB connection (USB-C). Make sure your phone supports USB audio output (OTG).

Does it support Bluetooth?
➤ No, the K13 R2R is a wired desktop DAC/amp and does not have Bluetooth.

Can I adjust EQ settings?
➤ Yes, it supports PEQ adjustments via the FiiO Control app.

Is it suitable for IEMs?
➤ Yes. It has low noise performance and gain settings suitable for sensitive IEMs.
