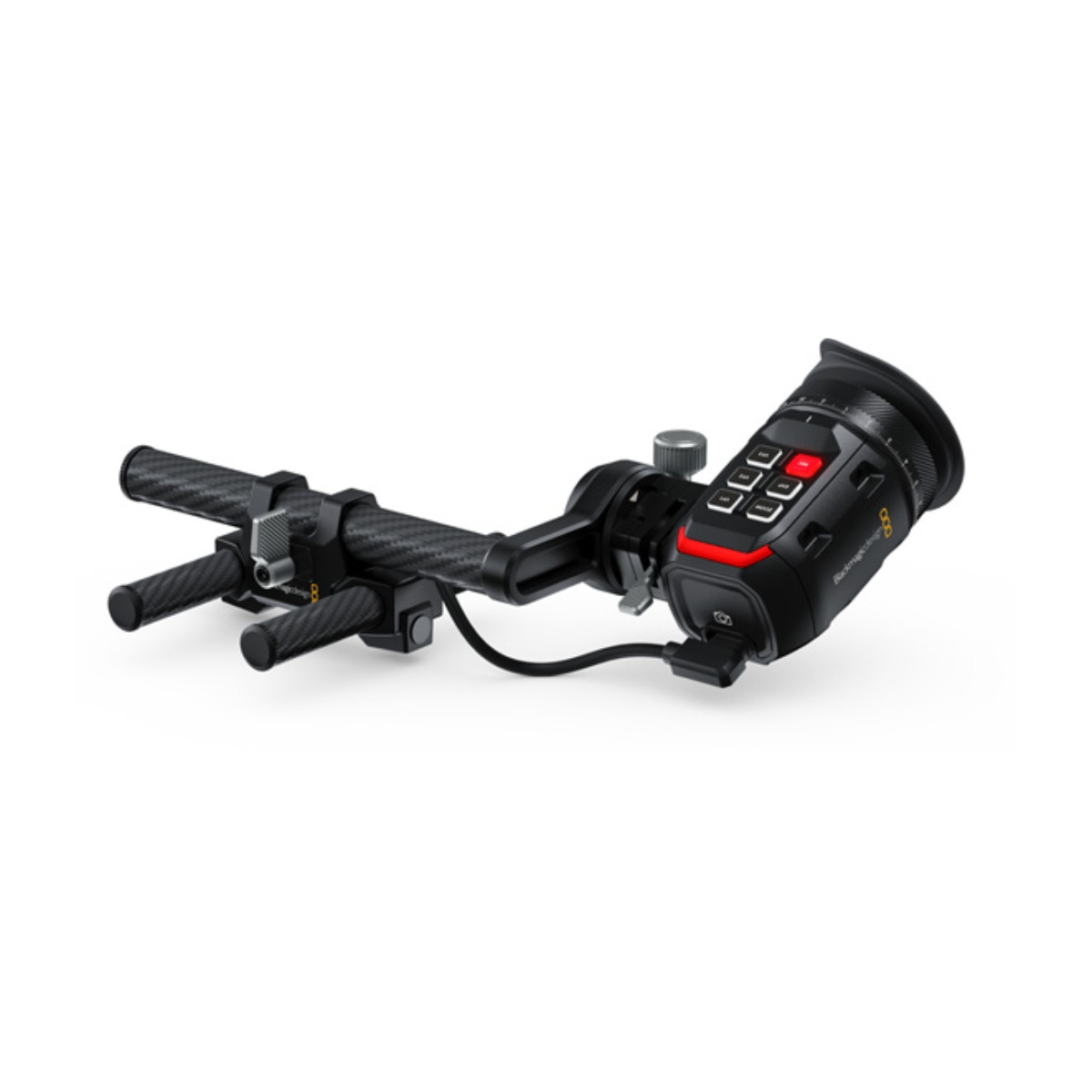

Blackmagic Design URSA Cine EVF

RM9,579.00

  • For URSA Cine 12K Cinema Camera

  • Also Works with PYXIS 6K Cameras

  • 1920 x 1080p60 Resolution OLED Display

  • USB-C Connection to Camera

  • Zoom, Exposure, Record Buttons

  • Rotating Bracket, Tally LED

  • +5/-5 Diopter, 15mm Rod Clamp

  • 19 & 15mm Carbon Fiber Rods

5 in stock

SKU: BMD-URSA-CineEVF Category: Tag:
Blackmagic Design

1-Year Official Warranty by Blackmagic Design Malaysia

****************************************************************

Blackmagic Design URSA Cine EVF



Description

Blackmagic URSA Cine EVF makes outdoors and handheld shooting with your Blackmagic URSA Cine or Blackmagic PYXIS digital film camera easy! You get a high quality 1920 x 1080 color OLED display with 4 element glass diopter for incredible accuracy with a wide focus adjustment, assignable function buttons and more. URSA Cine EVF is easy to set up with a single USB-C cable connection for video, power and camera control and can be position in multiple different ways. It also includes an extension arm to position it on a dolly or geared head.



Connections

Video Inputs: USB-C

Power Input: USB-C

Data Input / Output: USB-C

Computer Interface: USB-C for software updates.



Features

Display Resolution: Full 1920 x 1080.

Frame Rates: Up to 60fps

Display Type: OLED

Display Pixels: 6.22 Million Pixels

Color Precision: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M 2084.

Focus: 4 Element diopter.

Diopter Range: -5 to +5

Controls: Record button, Exposure Button, Zoom Button, 3 x assignable VF buttons.

Overlays: Built in overlay display processor and top mounted buttons.

Eyepiece: Can be tilted vertically and extended for left or right eye use.

Tally: LED tally light.

Mounting Options :Fully adjustable EVF mounting kit included. Blackmagic URSA Cine Handle is required for mounting to Blackmagic URSA Cine and Blackmagic PYXIS 6K cameras. Blackmagic URSA Cine EVF Extension compatible with standard extended viewfinder supports.

Metadata Support: Displays and sends camera data and settings over USB to Blackmagic URSA Cine and Blackmagic PYXIS 6K cameras.



Operating Systems

Mac 13.0 Ventura,
Mac 14.0 Sonoma or later.

Windows 10 and 11.



Power Requirements

Powered over USB-C.



Environmental Specifications

Operating Temperature: 0° to 40° C (32° to 104° F)

Storage Temperature: -20° to 60° C (-4° to 140° F)

Relative Humidity: 0% to 90% non-condensing



What's Included

Blackmagic URSA Cine EVF

Blackmagic URSA Cine EVF Rotating bracket with 19mm carbon fibre rod

Blackmagic URSA Cine EVF Bracket rod mount

Blackmagic URSA Cine EVF Extension

2 short carbon fibre 15mm rods

1 short right angle to right angle USB Viewfinder cable

1 short right angle to straight USB Viewfinder cable

1 long right angle to straight USB Viewfinder cable

Rubber eyecup

Fabric eye chamois

Blackmagic Sticker

Welcome wallet with QR code for software download

Weight 4.00 kg
Dimensions 50.00 × 50.00 × 50.00 cm
