Blackmagic Design DeckLink Studio 4K Capture & Playback Card – BDLKSTUDIO4K

3 Years Official Blackmagic Design Malaysia Warranty

**************************************************************

Blackmagic Design DeckLink Studio 4K Capture & Playback Card – BDLKSTUDIO4K





Key Features:

• 6G-SDI Input/Output

• 4K HDMI Input/Output

• PCIe Interface

• Supports SD, HD, 2K, and 4K Formats

• UHD / DCI 4K 4:2:2 via 6G-SDI or HDMI

• 1080p 4:4:4 by Single-Link 3G-SDI

• Analog I/O via Breakout Cable

• Genlock, RS-422, SD/HD Keyer

• Down/Up/Cross Conversions

• Mac OS X, Windows, and Linux Compatbile

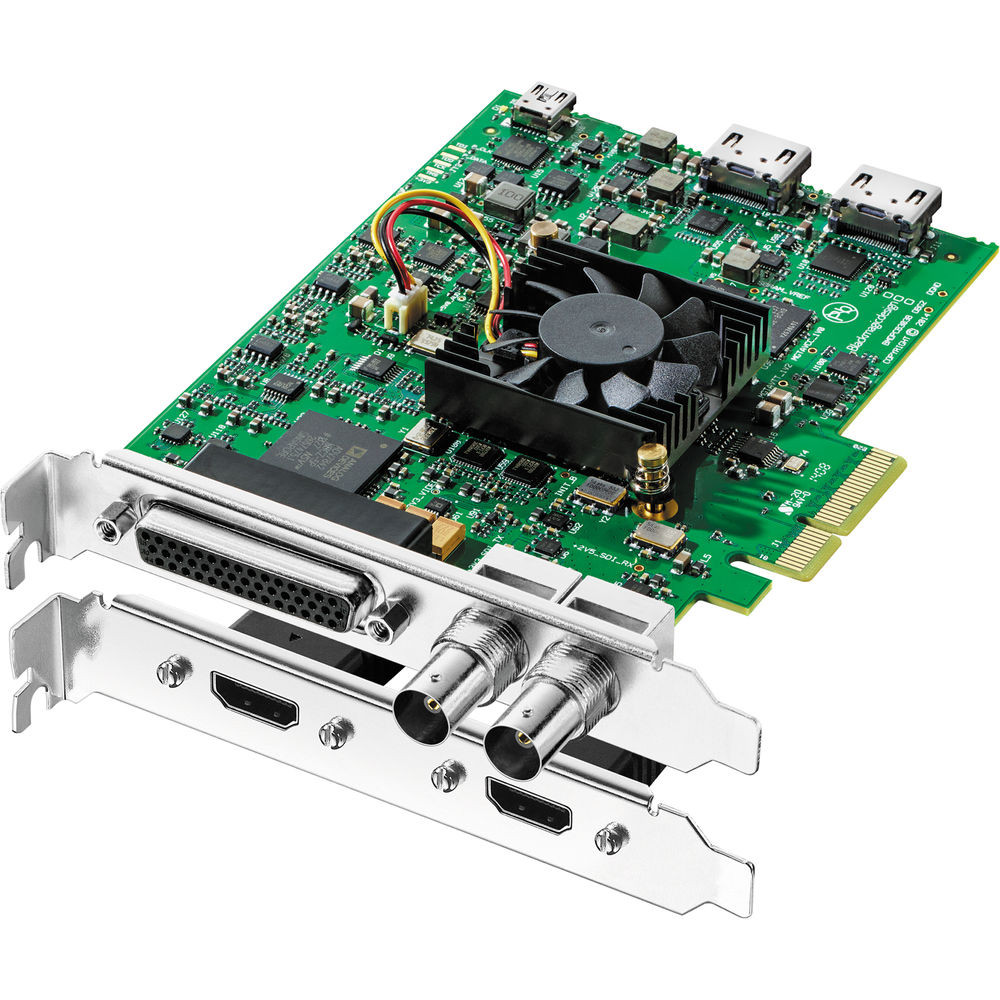

The DeckLink Studio 4K Capture & Playback Card from Blackmagic Design features 6G-SDI and 4K HDMI inputs/outputs which support resolutions from SD to Ultra HD 4K (3840×2160) and DCI 4K (4096×2160). Additionally, the DeckLink Studio 4K offers a wide range of video and audio connections via an included breakout cable. These connections consist of analog component, S-Video, composite video, two channels of AES/EBU audio, and four channels of balanced analog audio. The card also provides RS-422 deck control, a reference input, and a down converted SD output.




Product Highlights:

• PCIe capture/playback card compatible with Mac, Windows, and Linux based workstations and servers

• Multi-rate SDI and HDMI connections accept SD, HD, 2K, and 4K resolutions

• 10-bit, 4:2:2 UHD 4K or DCI 4K by single-link 6G-SDI

• 10-bit, 4:4:4 1080p by single-link 6G-SDI

• 8-bit RBG / 10-bit YUV HDMI output

• HD to SD down-conversion

• SD to HD up-conversion

• Hardware cross conversion between 720p and 1080p on playback

• RS-422 deck control

• Internal SD keying

• Reference input

• Blackburst and tri-sync

• Supports 16 channels of embedded SDI and 8 channels of embedded HDMI audio in HD, 2K, and 4K resolutions (8 channels of embedded SDI audio in SD)
