3 Years Official Blackmagic Design Malaysia Warranty
**************************************************************

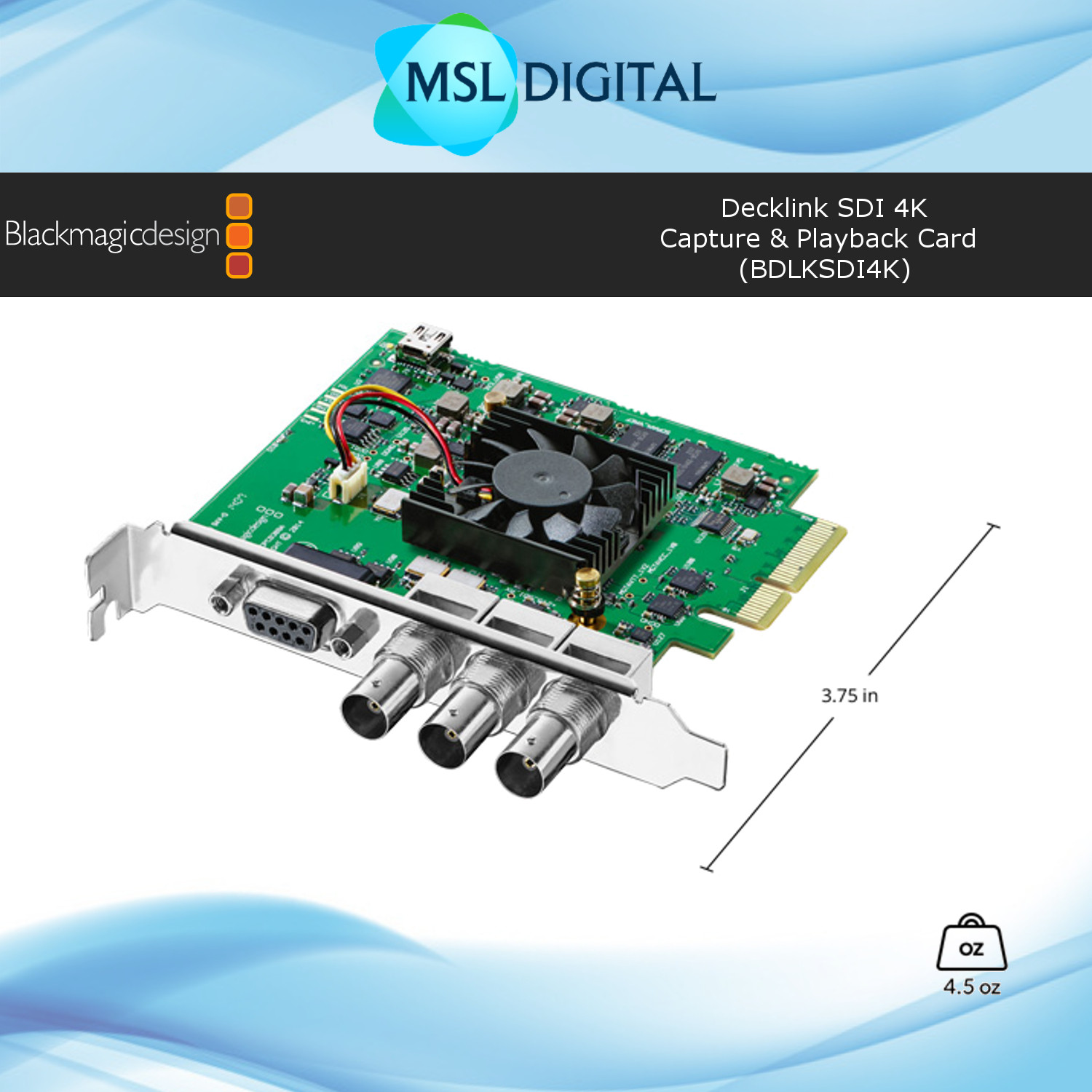

Blackmagic Design Decklink SDI 4K Capture & Playback Card – BDLKSDI4K
Key Features:
-
SD/HD/3G/6G-SDI Input/Output
-
PCIe Interface
-
UHD / DCI 4K 4:2:2 by Single-Link 6G-SDI
-
1080p 4:4:4 by Single-Link 3G-SDI
-
10-Bit Processing
-
RS-422 Deck Control
-
Internal Keying
-
Reference Input
-
Down/Up/Cross Conversions
-
Mac OS X, Windows, and Linux Compatible
The Decklink SDI 4K Capture & Playback Card from Blackmagic Design features a single multi-rate SDI input and multi-rate SDI output. These multi-rate connections accept single-link SD, HD, 3G, and 6G-SDI signals, providing support for resolutions from SD to Ultra HD 4K (3840×2160) and DCI 4K (4096×2160). Additionally, the Decklink SDI 4K includes RS-422 deck control, internal keying, and a reference input.
Product Highlights:
-
PCIe capture/playback card compatible with Mac, Windows, and Linux based workstations and servers
-
10-bit, 4:2:2 UHD 4K or DCI 4K by single-link 6G-SDI
-
10-bit, 4:4:4 1080p by single-link 6G-SDI
-
HD to SD down-conversion
-
SD to HD up-conversion
-
Hardware cross conversion between 720p and 1080p on playback
-
RS-422 deck control
-
Internal keying
-
Reference input
-
Blackburst and tri-sync
-
Supports 16 channels of embedded SDI audio in HD, 2K, and 4K resolutions; 8 channels in SD
In the Box:
-
Blackmagic Design Decklink SDI 4K Capture & Playback Card
-
SD Card with Support Software/Drivers
