Blackmagic Design DeckLink 4K Extreme 12G Capture & Playback Card – BDLKHDEXTR4K12G

3 Years Official Blackmagic Malaysia Warranty

*****************************************************

Blackmagic Design DeckLink 4K Extreme 12G Capture & Playback Card – BDLKHDEXTR4K12G

Product Highlights:

• 8-Lane PCIe Gen2 I/O Card

• Multi-Rate 12G-SDI & HDMI Connections

• Supports UHD 4K & DCI 4K up to 60 fps

• Single & Dual-Link 4:4:4:4/4:2:2 Signals

• 3D Stereoscopic SDI Output at 4:4:4:4

• Up/Down/Cross Conversion

• Optional Optical Fiber I/O Modules

• Breakout Cable for Analog / RS-422

• Genlock & Deck Control

• Compatible with Mac, Windows & Linux

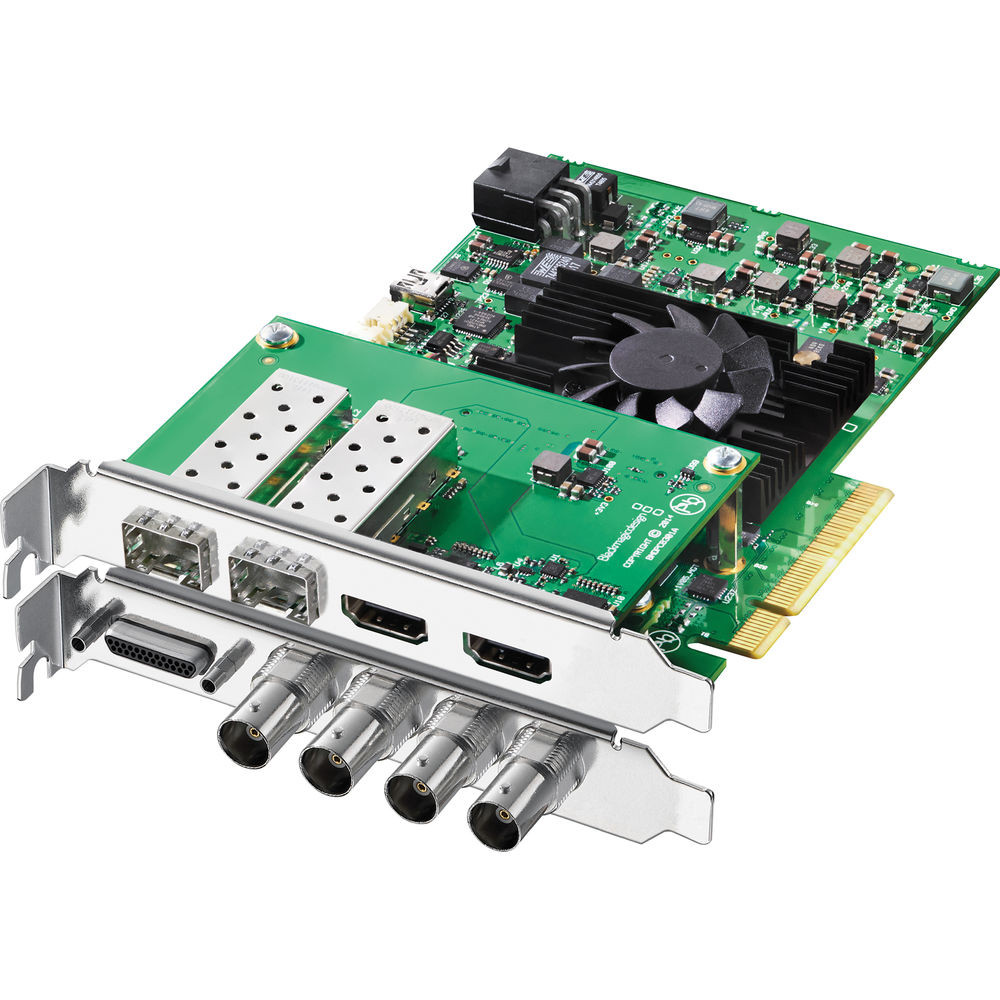

The Blackmagic Design DeckLink 4K Extreme 12G is an 8-lane PCIe Gen2 digital cinema capture and playback card with two multi-rate 12G-SDI inputs and outputs that accept resolutions from SD up to DCI 4K (4096 x 2160) at 60 fps. The card supports 10-bit YUV and 8-, 10-, and 12-bit RGB color, as well as up/down/cross conversions and 3D stereoscopic output at full bandwidth 4:4:4:4 RGB. The DeckLink 4K Extreme 12G features a mezzanine card design that has 4K HDMI input and output connectors on a second daughter card, along with connections for adding two optional optical fiber modules for Dual Link optical fiber SDI input and output. The card also supports AES/EBU balanced XLR and unbalanced RCA inputs/outputs, analog video I/O, reference input, and RS-422 control via an included breakout cable.
