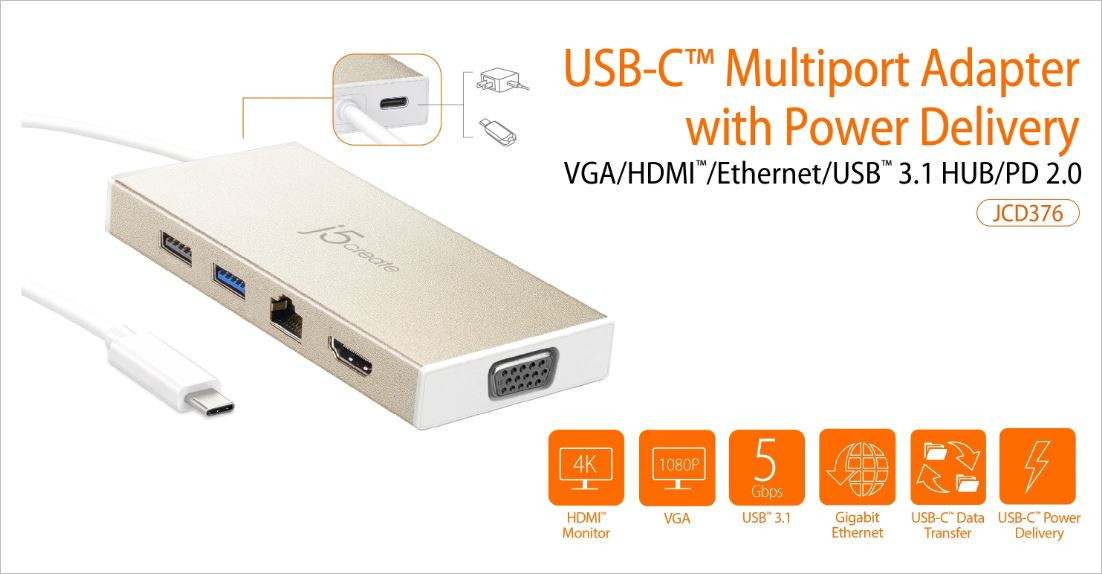

J5create JCD376 USB-C™ Multiport Adapter with Power Delivery

This USB-C 3.1 mini docking station converts your laptop’s USB-C port into six individual ports, allowing you to create a workstation when you are on the move! Now you can leave those single-function adapters at home.

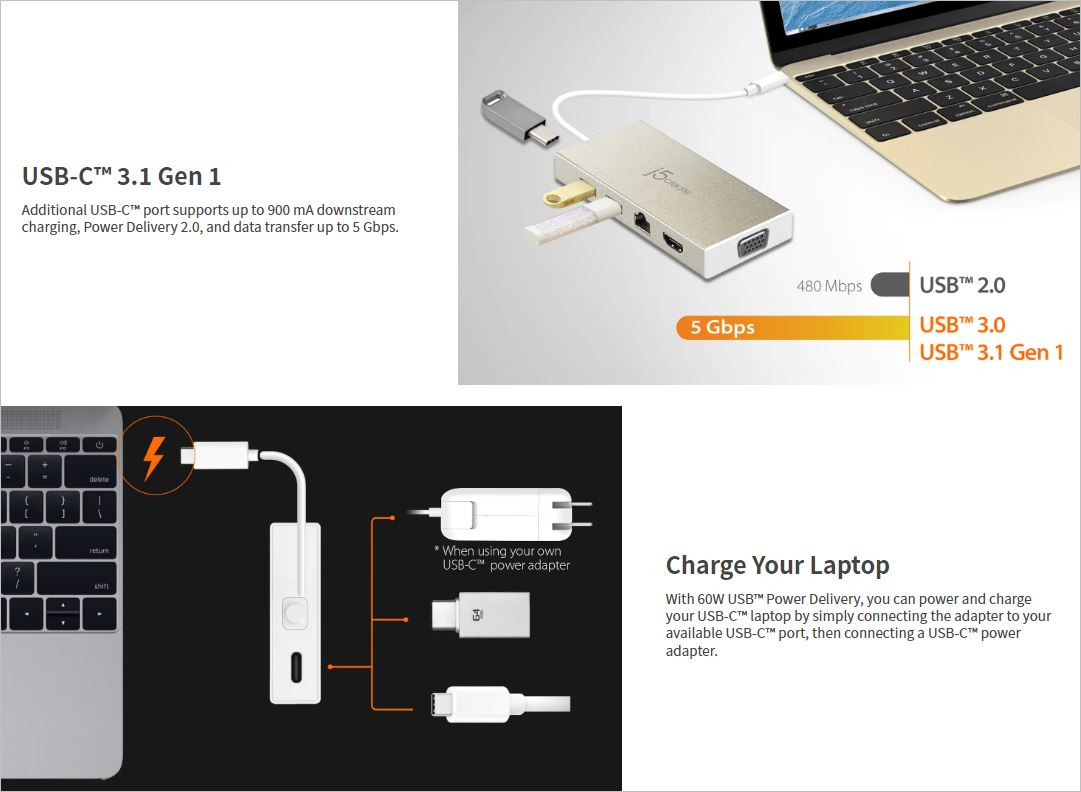

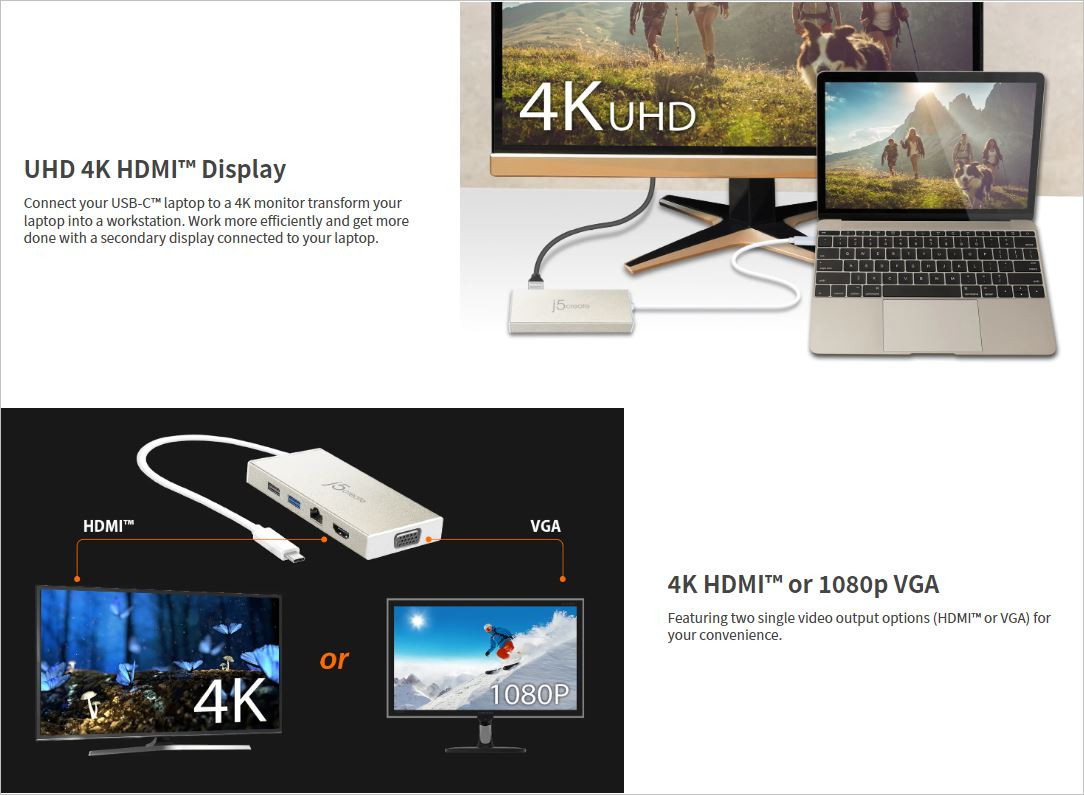

The mini dock features an HDMI and VGA port so you can easily connect a 4K HDMI or a 1080p VGA monitor. It also adds wired network connectivity with an ethernet port and two USB Type-A ports for additional peripherals. With USB
Power Delivery 2.0, you can power and charge your laptop while using the mini dock by simply connecting a USB-C power adapter to the USB-C power delivery port.
The JCD376 is perfect for small workspaces, home offices and for on-the-go!

SYSTEM REQUIREMENTS
• Available USB-C port that supports DisplayPort alt mode and USB Power Delivery 2.0 (USB 3.1 is
recommended). Please refer to the manufacturer of your hardware for more information on your device.
• Required graphics card:
– DisplayPort 1.2 is required to achieve 4K resolution @ 30 Hz
– DisplayPort 1.1 is required to achieve 1920 x 1200 resolution @ 60 Hz

HARDWARE
Warranty: 2-Year Limited
Host Connector: USB-CTM 3.1 Gen 1 Male
Video Output:
1 – HDMITM Female
1 – VGA Female
Power Source: Bus-powered or self-powered
Network Interface: RJ45 (Gigabit Ethernet)
Audio Supported: Yes

Ports
1 – HDMITM
1 – VGA
1 – USB-C 3.1 Gen 1 with PD 2.0
1 – USB 3.0 Type-A
1 – USB 2.0 Type-A
1 – RJ45 Gigabit Ethernet

PERFORMANCE
Maximum Display Resolution: HDMI: 3840 x 2160, VGA: 1920 x 1080
Maximum Display Refresh Rate: HDMI @ 30 Hz, VGA @ 60 Hz
Maximum Data Transfer Rate: 5 Gbps
Displays Supported: 1 (HDMI or VGA)
Compatible Networks: 10/100/1000 Mbps
Audio Channel: 2.1 via HDMI

POWER
Power Delivery: Up to 60W via USB-CTM
Power Consumption: ≤ 500 mA
Input Voltage: Up to 20V
Input Current: Up to 3A
Output Voltage: Up to 20V
Output Current: Up to 3A

PHYSICAL SPECIFICATIONS
Color: Champagne Metallic
Enclosure Type: Aluminum
Cable Length: 7.87 in. (200 mm)
Product Height: 4.53 in. (115 mm)
Product Width: 2.1 in. (53.3 mm)
Product Depth: 0.6 in. (15.2 mm)
Product Weight: 3.35 oz (95g)
Storage Temperature: 14 to 149°F (-10 to 65°C)
Storage Humidity: < 85% non-condensing
Operating Temperature: 32 to 104°F (0 to 40°C)
Operating Humidity: < 85% non-condensing
