Blackmagic Design MultiView 16 | Supports SD, HD, Ultra HD 4K, DCI 4K | Ethernet for Remote Control

1-Year Official Warranty by Blackmagic Design Malaysia

****************************************************************

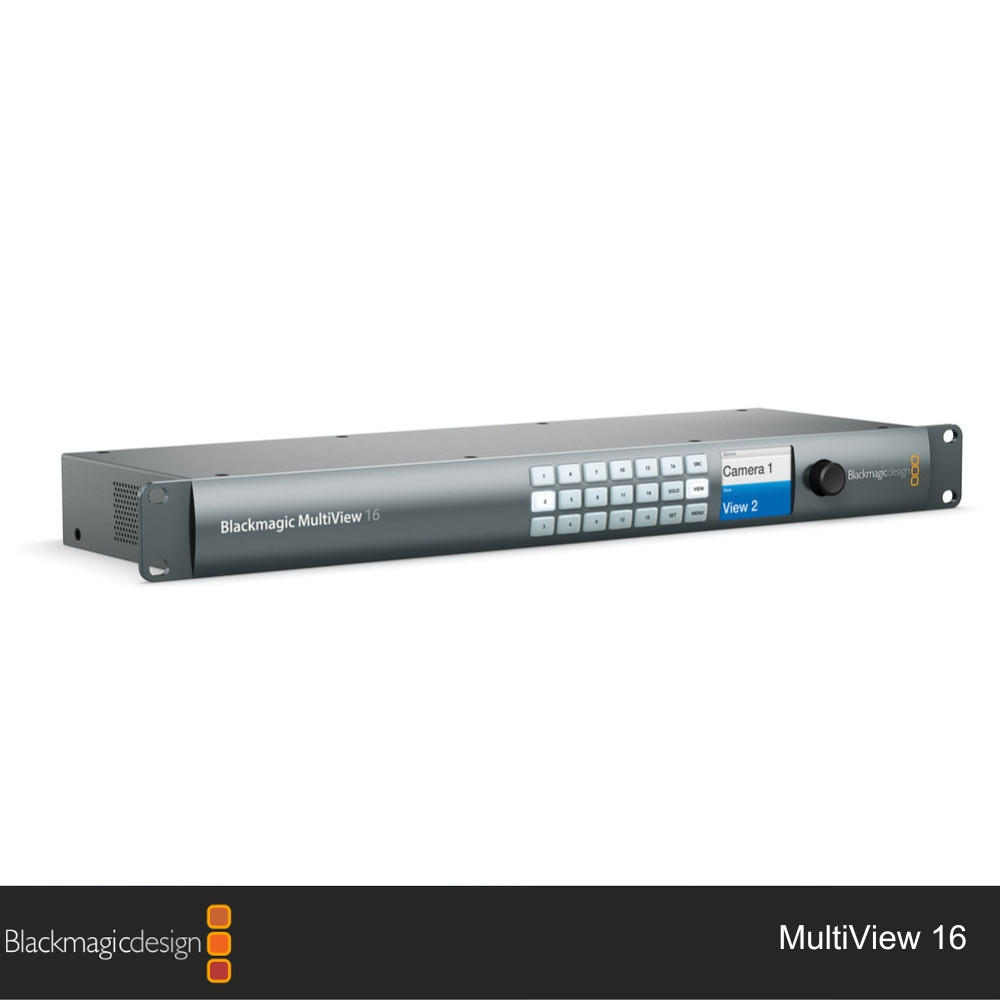

Blackmagic Design MultiView 16

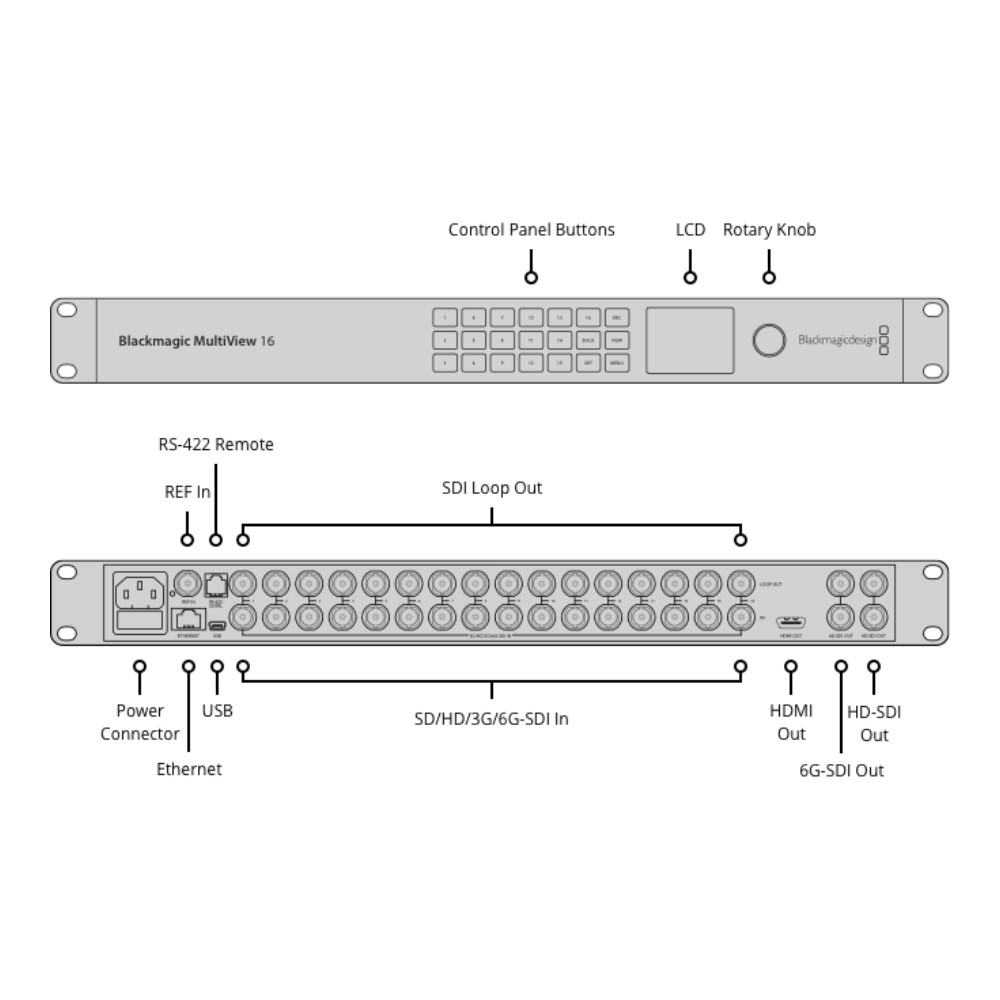

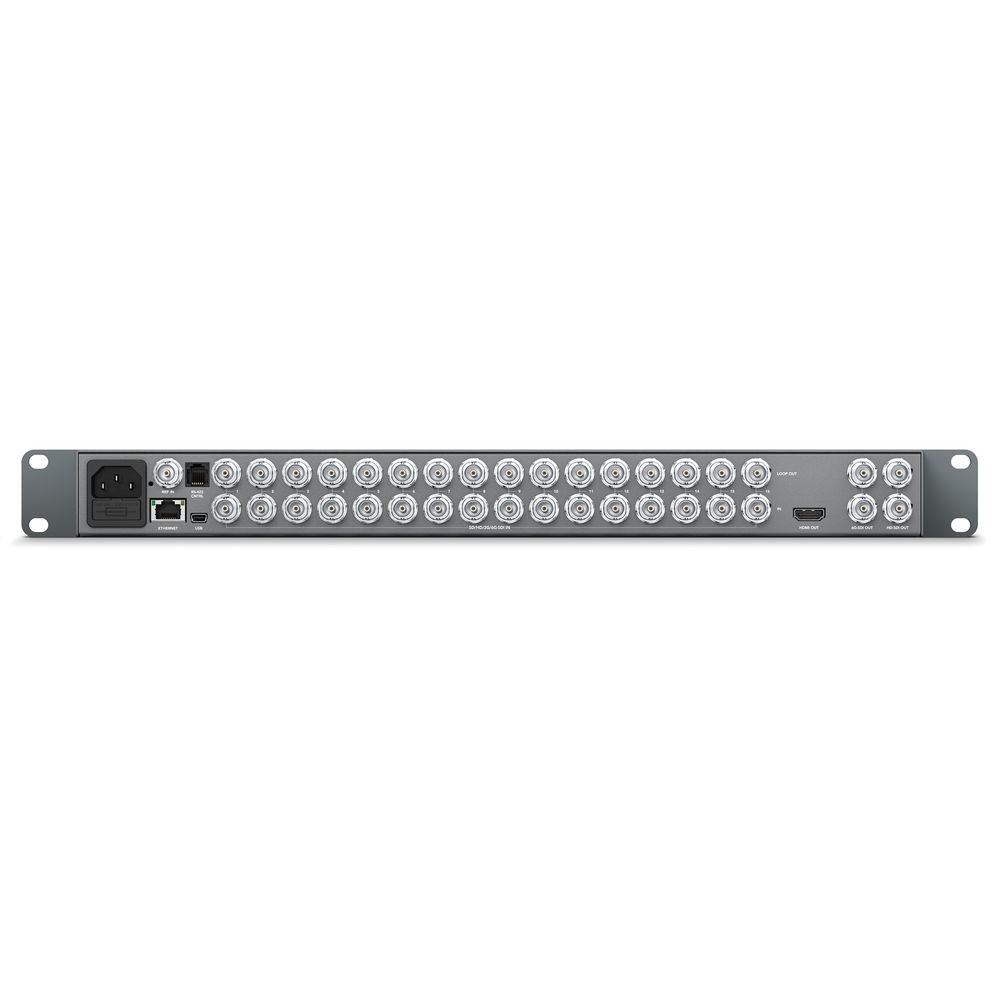

The Blackmagic Design MultiView 16 features sixteen 10-bit 6G-SDI inputs that let you monitor SD, HD, or 4K sources in any combination on Ultra HD monitors or TVs. This lets you take advantage of the high-resolution displays to view each source with increased clarity. The MultiView 16 allows for 4, 9, or 19 views to be selected, with each input fully re-synchronized. Two HD-SDI, two 6G-SDI, and one HDMI multi-view outputs are provided as well as a loop output for each 6G-SDI input for passing the signals to additional devices.

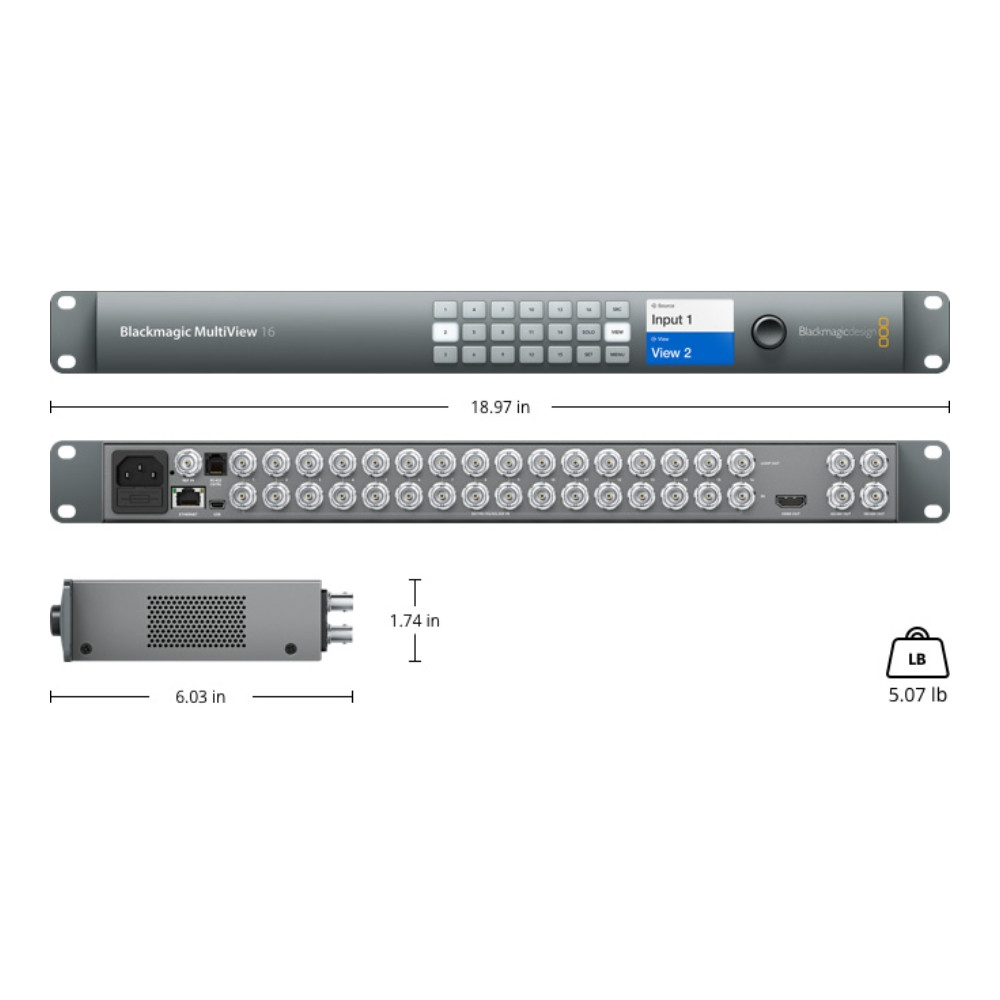

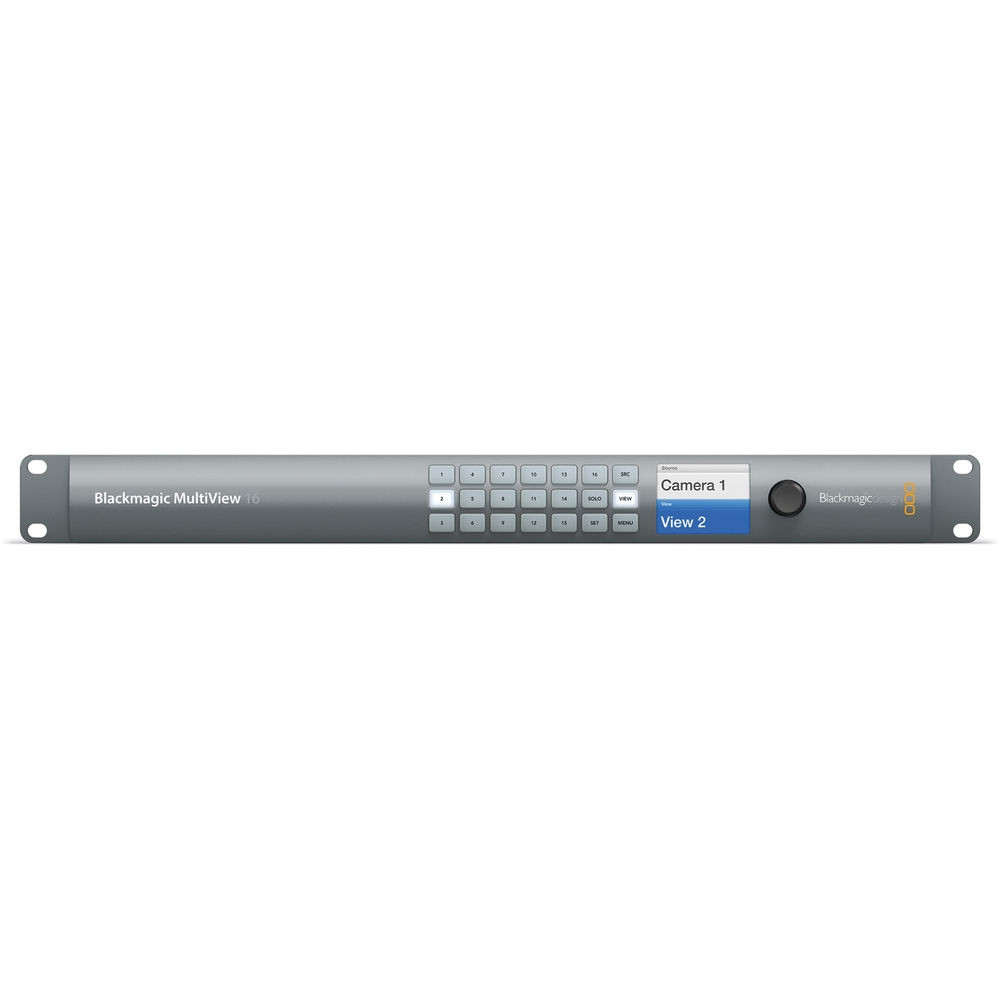

Housed in a 1 RU machined aluminum frame, the MultiView 16 is ready for use in the studio, broadcast truck, or even on location. It can be controlled using the illuminated buttons, spin knob, and 1.5" LCD screen on the front panel, or with the included control software via the Ethernet port. A SOLO button lets instantly full screen a single source. For easy integration into any facility, a built-in multi-voltage power supply supports 100 to 240 VAC.

Up to 16 Views

• Supports up to 16 views on an HD or UHD monitor

• Mix SD, HD, and UHD 4K sources on the same display

• 2 x 2, 3 x 3, or 4 x 4 grids

Re-Syncing

SDI inputs automatically detect and re-sync SD, HD, and UHD 4K30

Monitoring Tools

• Customize your display with labels, audio meters, tally indicators, and more

• Choose which audio source is routed to the video output

SD Anamorphic

Anamorphic support in SD enables you to view 16×9 anamorphic sources in widescreen
