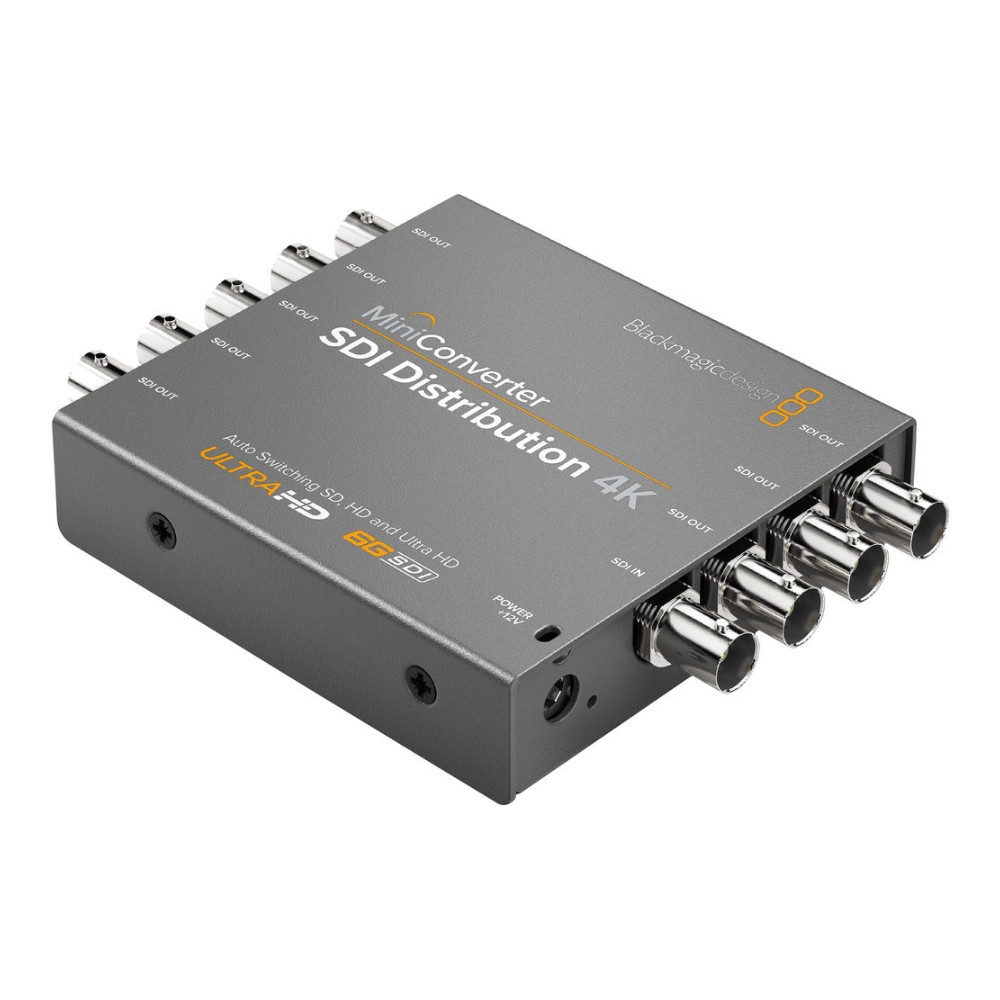

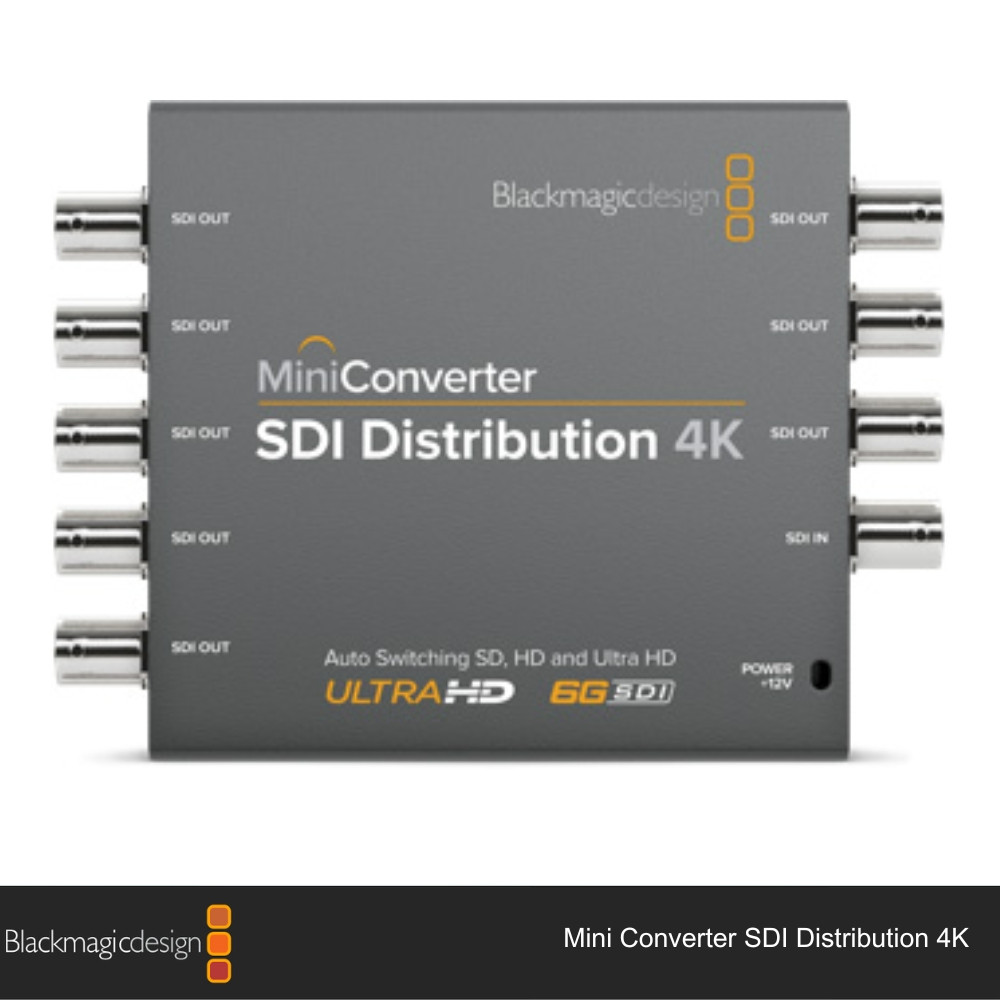

Blackmagic Design Mini Converter SDI Distribution 4K

RM1,789.00

  • Single Link SD/HD/3G/6G-SDI Input

  • 8x Single Link SD/HD/3G/6G-SDI Outputs

  • Re-Clocked Outputs

  • Supports SD, HD, UHD 4K & DCI 4K Signals

  • Automatic Input Signal Detection

  • Ancillary Data & Embedded Audio

  • Supports ASI Signals

  • Control via DIP Switches or Software

  • USB 2.0 Port for Firmware Updates

  • 12V Universal Power Supply Included

10 in stock

SKU: CONVMSDIDA4K Category: Tag:

3-Years Official Warranty by Blackmagic Design Malaysia

*****************************************************************

Blackmagic Design Mini Converter SDI Distribution 4K

The Mini Converter SDI Distribution 4K from Blackmagic Design allows you to distribute a Single Link SD/HD/3G/6G-SDI signal to eight SDI devices simultaneously. It automatically detects the input signal type, re-clocks it, and its eight outputs automatically match the SDI input video format. With a compact form factor and easy-to-use controls, the Mini Converter is ideal for a variety of broadcast, post production, and professional AV applications.

Using 6G-SDI technology, the Mini Converter supports resolutions up to Ultra HD 4K (3840 x 2160) at up to 30 fps and DCI 4K (4096 x 2160) at 24 fps, as well as SD, HD, and 3G-SDI signals. It supports all SDI-related transmission features, including embedded audio, ancillary data, and even handles ASI signals – asynchronous signals that carry multiple compressed programs that can be at varying transmission speeds. The Mini Converter's settings are controlled using the built-in DIP switches or via USB using the included software for Max OS X or Windows computers. The USB port also enables the firmware to be updated. For powering the device, a 12V power supply is included with international socket adapters.



Additional Features

  • 4:2:2 and 4:4:4 sampling and color precision

  • 24-bit, 48 kHz audio sampling

  • Compliant with SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, and SMPTE 425M standards



Key Features

  • Single Link SD/HD/3G/6G-SDI Input

  • 8x Single Link SD/HD/3G/6G-SDI Outputs

  • Re-Clocked Outputs

  • Supports SD, HD, UHD 4K & DCI 4K Signals

  • Automatic Input Signal Detection

  • Ancillary Data & Embedded Audio

  • Supports ASI Signals

  • Control via DIP Switches or Software

  • USB 2.0 Port for Firmware Updates

  • 12V Universal Power Supply Included



In the Box

  • Blackmagic Design Mini Converter SDI Distribution 4K

  • Software CD-ROM

  • 12V Power Supply with International Socket Adapters

  • Limited 3-Year Manufacturer Warranty

Weight0.90 kg
Dimensions20.00 × 19.00 × 12.00 cm
